Chapter 3 Element Function|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

3-11

Property Description of Set Constant Buttons

Picture Bank Name
Picture Name

(Please refer to Table 3.2.2 Property Description of General Buttons.)

Transparent Effect
Transparent Color

(Please refer to Table 3.2.2 Property Description of General Buttons.)

Foreground Color
Style

(Please refer to Table 3.2.2 Property Description of General Buttons.)

Trigger
Trigger Mode

The user can use this setting to trigger the designated controller address to be ON
before or after writing the setting value. Please note that this function can only
trigger the controller address to be ON. If the controller address needs to be
triggered again, the user should set the address to be OFF manually.

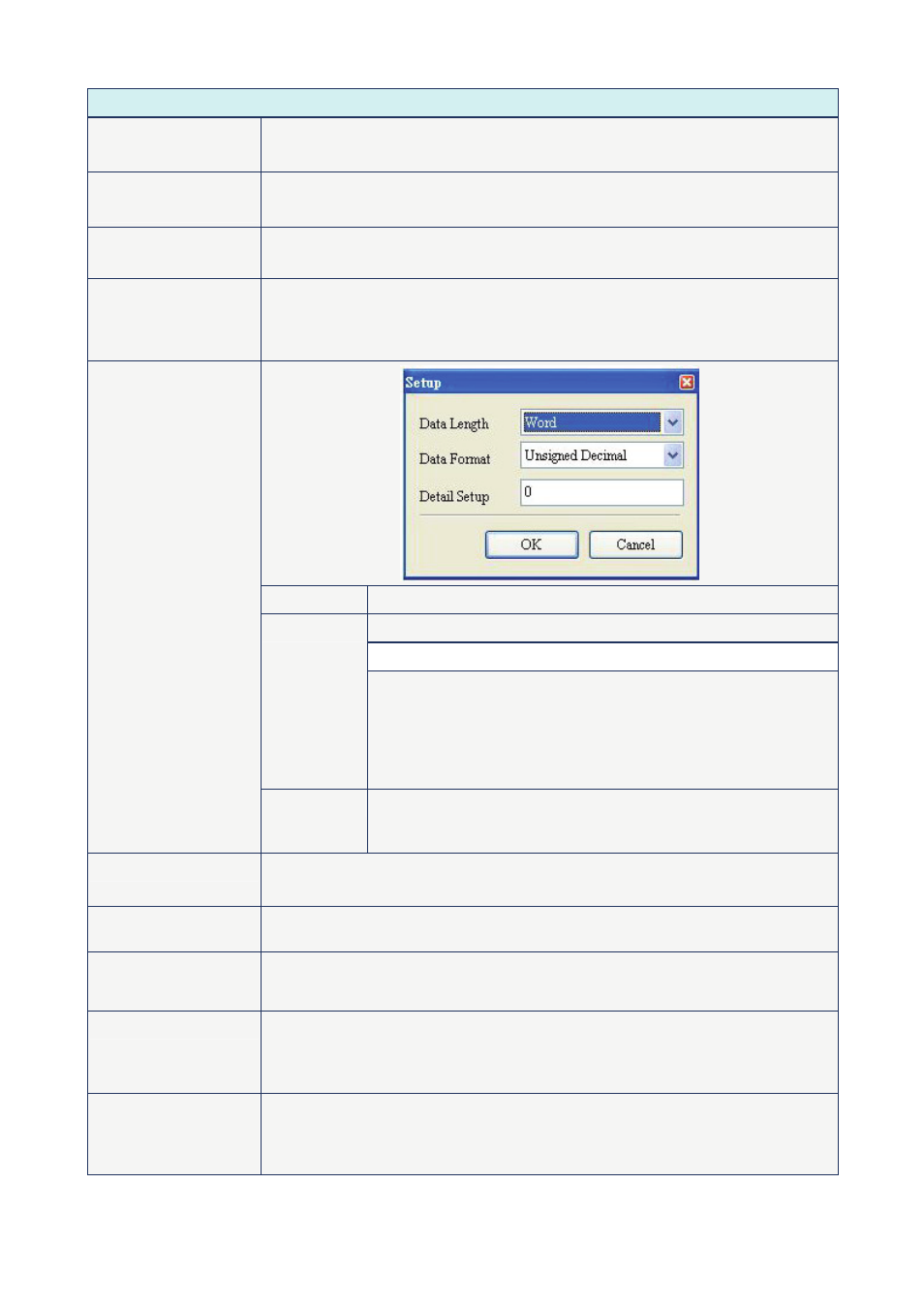

Data Length

There are 16bits Word and 32bits Double Word two options.

There are following data format provided:

Word/Double Word

Data Format

1. BCD
2. Signed

BCD

3. Signed

Decimal

4. Unsigned

Decimal

5. Hex

Detail Range Setup

Value

It is used to enter the constant value that the user wants to write.
After pressing OK button, HMI will examine the value by referring to
the selected data length and data format.

User Security Level

Use this option to set the user priority for pressing this element. Only the priority
that is equal to or higher than the current setting can use this element.

Set Low Security

Use this option to force the current priority to be the lowest after the button is
pressed. This can prevent the misoperation made by the user (operator).

InterLock Address
InterLock Level

When InterLock Address is set to be ON or OFF (this is determined by the property
of “InterLock Level”), this button can be enabled.

Before Execute Macro If this option is set, when the user presses the button, the system will execute the

command of this macro first and then perform the operation of this button. But, if
the state of the button is not triggered by pressing the button (via macro or external
signal), the command of this macro will not be executed.

After Execute Macro

If this option is set, when the user presses the button, the system will perform the
operation of this button first and then execute the command of this macro. But, if
the state of the button is not triggered by pressing the button (via macro or external
signal), the command of this macro will not be executed.
