Chapter 3 Element Function|ScrEdit Software User Manual

3-52

Revision Apr. 30th, 2007, 2007PDD23000002

3.11 Curve Element

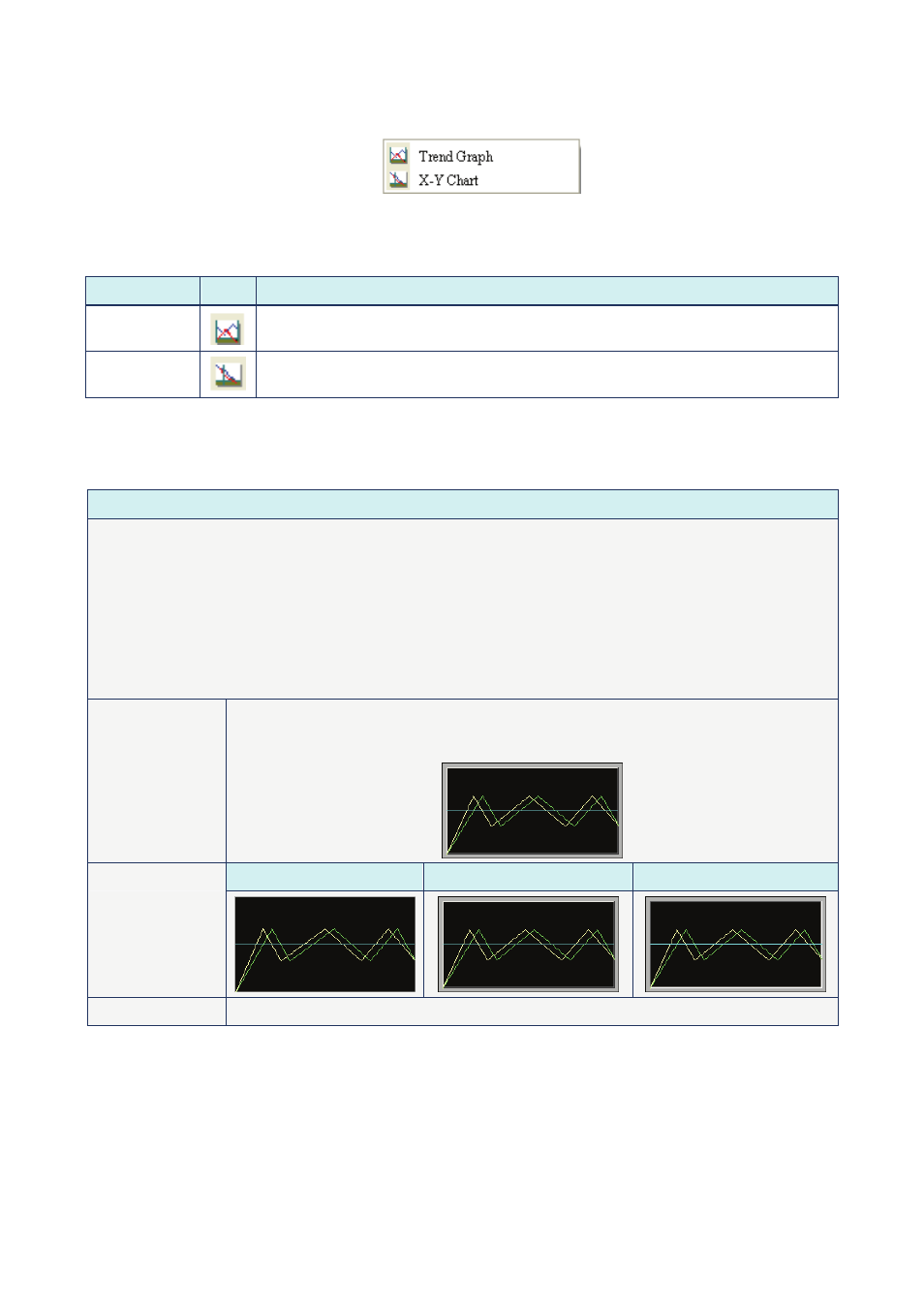

Fig. 3.11.1 Curve element options

Table 3.11.1 Function of Curve elements

Element Type Icon

Function

Trend Graph

It is used to display the value change of the read address by trend graph. The trend
graph can display and set the change of Y-axis.

X-Y Chart

It is used to display the value change of the read address by trend graph. The trend
graph can display and set the change of X-axis and Y-axis simultaneously.

„

Trend Graph

Table 3.11.2 Property Description of Trend Graph Element

Property Description of Trend Graph Element

The first step for setting trend graph is to set the curve number in “Curve Field Total” option (range is 1~4) in
property table. Then, setting the read address, read format, curve width and color in “Detail Setup” option to
complete the setup.
The trend graph will continuously read numbers of addresses from the read address set by the user, convert
the read data into trend graph and display on HMI screen. The numbers of the addresses is determined by
the setting of “Sample Number”.
This function is used to read the values of the internal memory addresses and display on HMI screen
statically. After setting, the user needs to set the specific address of the control block to trigger the drawing
and clear operation of the trend graph. For the settings of the control block, please refer to Chapter 5.

Border Color
Background Color

Border Color option can be set only when the style of the trend graph element is
selected as Raised and Sunken. The style of the element below is selected as “Raised”.
Its background color is set to black and its border color is set to gray.

Standard

Raised

Sunken

Style

Curve Field Total 1~4 curves can be set and displayed.
