Chapter 4 Macro Function|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

4-7

4.2 Macro

Editing

After choosing the desired Macro command from menu bar, the user can start editing Macro as shown as Fig.

4.2.1 below. The Macro command dialog box will pop up when

is clicked. For the user’s convenience,

the user can enter macro command in Marco Command Window or input macro command in Edit Window

directly.

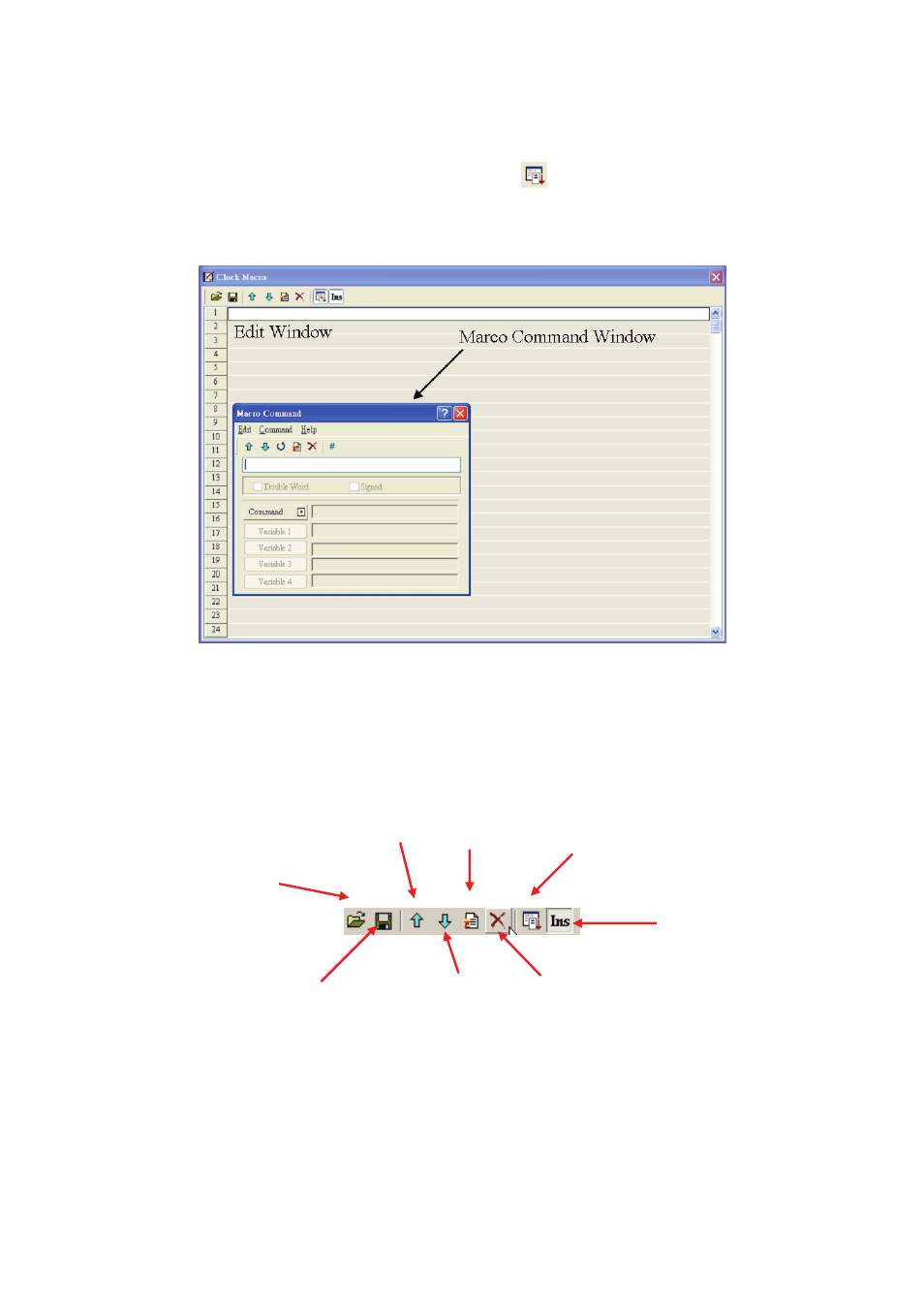

Fig. 4.2.1 Start editing Macro

The user can also use the icons on the toolbars (Fig. 4.2.2) for Macro editing.

Refer to Fig. 4.2.3, 512 lines (from 1 to 512) are available for editing Macro. Blank line in the program means

that line will be set to comment line after updating as shown in Fig. 4-2-4.

Fig. 4.2.2 Toolbar

Open old

Macro files

Save Macro files

To previous line

Macro command

dialog box

Insert / Replace

To next line

Insert a line

Delete a line
