Chapter 3 Element Function|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

3-3

3.2 Button

Element

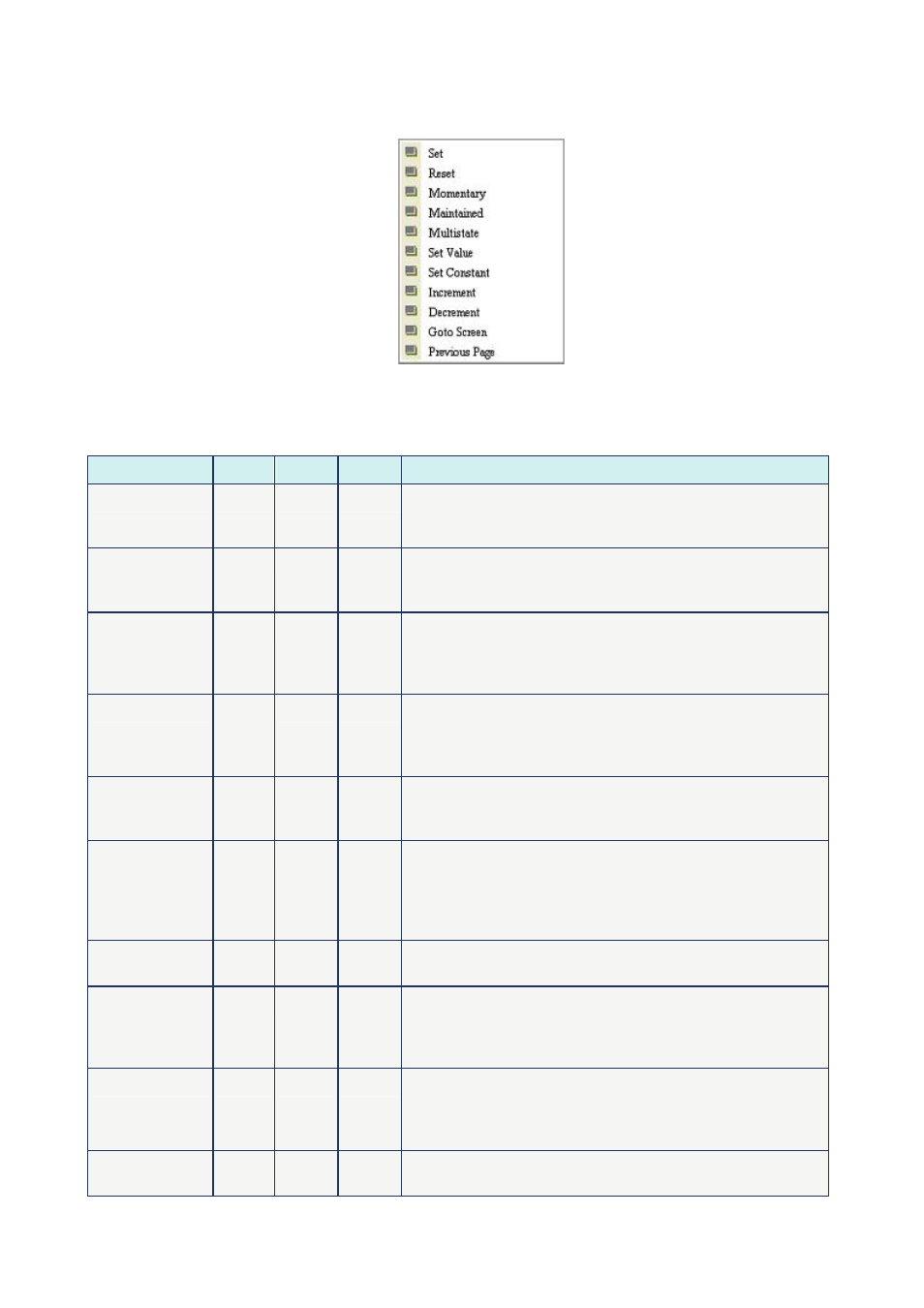

Fig. 3.2.1 Button element options

Table 3.2.1 Button elements

Button Type

Macro Read

Write

Function

Set

ON

Yes

Yes After pressing this button, the state of the setting address

(Bit) will always be set to ON. If there is an ON Macro, it will
be executed simultaneously.

Reset

OFF

Yes

Yes After pressing this button, the state of the setting address

(Bit) will always be set to OFF. If there is an OFF Macro, it
will be executed simultaneously.

Maintained

ON

OFF

Yes

Yes After pressing this button, the state of the setting address

(Bit) will be set to ON and be OFF when releasing the button.
If there is an ON or OFF Macro, it will be executed
simultaneously.

Momentary

ON

OFF

Yes

Yes After pressing this button, the state of the setting address

(Bit) will be set to ON and execute ON Macro at the same
time. When pressing the button again, the state of the setting
address will be OFF and execute OFF Macro simultaneously.

Multistate

No

Yes

Yes There are 1~256 user-defined multi-states for setting. The

user can set the execution sequence to the next state or the
previous state.

Set Value

No

No

Yes After pressing this button, the “Numeric keypad” dialog box

will pop up on HMI screen for the user to input the setting
value directly. After inputting the setting value and pressing
ENTER key, HMI will transmit the input value to the setting
address.

Set Constant

No

No

Yes After pressing this button, HMI will write the specific value

into the setting address.

Increment

No

Yes

Yes After pressing this button, HMI will add up the value

contained within the setting address and the setting constant
value, and store the addition result back into the setting
address.

Decrement

No

Yes

Yes After pressing this button, HMI will subtract the setting

constant value from the value contained within the setting
address, and store the subtraction result back to the setting
address.

Goto Screen

No

No

No

After pressing this button, it will switch to the screen that the
user designated.
