Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-83

Fig. 2.8.32

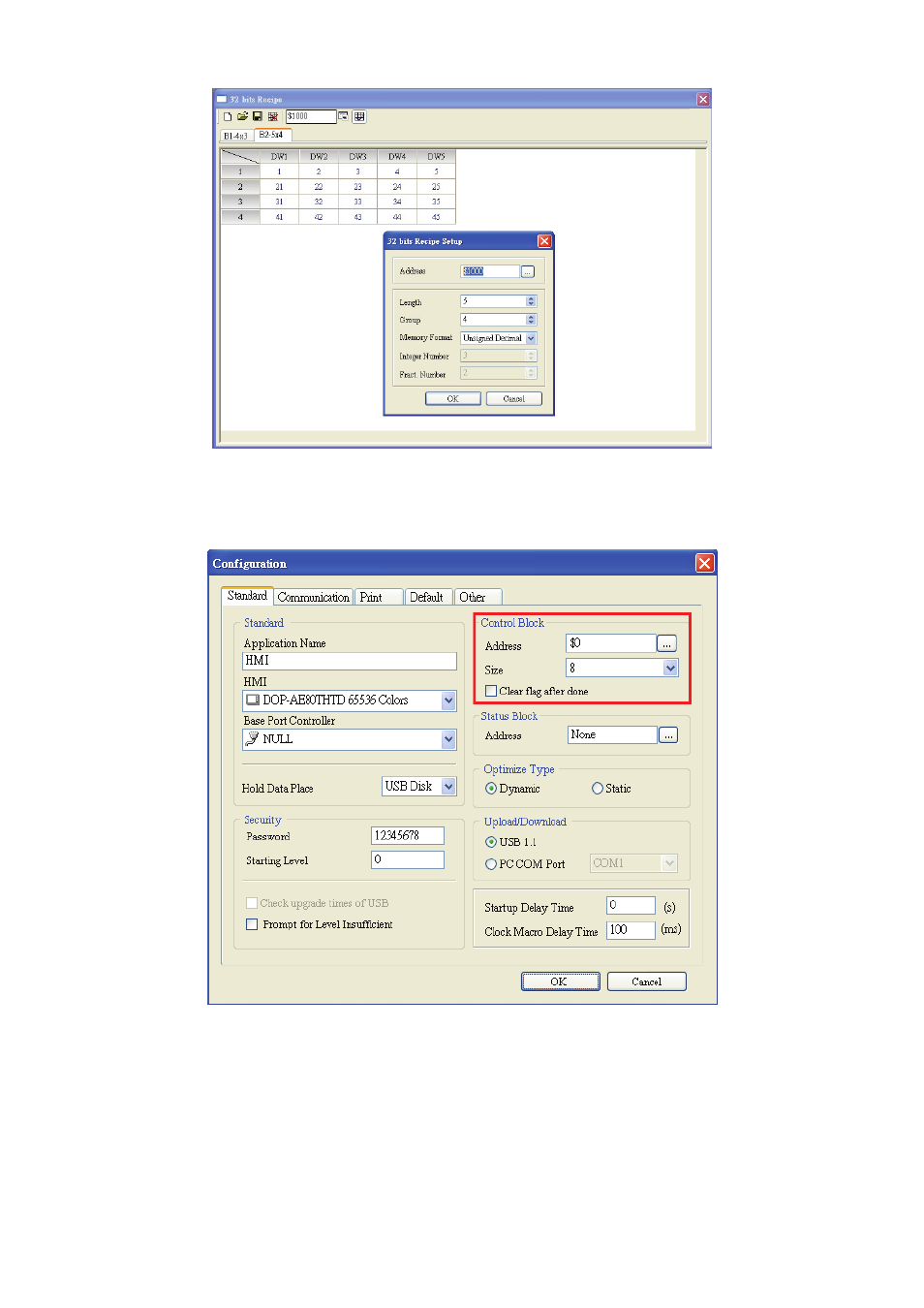

In order to perform simulation operation more conveniently, the Address of Control Block is set to

Internal Memory $0. Please refer to Fig. 2.8.33 shown below.

Fig. 2.8.33

Fig. 2.8.34 is an example of starting screen. Besides using internal memory address (RCPG and

RCPNO), the user also can enter into Configuration dialog box and change the address value of recipe

register directly. No matter what kind of method is chosen, the user still needs to execute recipe read

and write operation via Control Block. Pressing Internal Memory button is to switch the recipe data by

using internal memory address and pressing Control Block button is to switch the recipe data through

the settings of the Control Block.
