Chapter 3 Element Function|ScrEdit Software User Manual

3-24

Revision Apr. 30th, 2007, 2007PDD23000002

3.5 Pipe

Element

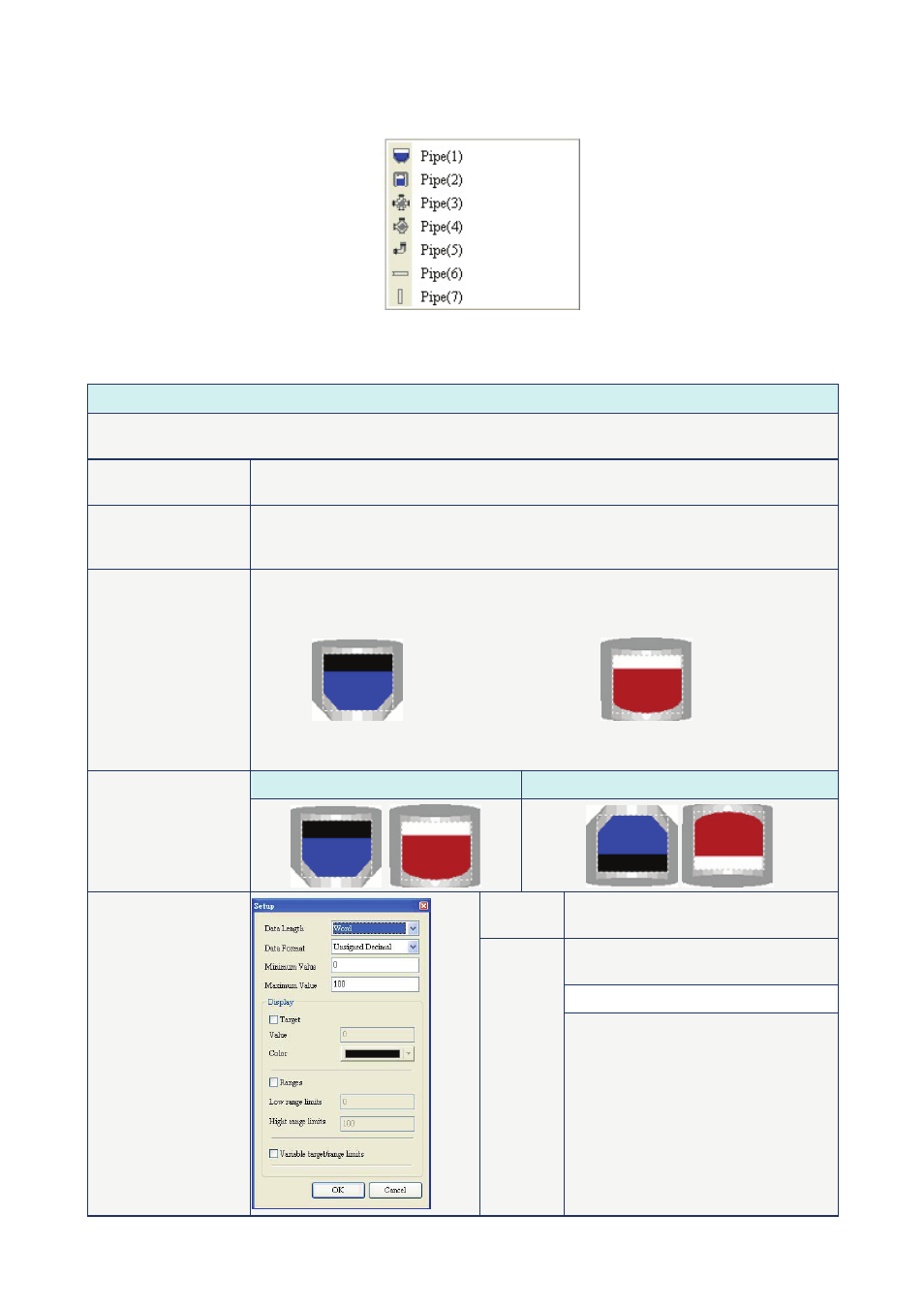

Fig. 3.5.1 Pipe element options

Table 3.5.1 Property Description of Pipe Element

Property Description of Pipe (1) / Pipe (2) Element

HMI reads the value of the corresponding address (register). Then, convert the value to Pipe (1) / Pipe (2)
element and then display it on the screen.

Read Address

The address can be internal memory or the controller address. (Please refer to Table
3.2.2 Property Description of General Buttons.)

Text / Text Size
Font / Text Color

The user can set the text, text size, font and text color that provided by Windows®
to determine the text display on the element. (Please refer to Table 3.2.2 Property
Description of General Buttons.)

WaterMark Color
Inside Tube Color

It is used to set the watermark color and inside tube color of Pipe (1) and Pipe (2)
element.

Pipe (1) Element Pipe (2) Element

The watermark color is in blue. The watermark color is in red.
The inside tube color is in black. The inside tube color is in white.

Standard

Rotation 180

Style

Data
Length

There are 16bits Word and 32bits
Double Word two options.

There are following data format
provided:

Word/Double Word

Detail Setup

Data
Format

1. BCD
2. Signed

BCD

3. Signed

Decimal

4. Unsigned

Decimal

5. Hex
