Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-104

Revision Apr. 30th, 2007, 2007PDD23000002

Alarm Setup Dialog Box

Number of
Records in
History Buffer

Use this option to save data in order. When the number of records
exceeds this setting value, it will delete the records from the first record
and insert the new record again.

Non-volatile

Using this option can enable to save data in SRAM when the power is
turned off. The capacity for saving alarm data of DOP-AS series is
4KBytes, DOP-A series is 8KBytes and DOP-AE series is 16KBytes.
(The power of SRAM is battery when the power is turned off.) (In some
HMI models, the user can save data in USB flash drive or SM card when
the power is turned off and the capacity for saving alarm data depends
on the capacity of USB flash drive or SM card.)

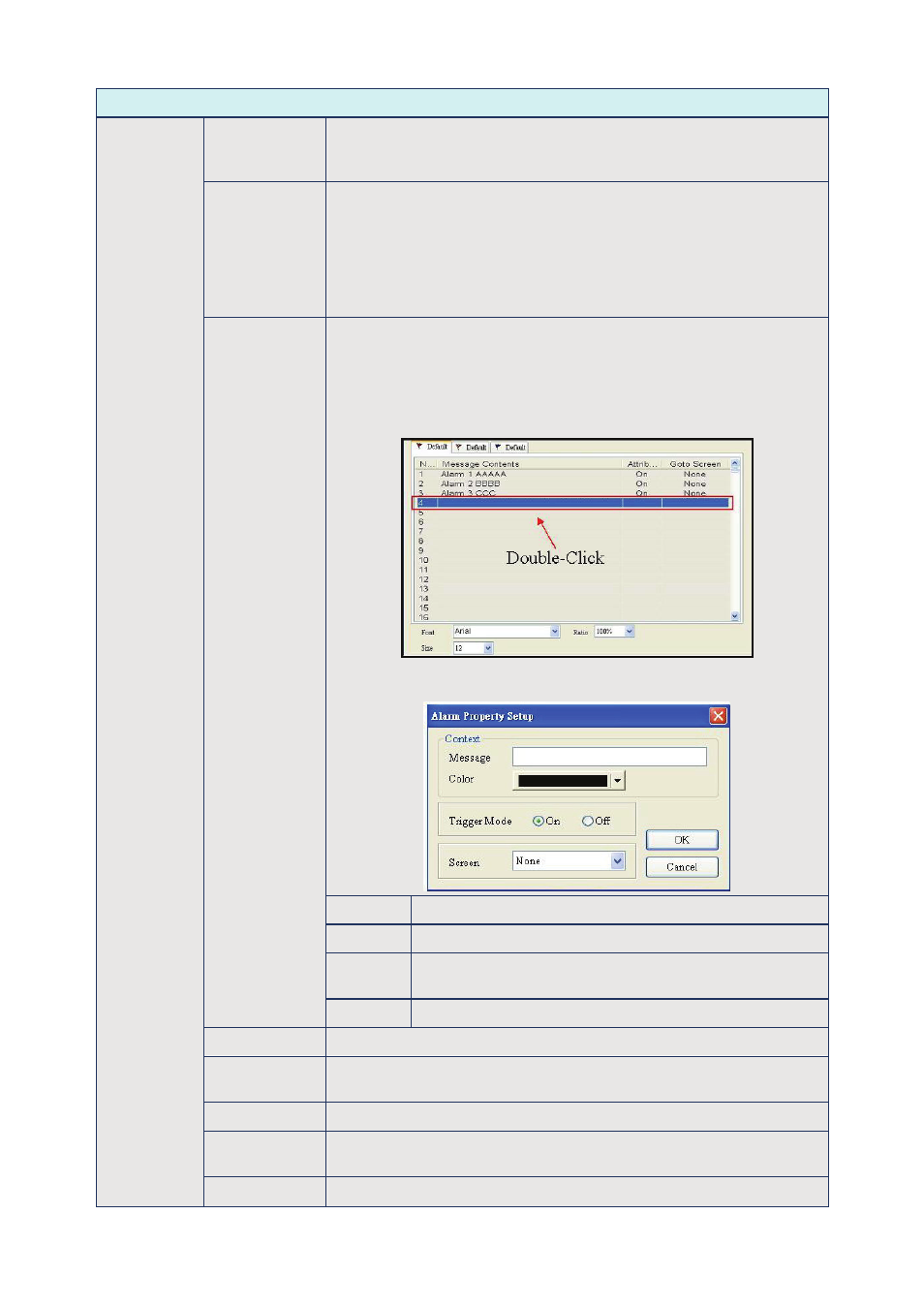

The user can double click a row of the alarm message contents table to
edit the alarm property.
(Please note that there are three languages tabs in Alarm Setup
dialog box since multi-language function is also supported here.
The user can click the tab to edit the alarm message contents
according to the user’s requirement.)

The following Alarm Property Setup dialog box will display after double
clicking the row.

Message

Display message when an alarm occurs.

Color

Display message color when an alarm occurs.

Trigger
Mode

Use this option to determine if the Bit is On or Off when an
alarm occurs.

Alarm Property
Setup

Screen

Display screen when an alarm occurs.

Delete

Delete the alarm message contents.

Modify

Modify the alarm message contents. The user also can double click the
mouse to perform this function.

Import

Import the Alarm Describe File into the alarm message contents table.

Export

Export the alarm message contents from HMI and convert them to be a
Alarm Describe File.

OK

Compete the settings and exit the Alarm Setup dialog box.
