Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-115

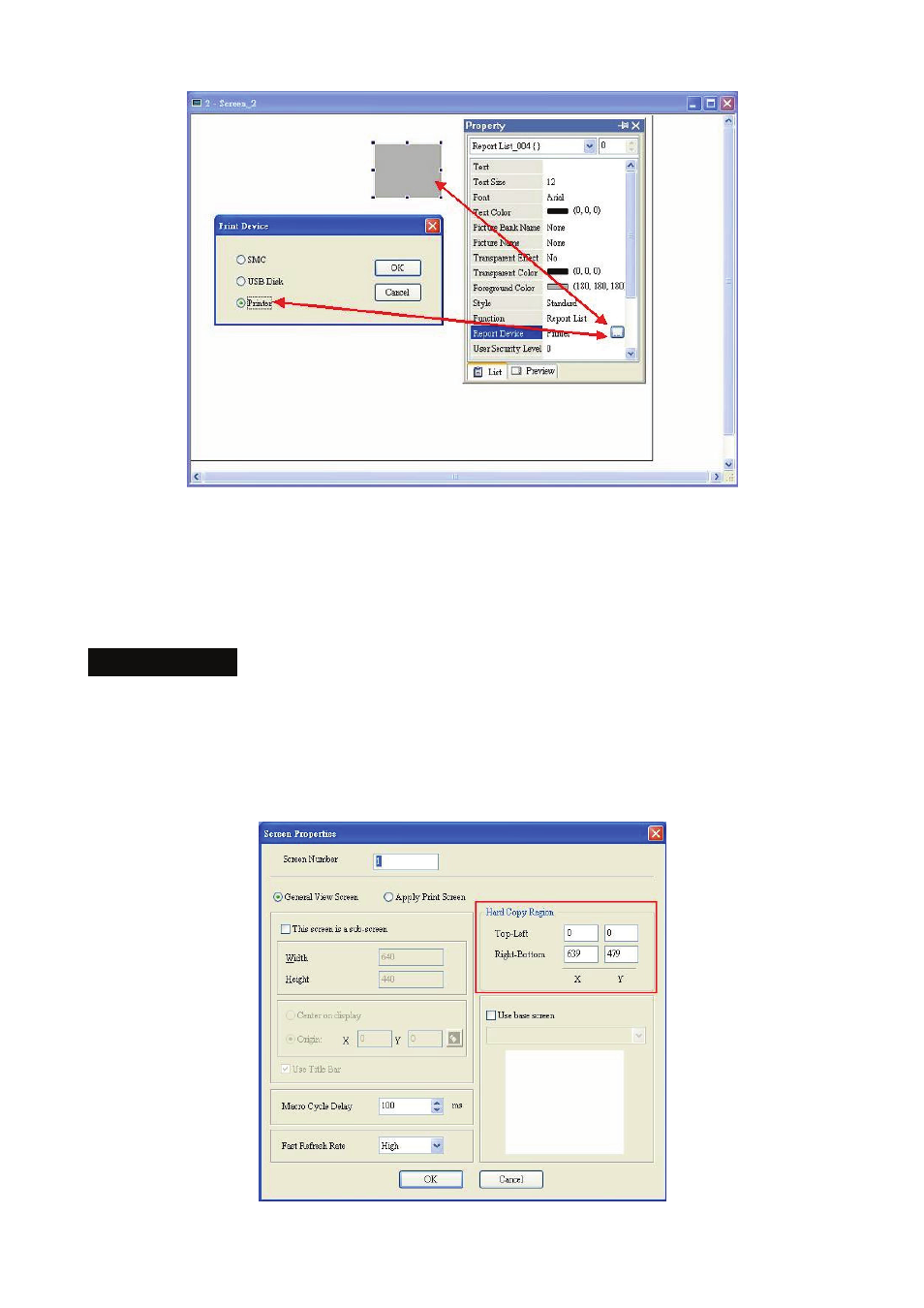

Step 4:

Connect to the printer and startup the HMI. When “Report List” button is pressed, the printer will start to print.

Please note that it will take some time when there are too many print screens or the sampling data of the

print element is too much.

Hard Copy Function

The Hard Copy function is available only when the screen is a “General View Screen”. If HMI detects the

“Print Typesetting” function is already set for the editing screen, the “Hard Copy” function will be ineffective.

Step1:

Set the Hard Copy Region in Screen Properties tab.
