Delta Electronics Human Machine Interface DOP-A Series User Manual
Page 69

Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
2-58
Revision Apr. 30th, 2007, 2007PDD23000002
Auxiliary Key
DOP series HMI allows the user to determine the function of auxiliary keys in each screen. The user
can execute this function by clicking Screen > Auxiliary Key. Auxiliary key set up for each screen can
be completed by pressing the auxiliary keys on HMI panel (Fig. 2.7.11) or on the screen (Fig. 2.7.12).

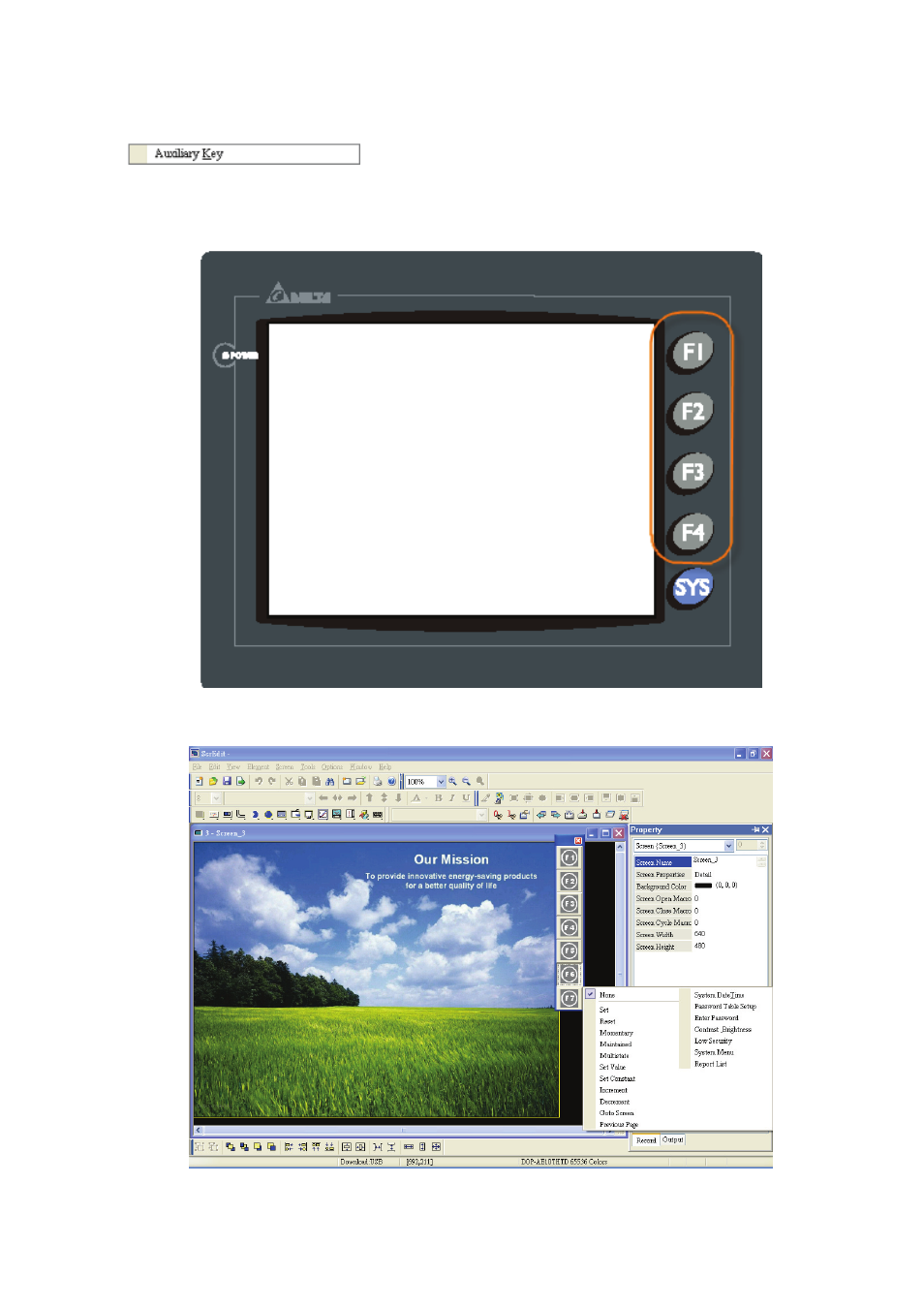

Fig. 2.7.11 Auxiliary Keys on HMI panel
Fig. 2.7.12 Auxiliary Key setting on the screen
