Chapter 3 Element Function|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

3-43

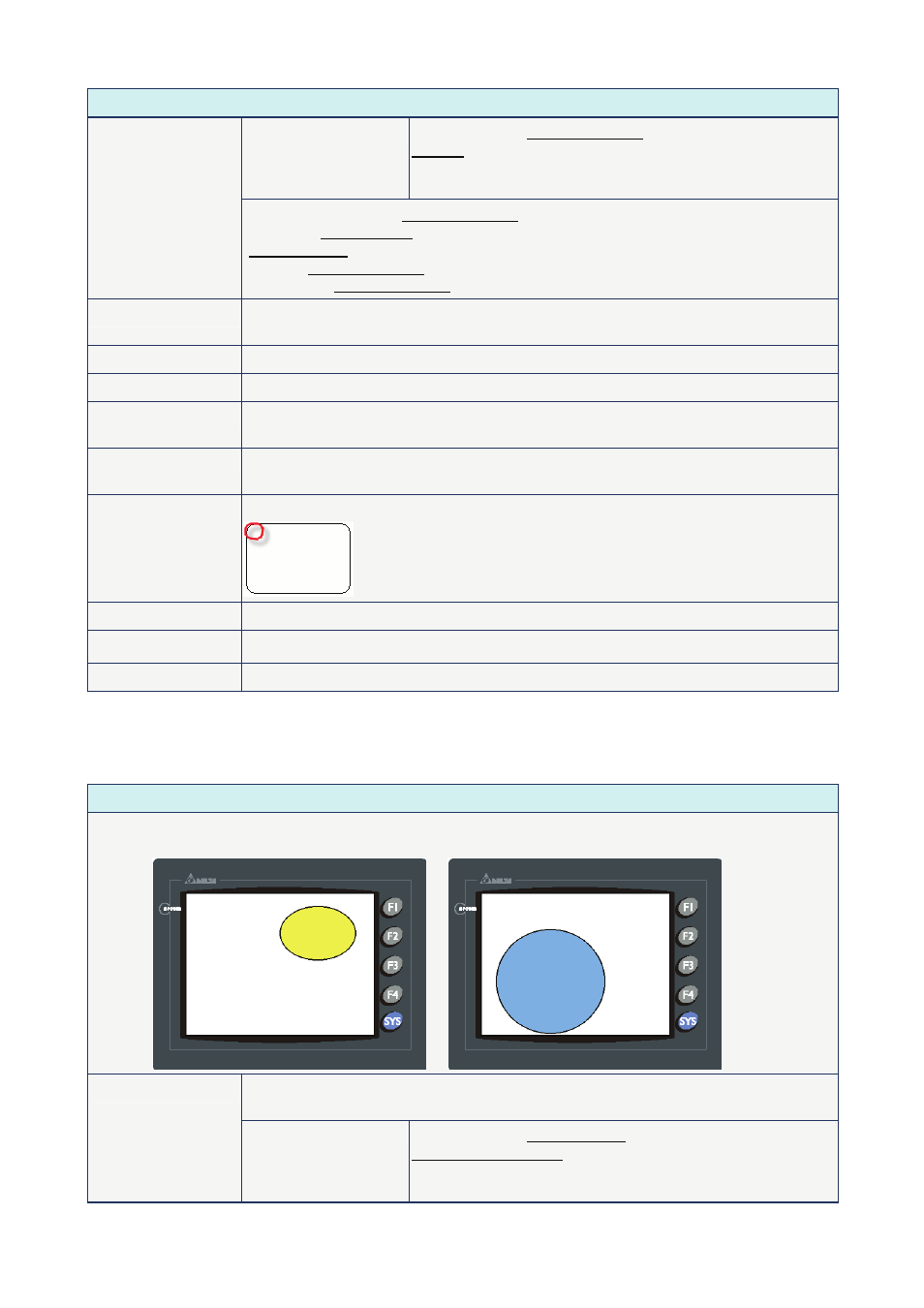

Property Description of Dynamic Rectangle Element

Read Address +5

The value of the Read Address+5 can be used only when
Twinkle option is set to Yes. When the value is higher than 1,
the dynamic line element will twinkle. If the value is 0, it will
not twinkle.

Please note that when Variable Position option is set to No, the internal memory
address of Variable Size option will increase one (one increment) automatically.
(Read Address will represent the right-bottom horizontal position (Right) of the
element. Read Address+1 will represent the right-bottom vertical position (Bottom) of
the element. Read Address+2 will represent the foreground color of the element.)

Twinkle

The element can twinkle to remind the user. (Please refer to Table 3.2.2 Property
Description of General Buttons.)

Foreground Color

It is used to set the foreground color of the dynamic rectangle element.

Line Size

The unit is Pixel and the range is within 1 ~ 8.

Data Format

It provides BCD, Signed Decimal, Unsigned Decimal and Hex four kinds of data
format to define the read memory content.

Transparent

When this option is selected, the element will display only with the border and there is
no color in the element. The Foreground Color option will be disabled also.

Round Radius

0~38 pixels round radius are provided for selection.

Variable Position

(Please refer to the description of Read Address above)

Variable Size

(Please refer to the description of Read Address above)

Variable Color

(Please refer to the description of Read Address above)

„

Dynamic Ellipse

Table 3.9.6 Property Description of Dynamic Ellipse Element

Property Description of Dynamic Ellipse Element

The dynamic ellipse element, including element size and color can be changed and moved depending on
the value of the corresponding contact or register.

The address can be internal memory or the controller address. (Please refer to Table
3.2.2 Property Description of General Buttons.)

Read Address

Read Address

The value of the Read Address can be used only when
Variable Central Point option is set to Yes. It is used to
represent the horizontal position of the element center point,
i.e. the first X coordinate on the screen (X

1

).
