Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-123

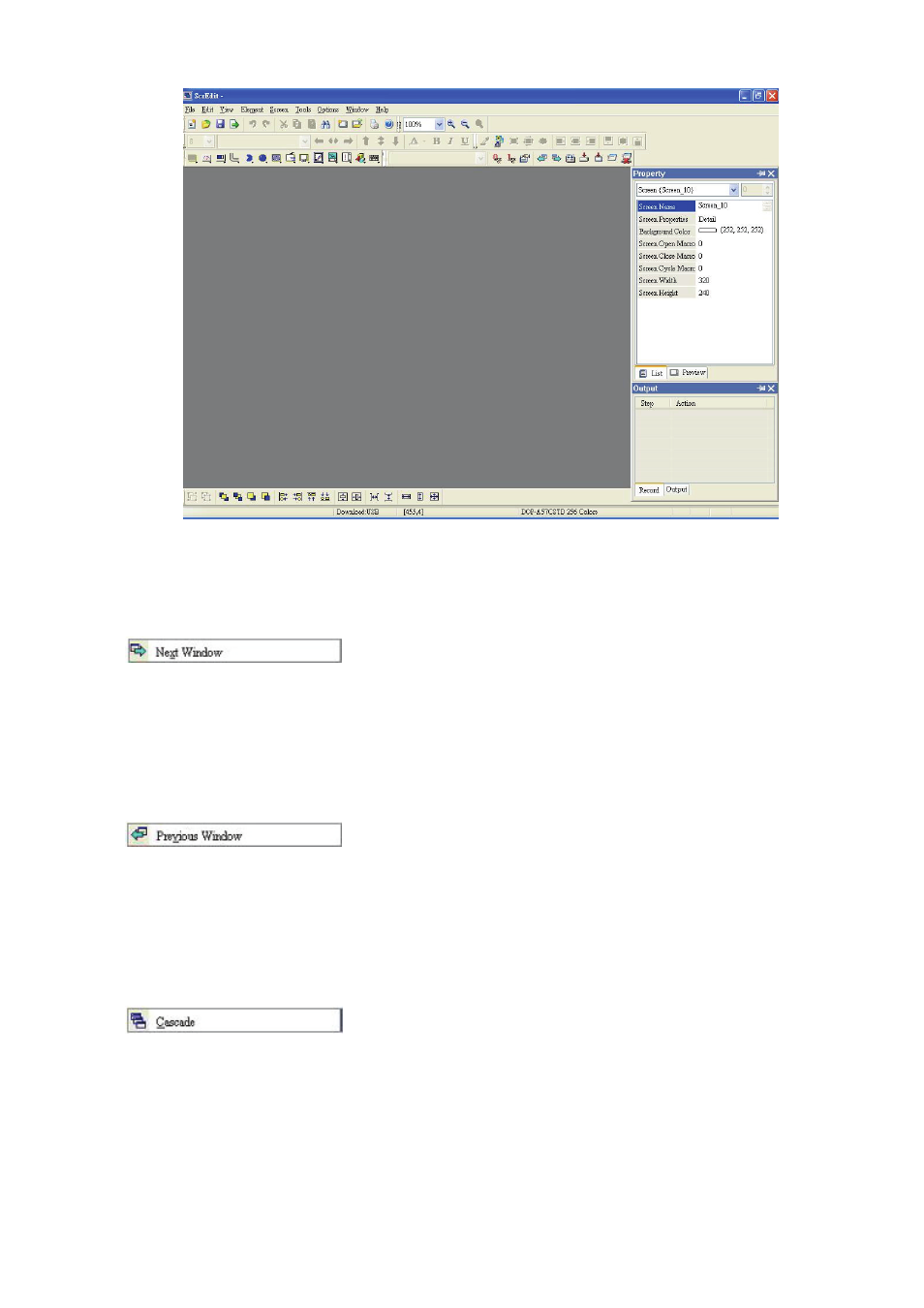

Fig. 2.10.2 Screen status after all windows are closed

„

Next Window

It is used to switch the current window to the next window. If the current window is the last window, the
current window will not be changed even if this function is executed.

„

Previous Window

It is used to switch the current window to the previous window. If the current window is the first window,
the current window will not be changed even if this function is executed.

„

Cascade

Cascade display. Display all editing windows so that they overlap. The title bar of each window is
visible but only the top window is fully visible. The user can execute this function by clicking Window >
Cascade. The opened windows are displayed in an overlapped pattern as shown as Fig. 2.10.3.
