Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-37
Icon Function Description
Zoom Out
Lets the user reduce the magnification level, including 25%, 50% and
75%.
1:1 Lets the user change element size to actual size (100%).
„ Property Table
Element property table. Please refer to Chapter 3 for detailed description.

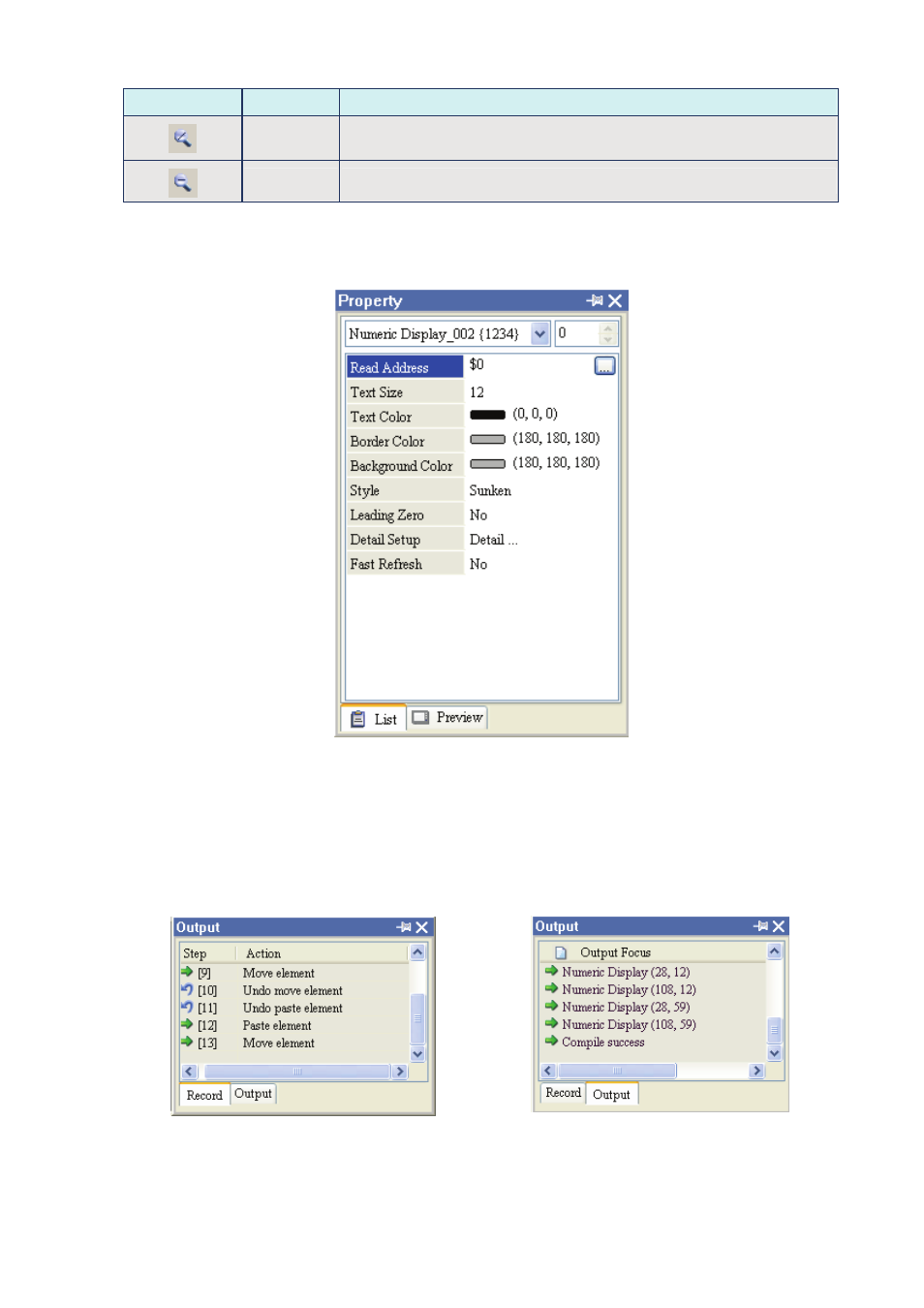

Fig. 2.5.3 Property table
„ Output Window
All editing processes during compile operation will be shown here for user’s reference. It can let the
user know the result of the compile operation and it is also convenient for tracing error address when
creating and editing screen (See Fig. 2.5.4, Fig. 2.5.5, Fig. 2.5.6 and Fig. 2.5.7).
Fig. 2.5.4 Output window Fig. 2.5.5 Output window during compile operation
