Chapter 3 Element Function|ScrEdit Software User Manual

3-60

Revision Apr. 30th, 2007, 2007PDD23000002

3.12 Sampling Element

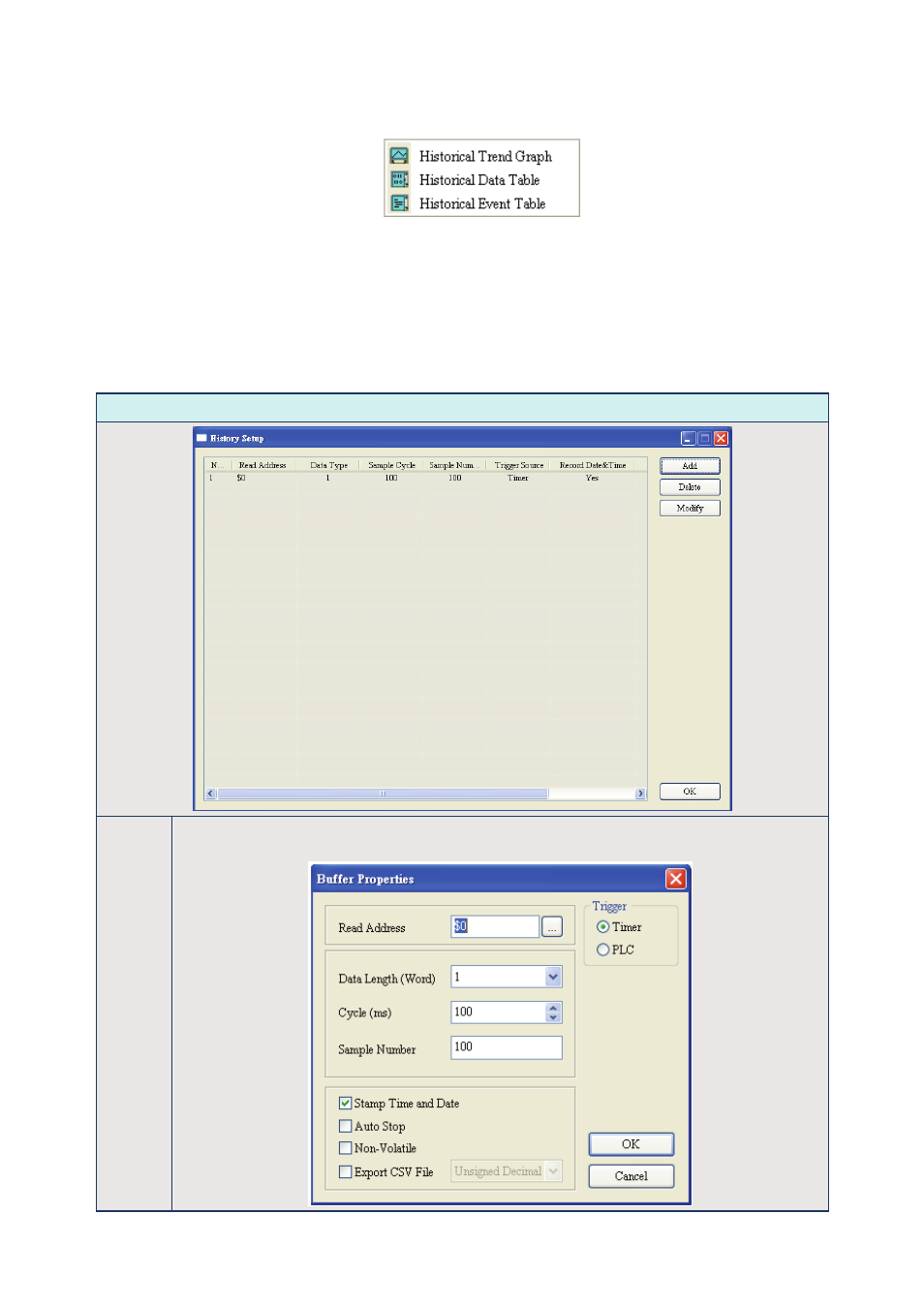

Fig. 3.12.1 Sampling element options

The sampling element is designed to display the history data by history graph or table and can be updated

immediately for the user to use and read more easily. Sampling elements should be used with History Setup.

The user can click ”Option” > “History Setup” (Choosing History Setup command from menu bar) to execute

this function.

Table 3.12.1 History Setup Dialog Box

History Setup Dialog Box

Add

Pressing Add button can add a history data. After the Add button is pressed, the following
Buffer Properties dialog box will display.
