Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-109

„

Tag Table

It is used to replace the specific address with the user-defined words or characters. For example, if the
user wants to replace PLC address 1@Y0 with the word “OS”, just define it in Tag Table option in
advance.

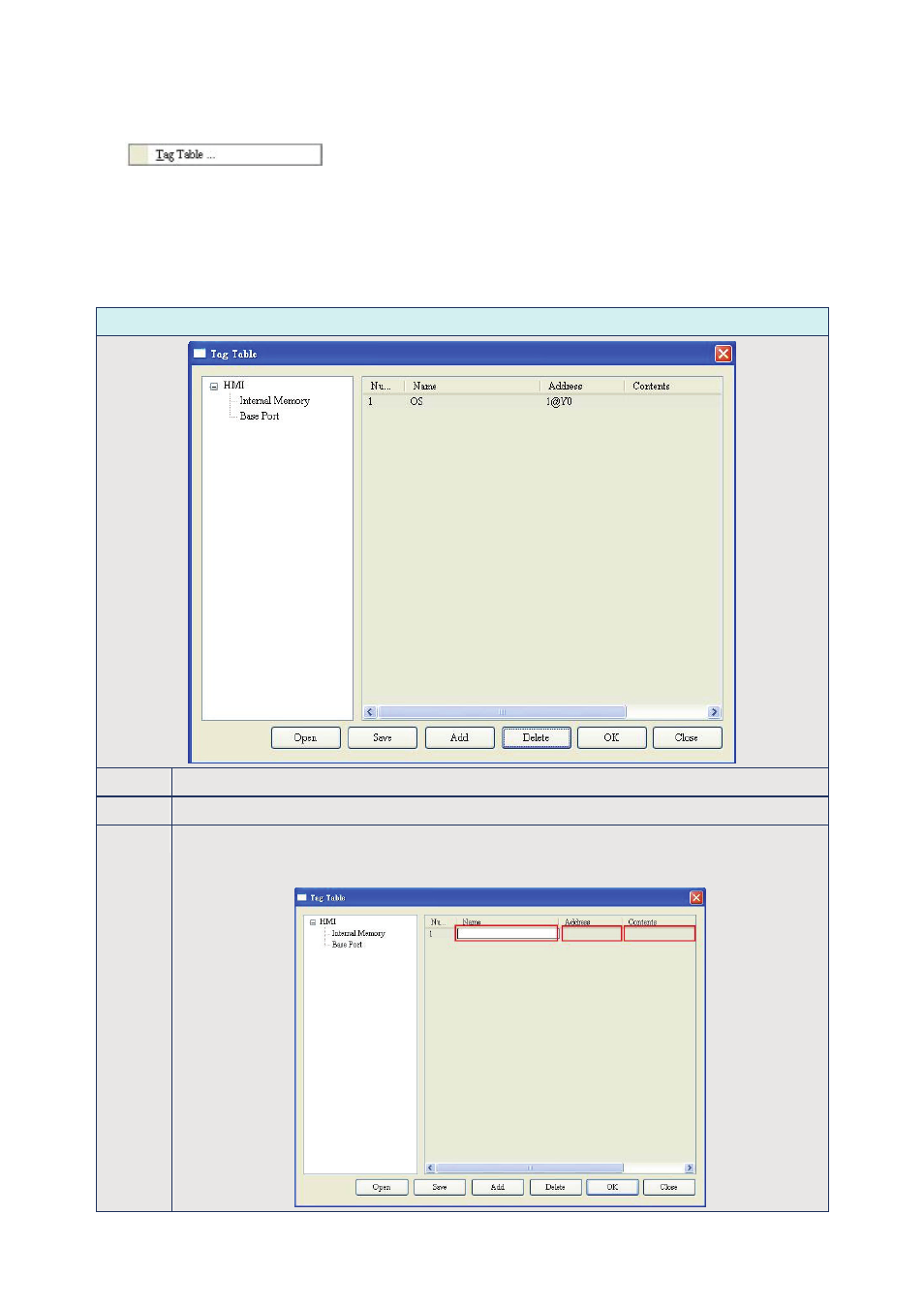

Table 2.9.8 Tag Table Settings

Tag Table Dialog Box

Open

Open a Tag File and import it into HMI.

Save

Save the settings or changes made in Tag Table dialog box as a Tag File.

Add

Please select the Tag type first, Internal Memory and Base Port (If the user has three or above
communication ports, the user will see Link2, Link3 …and vise versa). Then, press Add button
to add and define Tag data.
