Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-71

Recipe Setup

Clear

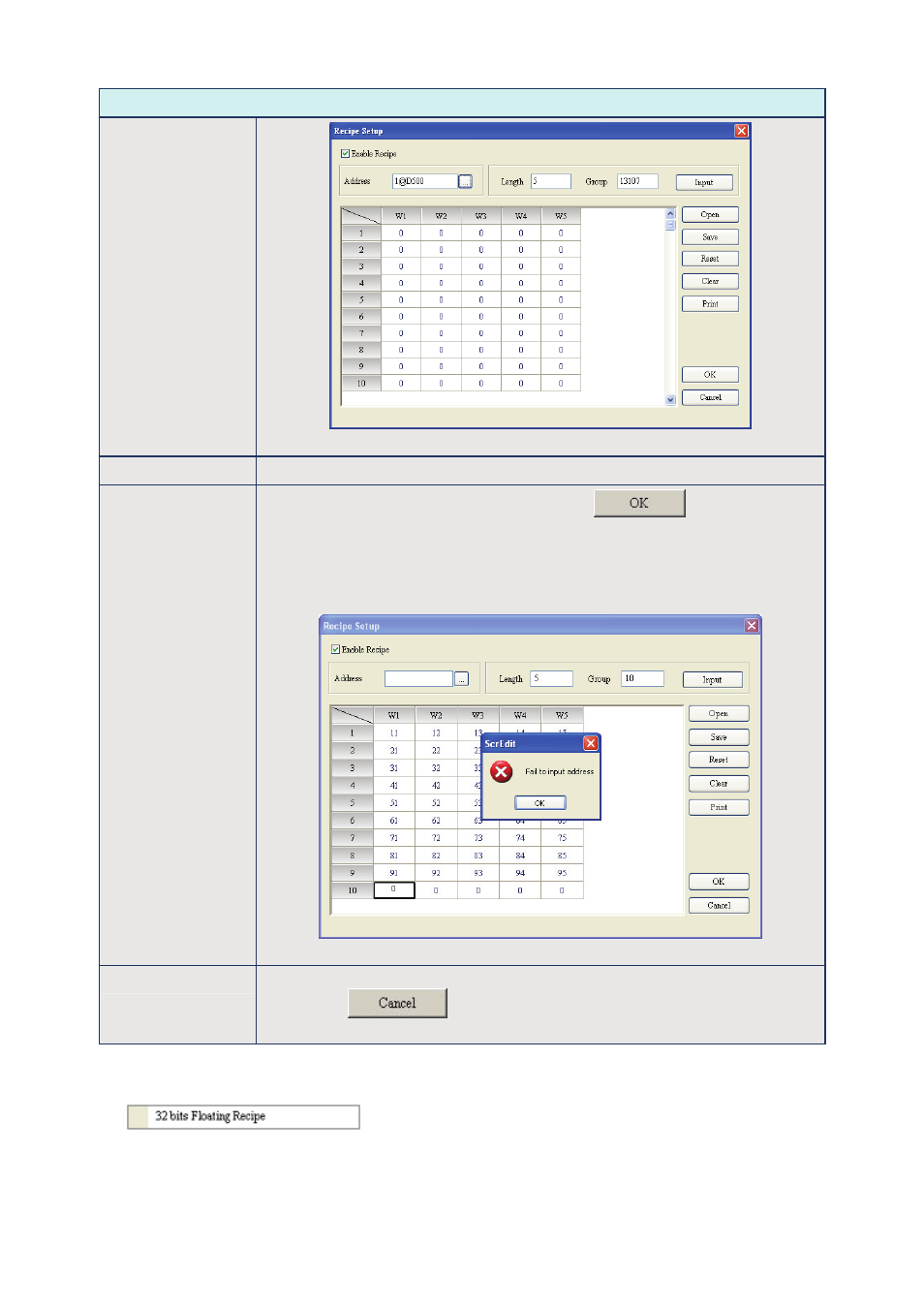

Fig. 2.8.17

Print

It will print all recipe data on current screen.

OK

After inputting the recipe data, the user can click

button to save the

recipe data for transmitting or modifying. At the same time, ScrEdit will check the
validity of all input recipe data. If there is invalid input recipe data value, the OK
function will not be executed successfully. For example, in Fig. 2.8.18, ScrEdit
found an error and a warning message dialog box display on the screen as the
user did not input the starting address of the recipe.

Fig. 2.8.18

Cancel

It will force the system to exit the Recipe Setup dialog box without saving anything

after clicking

button. Therefore, please consider carefully before

clicking this button.

„

32 bits Floating Recipe

32 bits Floating Recipe function provides the user to save 32 bits data. The data format includes
Signed Decimal, Unsigned Decimal and Floating (The total of Integral and fractional digits cannot
exceed 7 digits). To enable this function, the user can click Tools > 32 bits Floating Recipe. For the
setting of Recipe Setup dialog box, please refer to Fig. 2.8.19 and Table 2.8.3 on next page.
