Chapter 3 Element Function|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

3-79

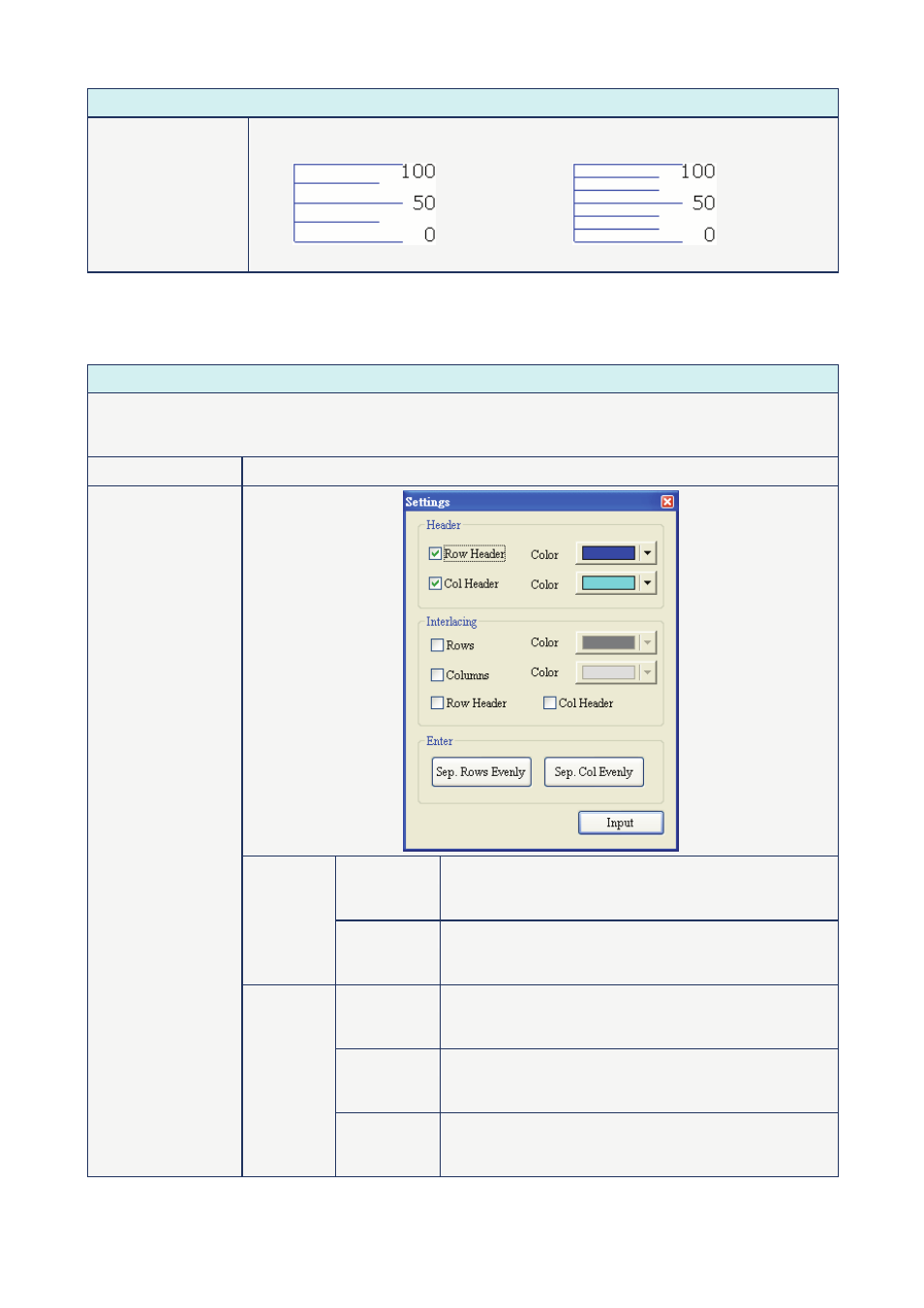

Property Description of Scale Graphic Element

SubScale Number

When the main scale number is set to 3 and the subscale number is also used, the
scale graphic element will display as the figures below:

When subscale number is set to 1 When main scale number is set to 2

„

Table

Table 3.14.8 Property Description of Table Graphic Element

Property Description of Table Graphic Element

The user can change the cell numbers of the table, appearance and color in the property table to create a
special and unique table graphic element. If it is used with other elements, each element will display more
completely on the screen.

Background Color

It is used to set the display color of the table scale element.

Row Header It is used to the color of the first row of the table. The

user can enable or disable this option by checking the
check box next to “Row Header”.

Header

Col Header

It is used to the color of the first column of the table. The
user can enable or disable this option by checking the
check box next to “Col Header”.

Rows

It is used to the color of the interlacing rows of the table.
The user can enable or disable this option by checking
the check box next to “Rows”.

Columns

It is used to the color of the interlacing rows of the table.
The user can enable or disable this option by checking
the check box next to “Rows”.

Detail Setup

Interlacing

Row Header It is used to the color of the interlacing row header of the

table. The user can enable or disable this option by
checking the check box next to “Row Header”.
