Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-40

Revision Apr. 30th, 2007, 2007PDD23000002

„

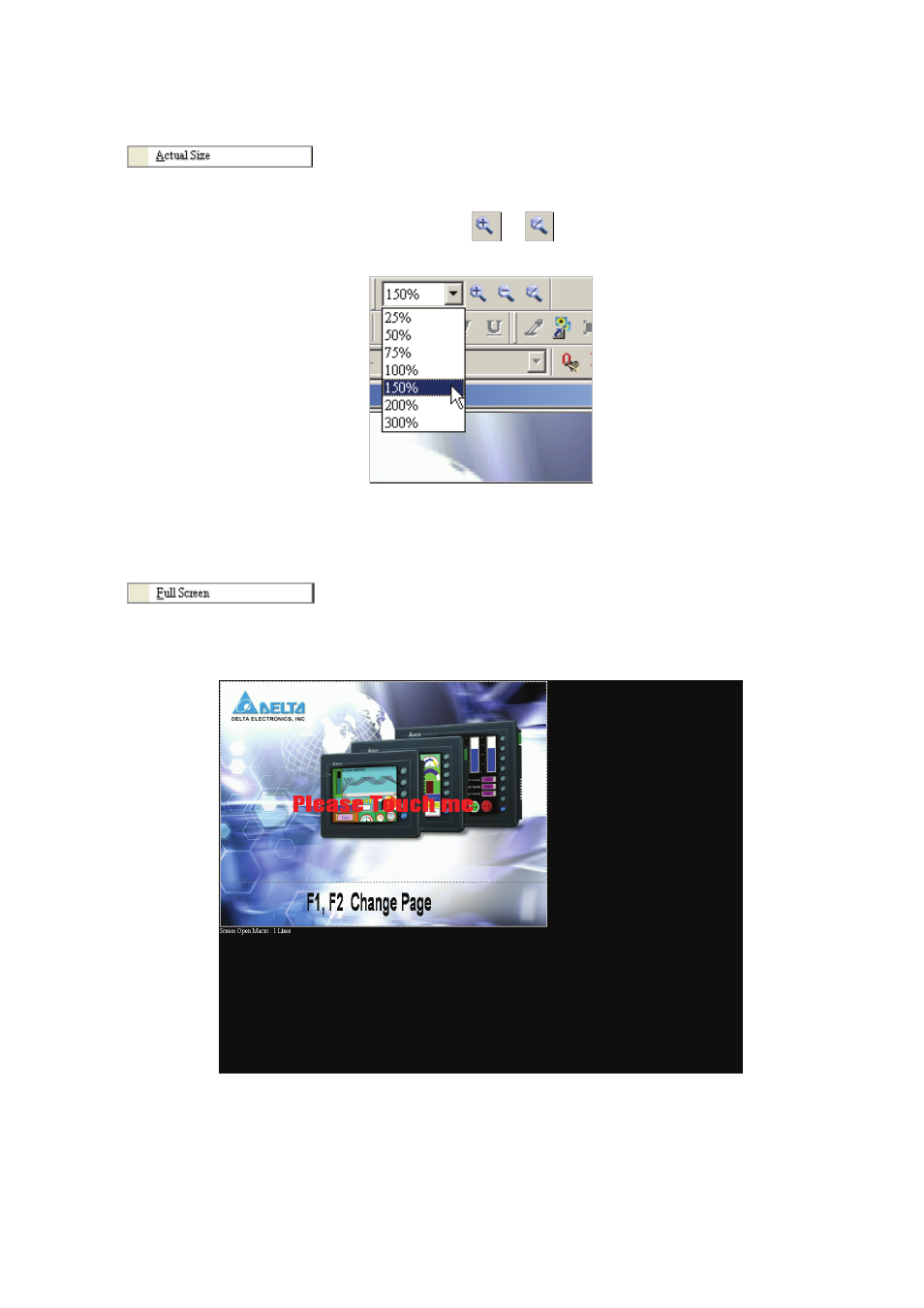

Actual Size

Return to actual size (100%). This size is relative to the screen size of HMI.

The user can also zoom in or out by clicking icon

or

or selecting the Zoom level directly (Fig.

2.5.11).

Fig. 2.5.11 Zoom level

„

Full Screen

As Fig. 2.5.12. Full screen provides maximum view to edit in ScrEdit. Full screen view will hide all
toolbars and docking windows other than the ScrEdit work place itself. Fig. 2.5.12 full screen also
shows the reference macro command.

Fig. 2.5.12 Full Screen (Pressing Esc key or left-click the mouse can exit Full screen)
