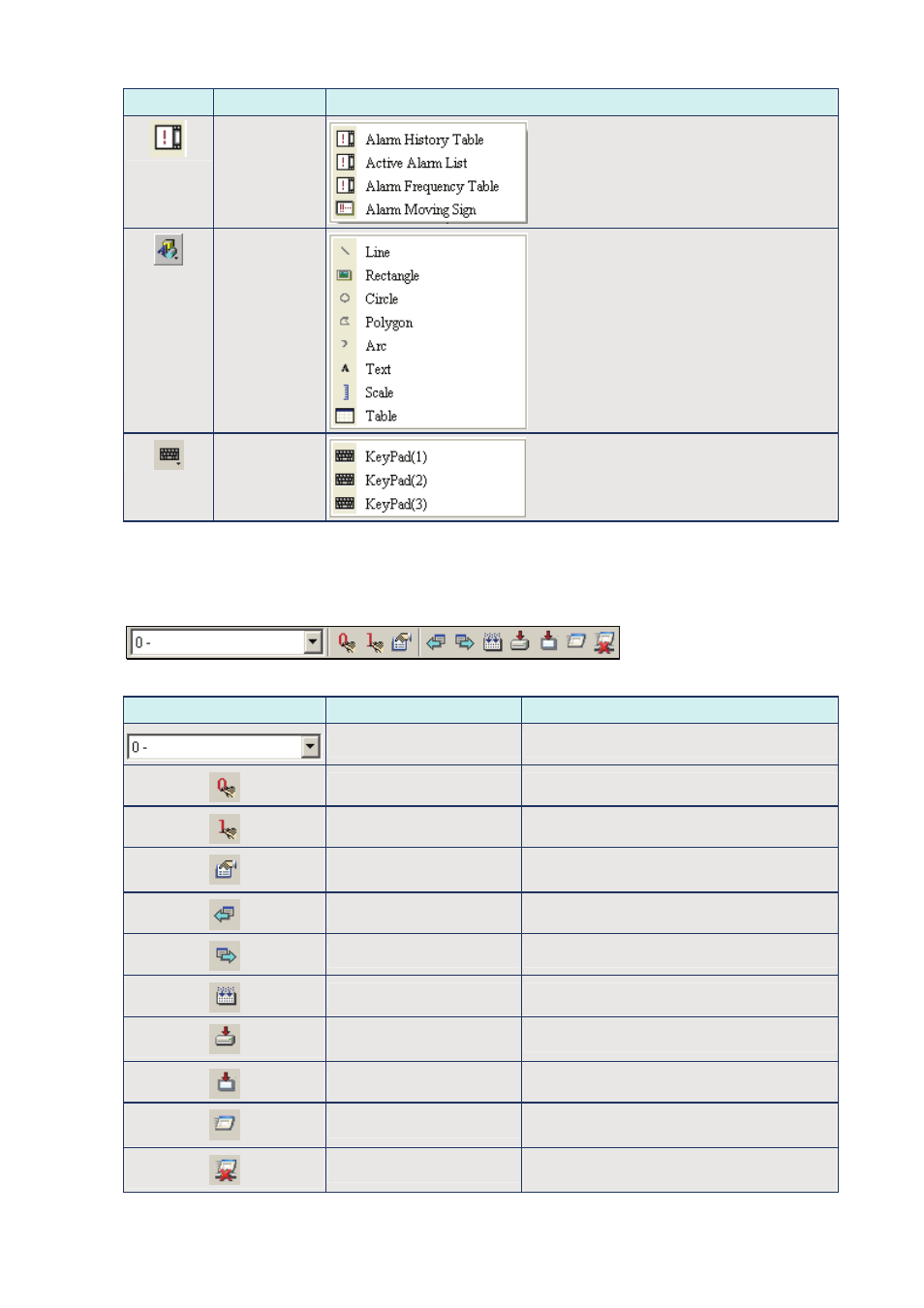

Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-35

Icon

Function

Drop-down Menu

Alarm

Graphic

Keypad

„

Build / Layout Toolbar

Build Toolbar

Table. 2.5.5 Build toolbar

Icon

Function

Description

Current Element State

Text on selected element

View State OFF/1

Switch and view current state OFF/1

View State ON/1

Switch and view current state ON/1

Display All Read/Write

Address

Display all read/write addresses of all
elements

Previous windows

Select previous windows

Next windows

Select the next windows

Compile

Compile current element

Download Screen and

Recipe

Download screen data and recipe

Download Screen

Download screen data

On-line Simulation

Test editing file at PC side and it needs to
connect to the controller

Off-line Simulation

Test editing file at PC side and it doesn’t
need to connect to the controller
