Chapter 3 Element Function|ScrEdit Software User Manual

3-82

Revision Apr. 30th, 2007, 2007PDD23000002

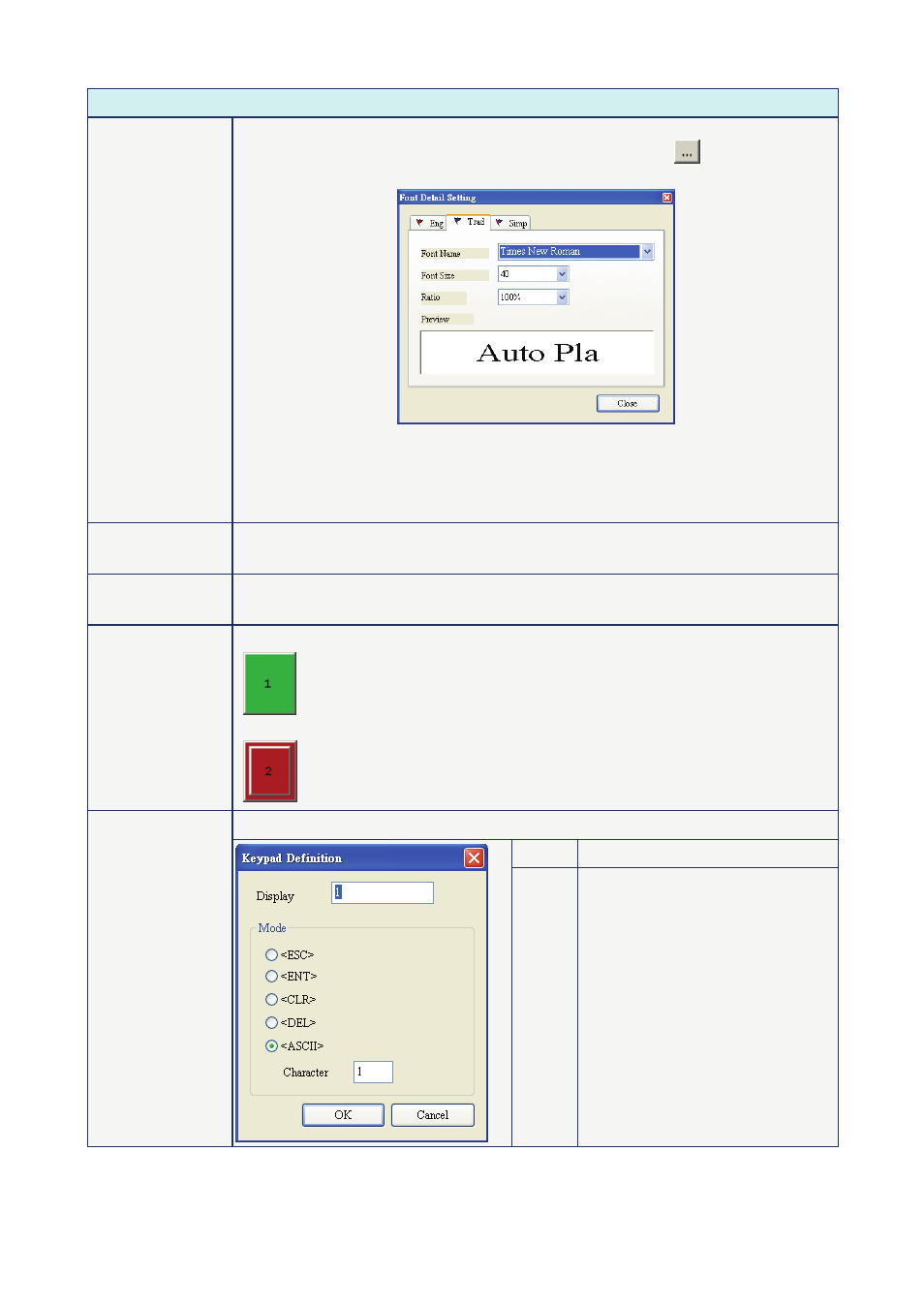

Property Description of Keypad (1) / (2) / (3) Element

Text
Text Size
Font
Text Color

The user can set the text, text size, font and text color that provided by Windows® to

determine the text display on the element. When the user press

button next to

“Font”, the following “Font Detail Setting” dialog box will display.

In “Font Detail Setting” dialog box, the user can select Font Name, Font Size and Ratio
of the text and view the text format from the Preview window in advance. If the multi-
language function is used, the user can see different language tabs and edit different
language font setting in “Font Detail Setting” dialog box. Please refer to the example
figure above.

Picture Bank Name
Picture Name

(Please refer to Table 3.2.2 Property Description of General Buttons.)

Transparent Effect
Transparent Color

(Please refer to Table 3.2.2 Property Description of General Buttons.)

Foreground Color
Style

There are Standard and Raised these two options.

(When the style is selected as Standard and the foreground color is set to

green.)

(When the style is selected as Raised and the foreground color is set to red.)

The user can redefine the buttons of the keypad

Display Display text or character

Detail Setup

Mode

The are following modes provided::
1. Escape/Cancel (If the

keypad is put on the sub
window, this key can be used to
close the sub window.

2. Enter
3. Clear
4. Delete
5.

Character
