Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-48

Revision Apr. 30th, 2007, 2007PDD23000002

„

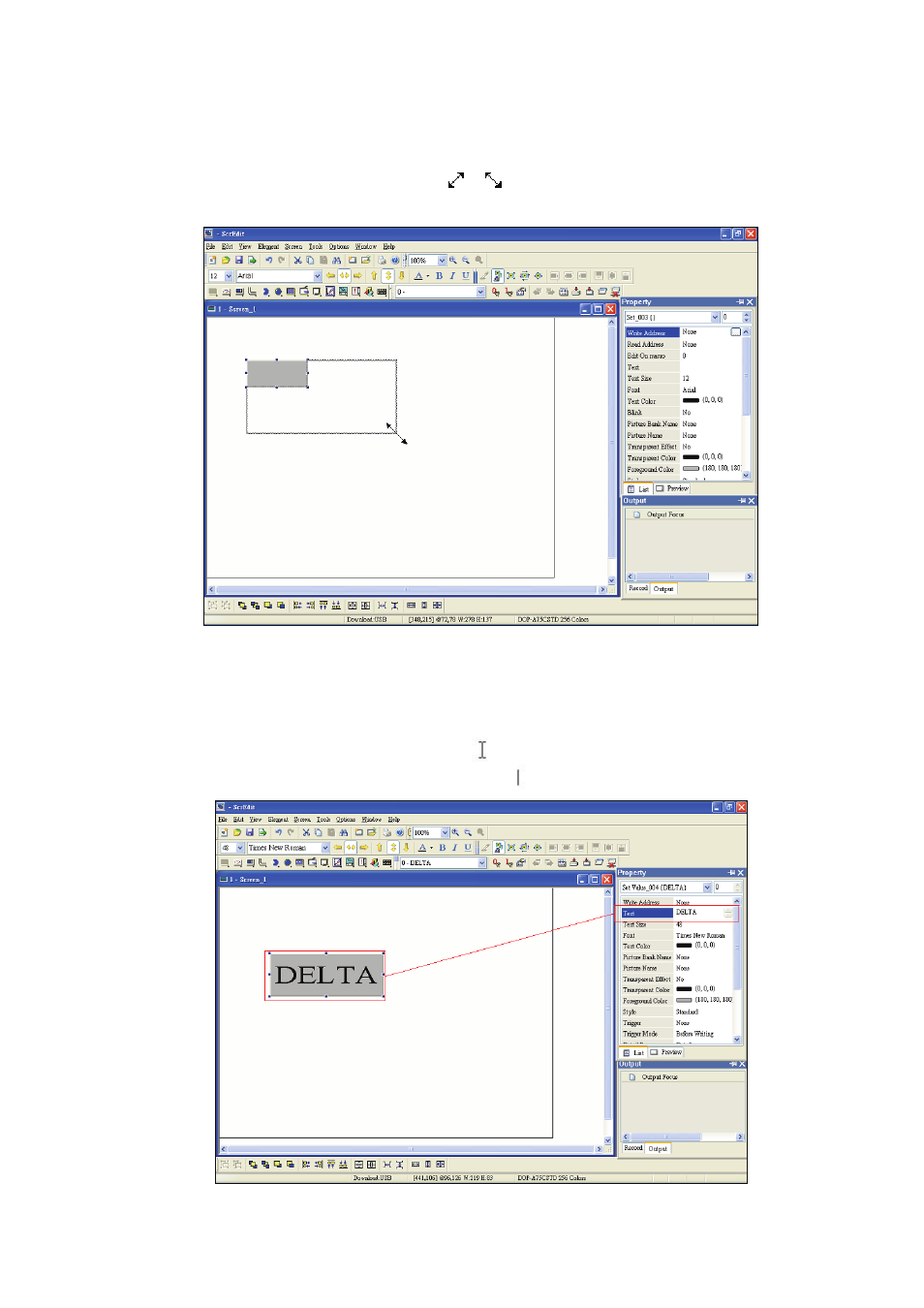

Modify Element Width and Height Simultaneously

The user can also use the mouse to modify the width and height of an element simultaneously. When

the mouse cursor changes to a two-arrow icon or , the user can left-click the mouse and modify

the element width and height at the same time (Fig. 2.6.11).

Fig. 2.6.11

Modify Element Width and Height Simultaneously

„

Input Characters

The user can input a string of characters that Windows® operating system accepts in the property

table. When the mouse cursor changes to an icon

, the user can start to input any characters that

Windows® operating system accepts where the cursor blinks (Fig. 2.6.12).

Fig. 2.6.12 Input Characters
