Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002
2-39

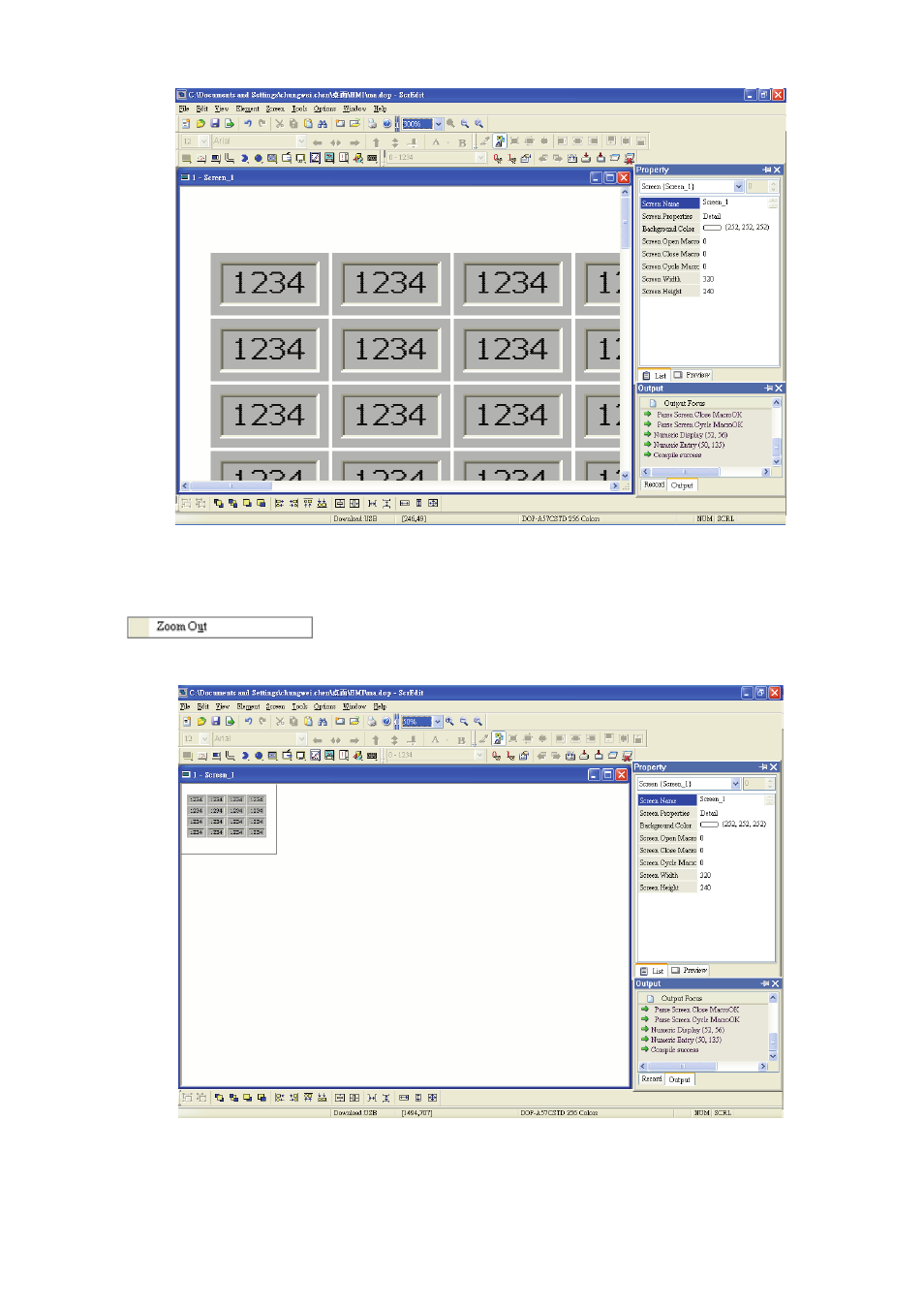

Fig. 2.5.9 Zoom level = 300% (After Choosing Zoom In command)
Zoom Out
Zoom out to see more look of the elements on ScrEdit work place. (Refer to Fig. 2.5.10)
Fig. 2.5.10 Zoom level = 50% (After Choosing Zoom Out command)
