Chapter 3 Element Function|ScrEdit Software User Manual

3-32

Revision Apr. 30th, 2007, 2007PDD23000002

3.8 Data

Display

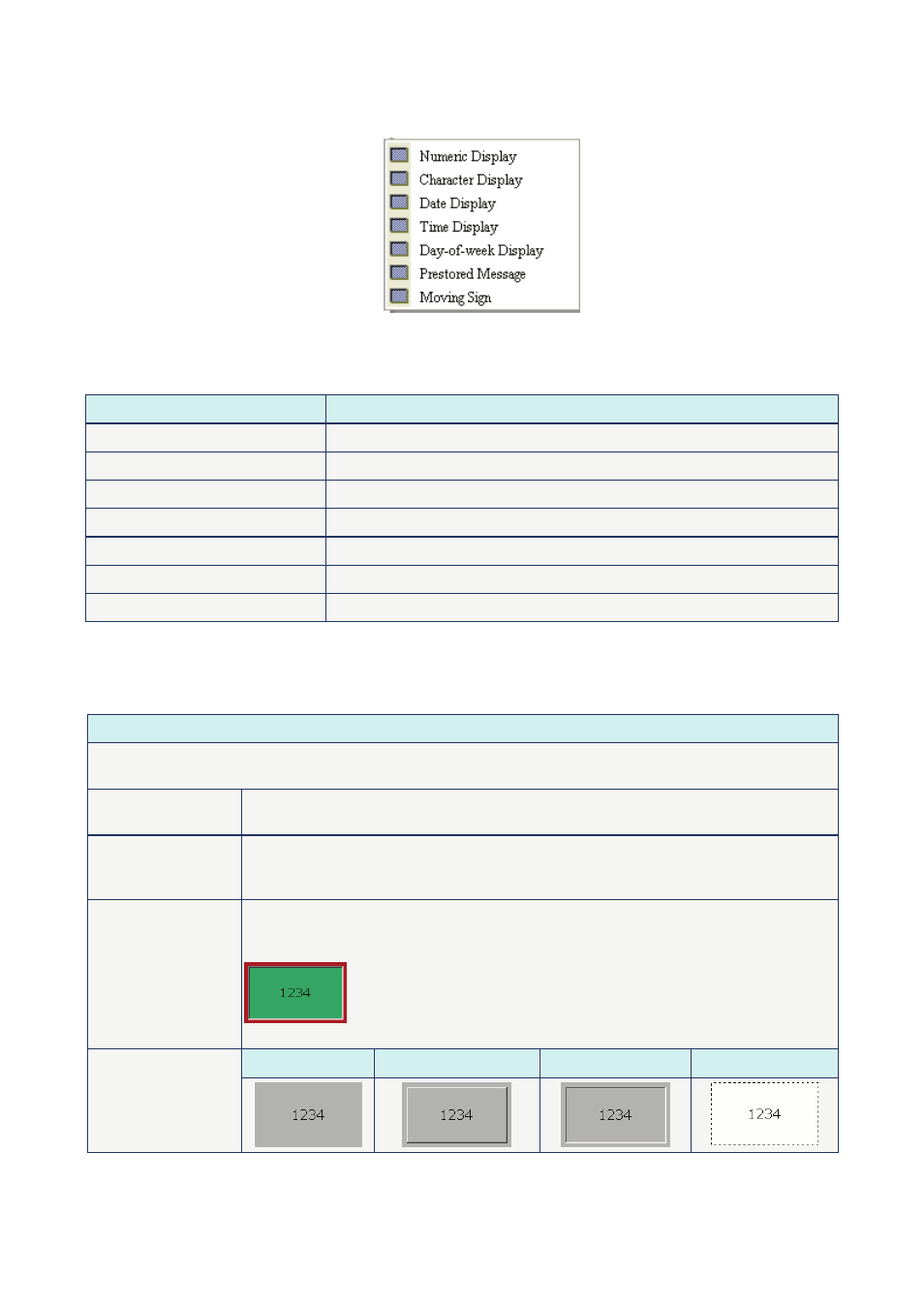

Fig. 3.8.1 Data Display element options

Table 3.8.1 Function of Data Display elements

Element Type

Function

Numeric Display

Display the value of the specific address.

Character Display

Display the text or character of the specific address.

Date Display

Display date of HMI.

Time Display

Display time of HMI.

Day-of-week Display

Display day-of-week of HMI.

Prestored Message

Display message according to the state of HMI.

Moving Sign

Display message by moving sign according to the state of HMI.

„

Numeric Display

Table 3.8.2 Property Description of Numeric Display Element

Property Description of Numeric Display Element

This element will read the value of the setting address and display the read value immediately in the format
set by the user.

Read Address

The address can be internal memory or the controller address. (Please refer to Table
3.2.2 Property Description of General Buttons.)

Text Size
Text Color

The user can set the text size and text color that provided by HMI to determine the
text display on the element. HMI provides 8~64 kinds of default text font for the user
to use.

Border Color
Background Color

Border Color option can be set only when the style of the numeric display element is
selected as Raised and Sunken. The style of the element below is selected as
“Sunken”. Its background color is set to green and its border color is set to red.

(If the style of the element is set to Transparent, the Border Color and

Background Color these two options are disabled.)

Standard

Raised

Sunken

Transparent

Style
