Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-68

Revision Apr. 30th, 2007, 2007PDD23000002

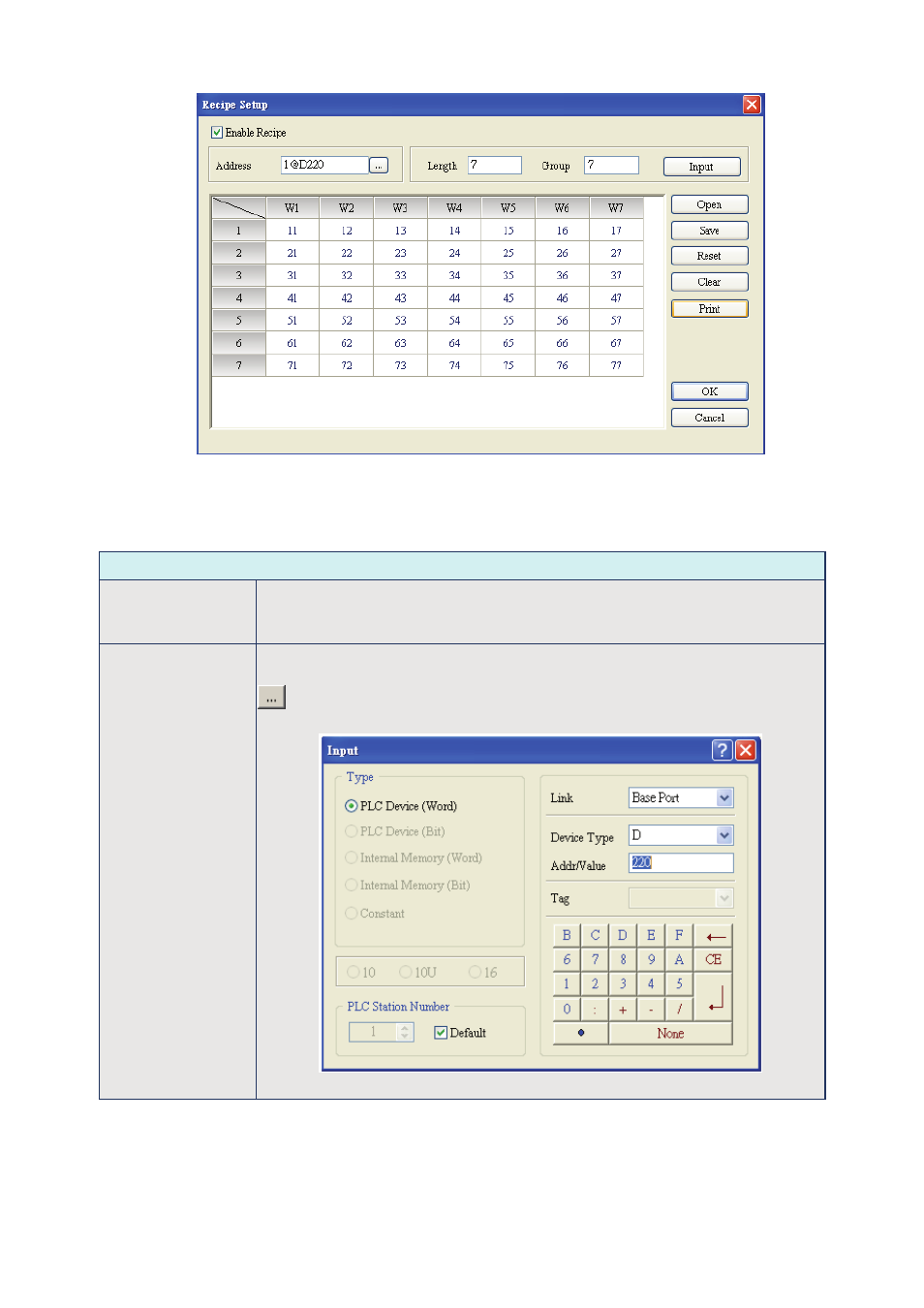

Fig. 2.8.11 Recipe Setup dialog box

Table 2.8.2 Recipe Editing

Recipe Setup

Enable Recipe

When the check box next to “Enable Recipe” is checked, the recipe function is
enabled. If the user does not enable this function, the user can not do this function
even the user has downloaded recipe data.

Address

The user can input the starting address of recipe data here. It can accept the
address in PLC input format and internal memory format. The user also can click

button to get the address input dialog box (Fig. 2.8.12) to input the starting

address.

Fig. 2.8.12 Input starting address dialog box
