Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-90

Revision Apr. 30th, 2007, 2007PDD23000002

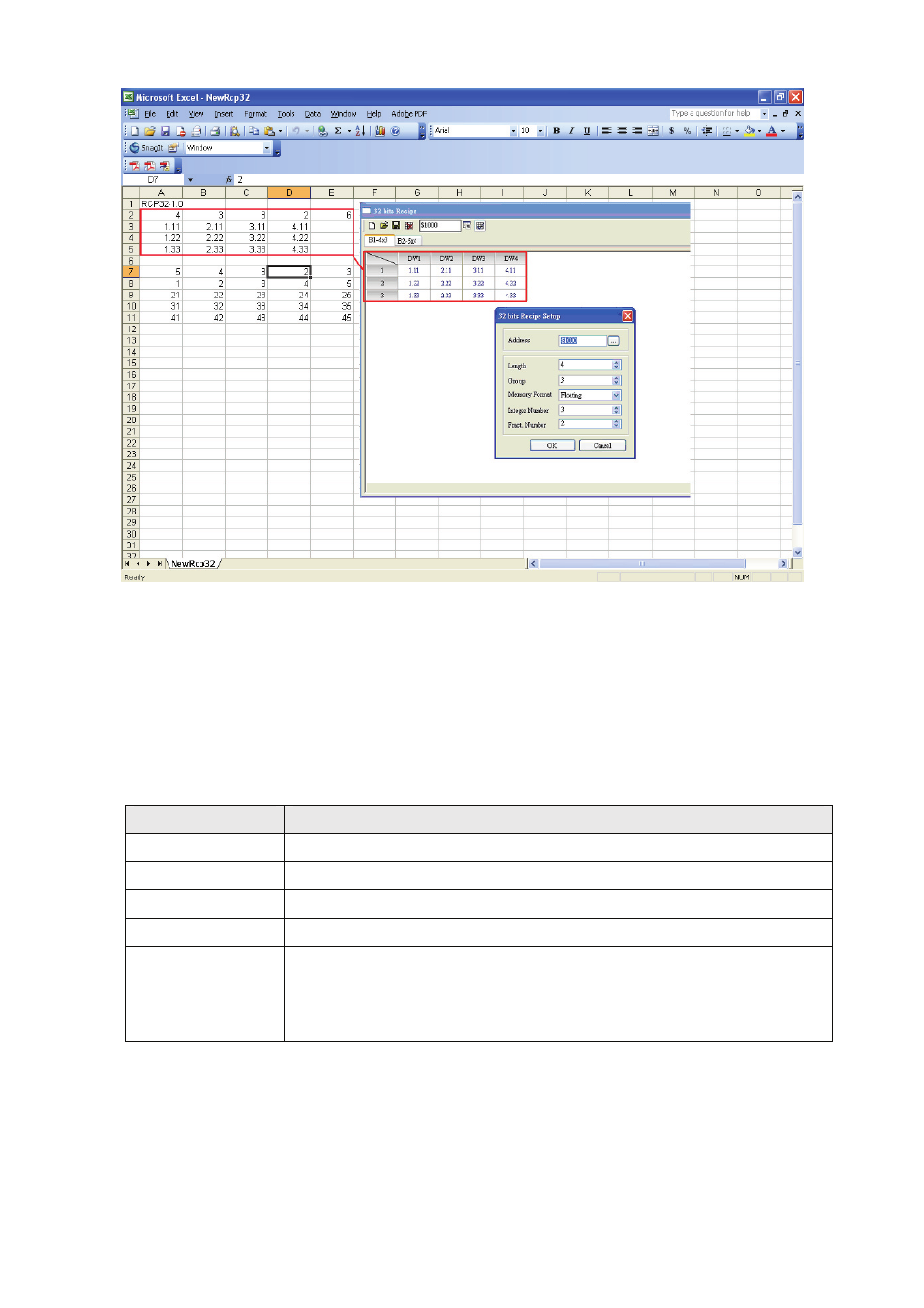

Fig. 2.8.42

Please see Fig. 2.8.42. The right side is the recipe editing window in ScrEdit and the left side is the

Excel editing window. You can see the data within the red frame is the first recipe data. The second

row of the data listed in Microsoft Excel represents the setting values of the 32 bits recipe.

For the connection between the column in Microsoft Excel and the settings of recipe group data, please

refer to the following table.

Column

32 bits Recipe Setup

A Length

B Group

C

Integer Number (only can be set when memory format is set to Floating)

D

Fractional Number (only can be set when memory format is set to Floating)

E

Memory Format:
2: Signed Decimal
3: Unsigned Decimal
6: Floating

The data after one empty row is the settings of next 32 bits recipe. The setting method is the same as

the first 32 bits recipe.
