Chapter 3 Element Function|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

3-27

3.6 Pie Element

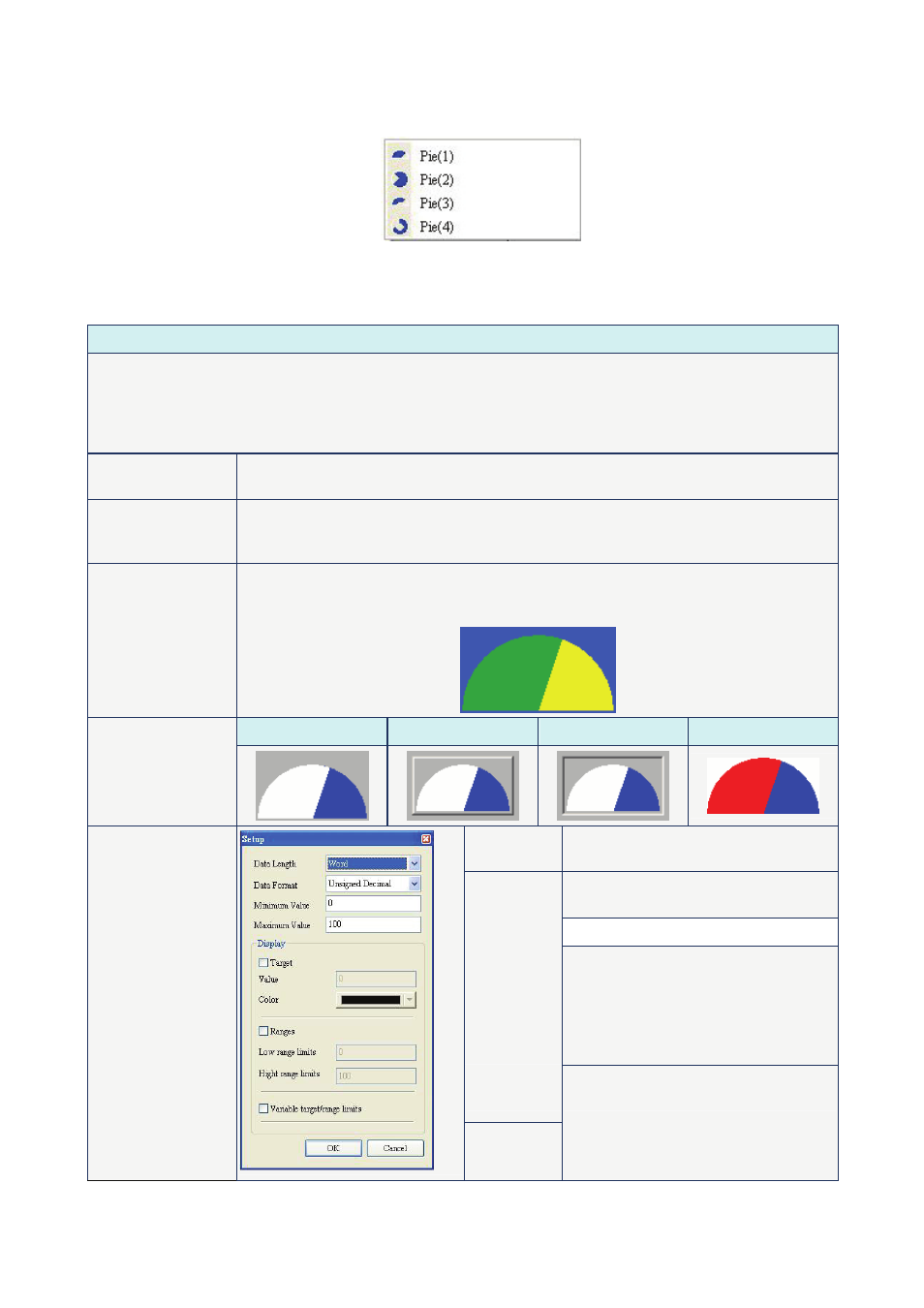

Fig. 3.6.1 Pie element options

Table 3.6.1 Property Description of Pie Element

Property Description of Pie Element

There are four kinds of Pie elements for the user to select. The user can use the element property table to
set the minimum & maximum value, low & high limit and element color, etc. It can be used to display the size
of the set address and quickly judge its quantity by the increment and decrement measure of area. If the
value of the address is less than the lower limit or higher than the high limit, it can change its color to show
clearly for the user to recognize and give a warning to the user.

Read Address

The address can be internal memory or the controller address. (Please refer to Table
3.2.2 Property Description of General Buttons.)

Text / Text Size
Font / Text Color

The user can set the text, text size, font and text color that provided by Windows® to
determine the text display on the element. (Please refer to Table 3.2.2 Property
Description of General Buttons.)

Border Color
Foreground Color
Background Color

It is used to set the border color, foreground and background color of the pie element.
For example, the border color of the following example pie element is in blue, and the
foreground color is set to green and its background color is in yellow.

Standard

Raised

Sunken

Transparent

Style

Data Length There are 16bits Word and 32bits

Double Word two options.

There are following data format
provided:

Word/Double Word

Data Format

1. BCD
2. Signed

BCD

3. Signed

Decimal

4. Unsigned

Decimal

5. Hex

Minimum
Value

Detail Setup

Maximum
Value

It is used to set the minimum and
maximum value of the pie element.
