Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-36

Revision Apr. 30th, 2007, 2007PDD23000002

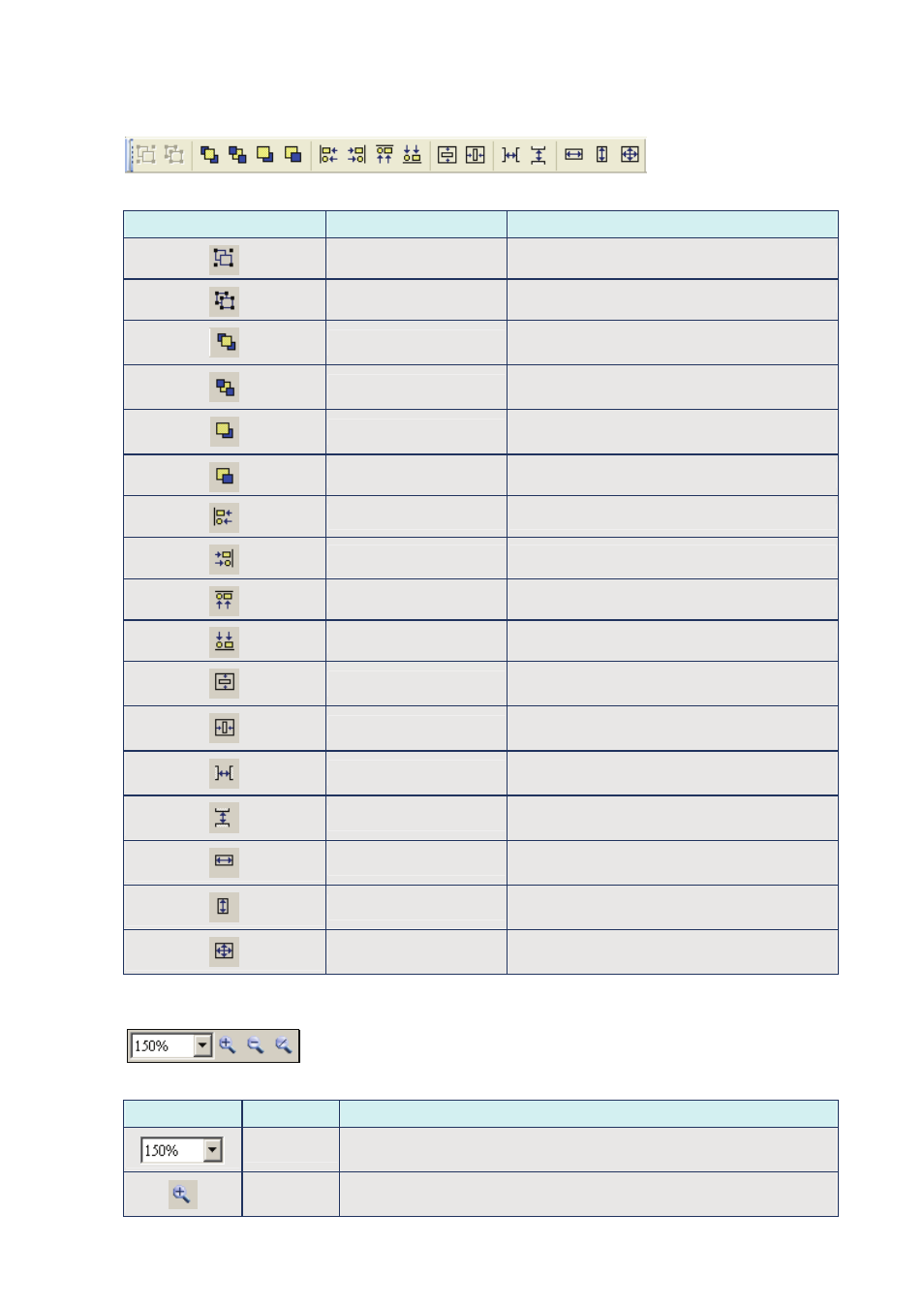

Layout Toolbar

Table. 2.5.6 Layout toolbar

Icon

Function

Description

Group

Group the selected elements

Ungroup

Ungroup the selected elements

Bring to Front

Move the selected element to the front of all
other elements

Send to Bottom

Move the selected element behind all other
elements

Bring Forward

Move the selected element forward one
position

Send Backward

Move the selected element behind one position

Align Left

Align the selected elements to left

Align Right

Align the selected elements to right

Align Top

Align the selected elements to top

Align Bottom

Align the selected elements to bottom

Center Vertically

Set the element to be the vertical position of
the work place

Center Horizontally

Set the element to be the horizontal position of
the work place

Across Space Evenly

Make all the elements align in a consistent
width

Down Space Evenly

Make all the elements align in a consistent
height

Make Same Width

Make the selected elements to be the same
width

Make Same Height

Make the selected elements to be the same
height

Make Same Size

Make the selected elements to be the same
size

„

Zoom Toolbar

Table. 2.5.7 Zoom toolbar

Icon

Function

Description

Display Level

Lets the user set a zoom level, including 25%, 50%, 75%, 100%, 150%,
200% and 300%

Zoom In

Lets the user change the magnification level, including 150%, 200%
and 300%.
