Chapter 4 Macro Function|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002
4-13

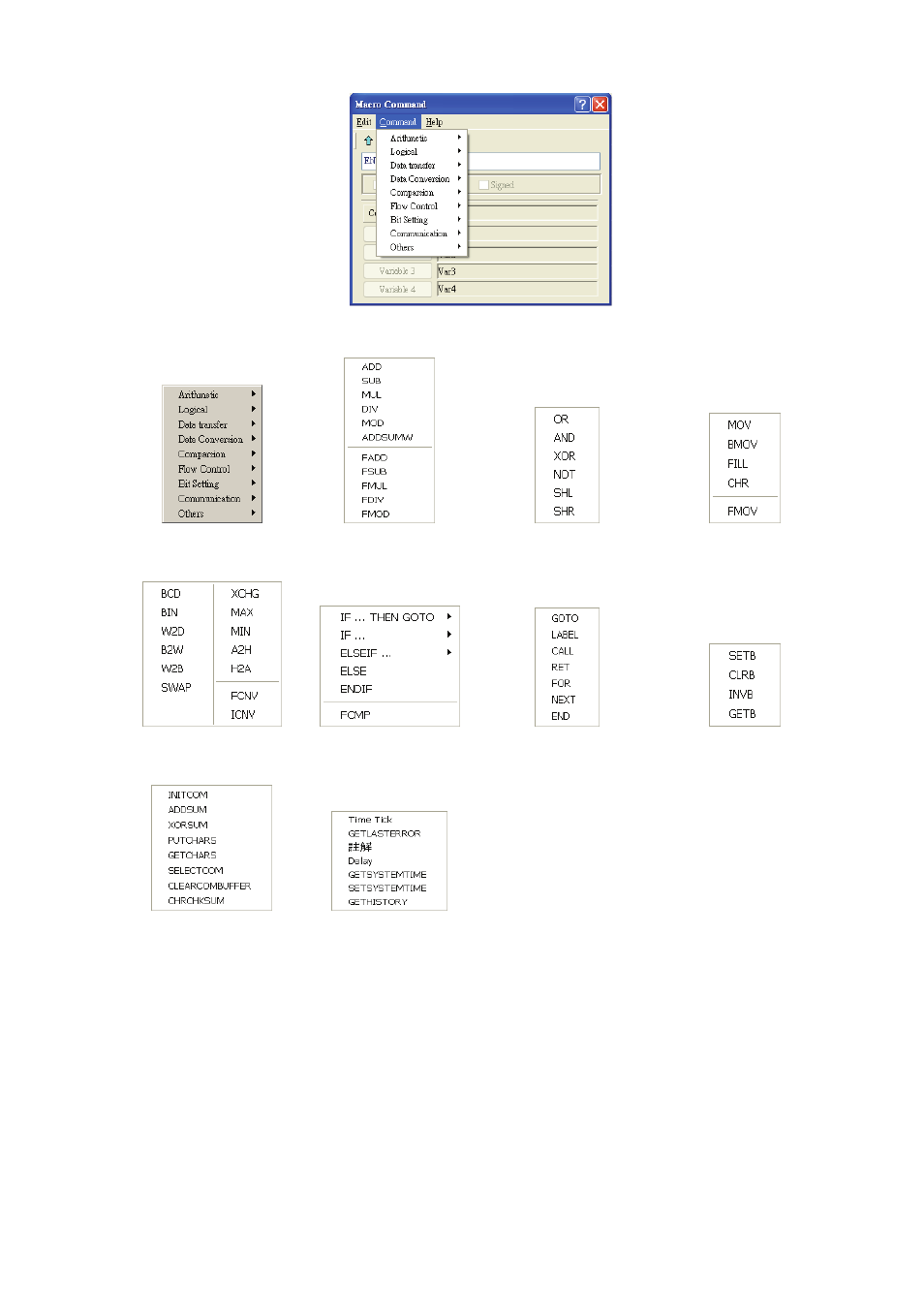

Fig. 4.2.13 Command option in Macro Command dialog box
Fig. 4.2.14
Commands options
Fig. 4.2.15
Arithmetic
Fig. 4.2.16
Logical
Fig. 4.2.17
Data transfer
Fig. 4.2.18
Data conversion
Fig. 4.2.19
Comparison
Fig. 4.2.20
Flow control
Fig. 4.2.21
Bit setting
Fig. 4.2.22
Communication
Fig. 4.2.23
Others
Keypad
For the convenience of editing macro, ScrEdit allows the user to edit Macro by using keypad (key in
manually). ScrEdit will check the validity automatically. If there are any errors, a warning dialog box will
pop up to remind the user. There are no limit spaces between operand and operation symbol for the
user to key in. After finishing inputting, ScrEdit will convert the macro to the best format automatically
after updating the macro or pressing Enter key. But please notice that ScrEdit has not verified the
macro yet at this time.
