Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-117

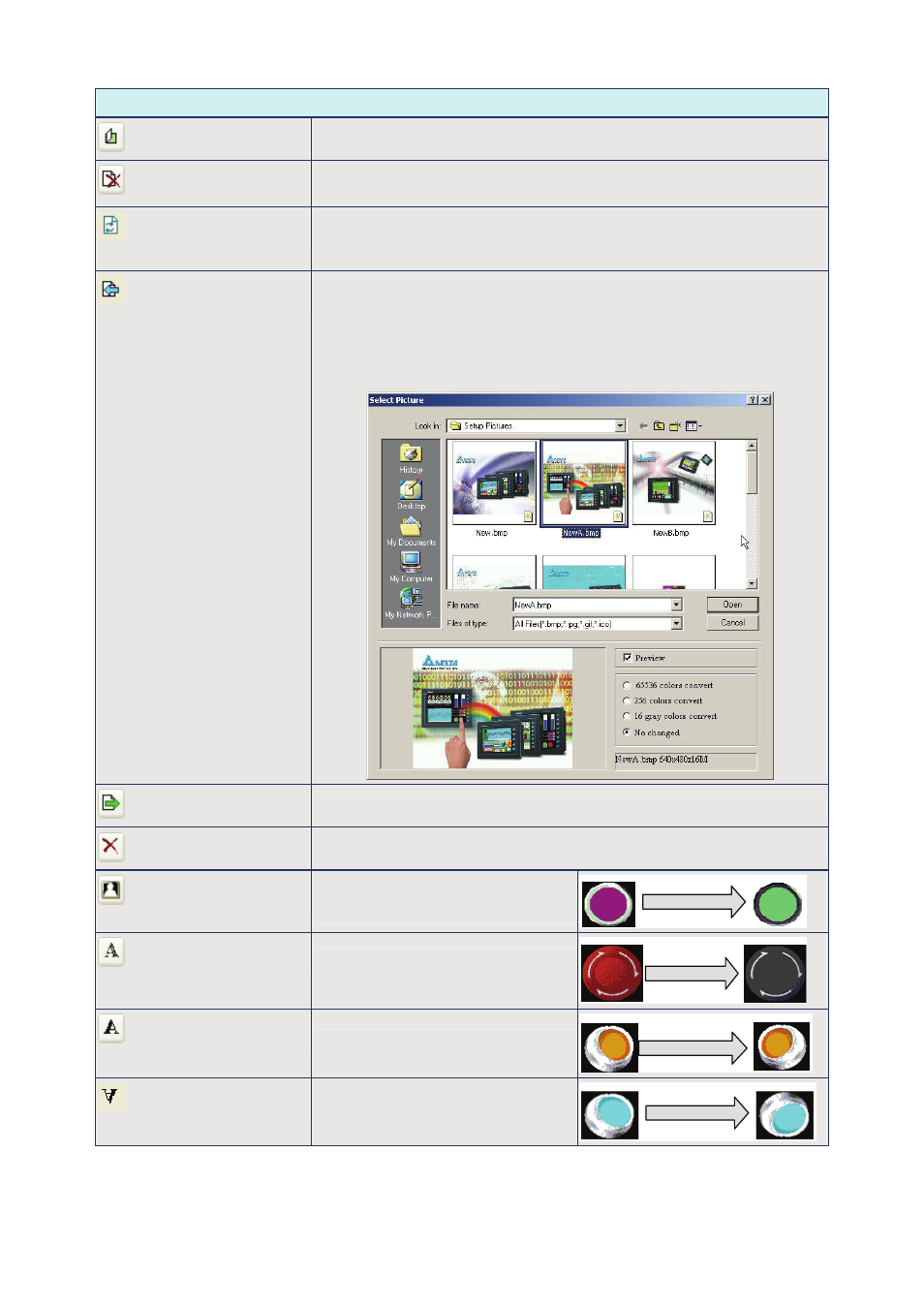

Picture Bank Browse Dialog Box

Install

Open a picture bank file (*.pib file).

Uninstall

Uninstall the selected picture bank. The uninstall picture bank will be
moved to Recycle Bin.

Update

Save the modified picture into the picture bank. This button must be
pressed after modifying picture; otherwise the modification will be lost and
the modified picture will not be saved.

Import

Import pictures into the designated picture bank.
The formats of the pictures in the picture bank can be BMP, JPG,
GIF(static) and ICON pictures. When selecting this function, the dialog box
shown above will display. Then, the user can convert the picture color in
advance to speed the compile time or choose “No changed” option to
remain the original color.

Export

Export pictures in BMP format from the picture bank.

Delete

Delete pictures in the picture bank.

Inverse

Inverse the picture color. Negative
effect.

Grayscale

Convert the colorful picture to 256
grayscale color.

Horizontal Mirror

Horizontal mirror effect.

Vertical Mirror

Vertical mirror effect.

Vertical mirror effect

Inverse effect

Horizontal mirror effect

Grayscale effect
