Chapter 7 Example Explanation|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

7-9

• In the Text portion for each button type in ON and OFF for each Button then the user will see the

effect when using them and know which one to select.

• Select the Icon to download it to the HMI.

• Select the Icon to compile the program.

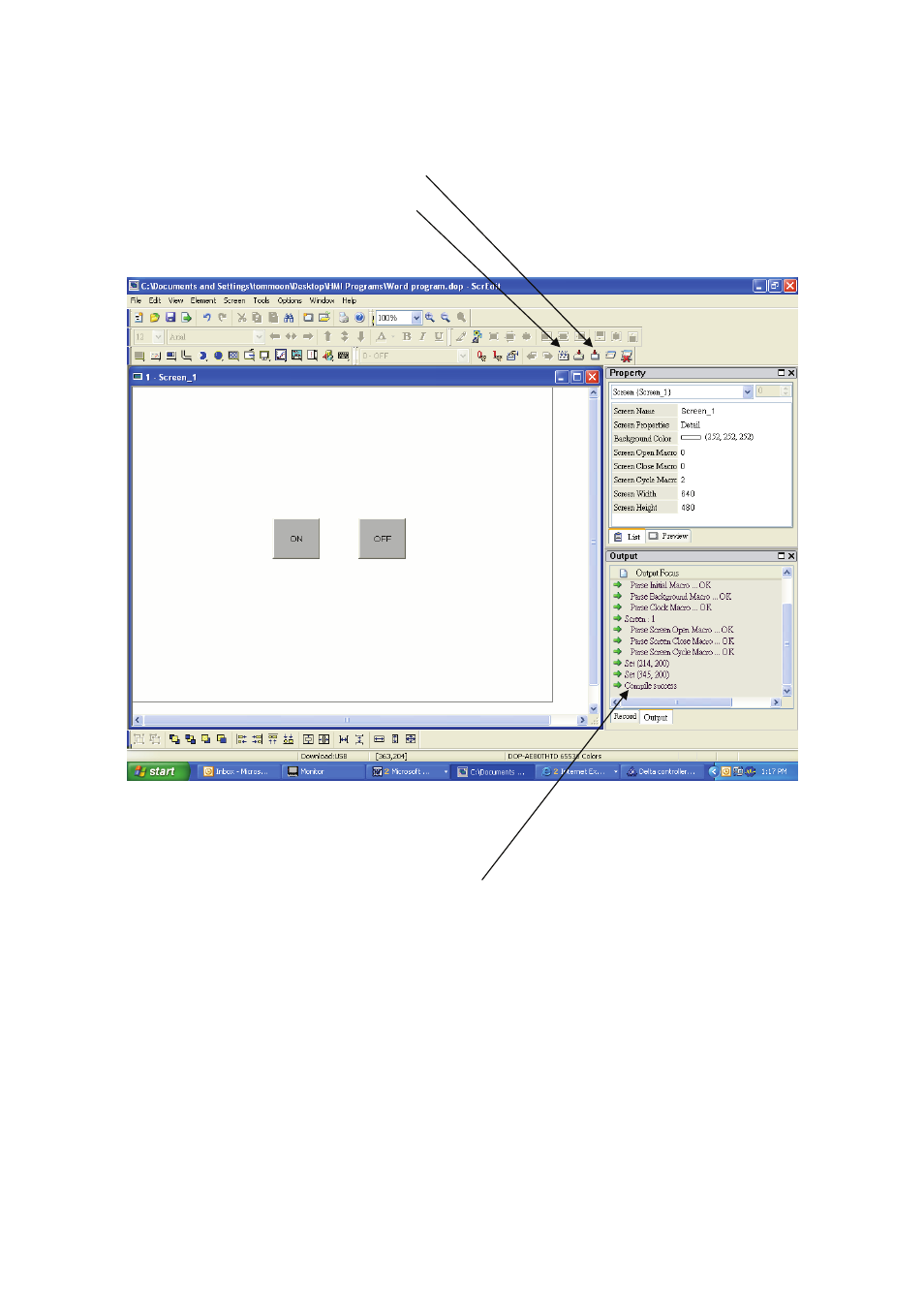

The screen will look like this. See Fig. 7.10

Fig. 7.10

• Note the Compile success in the Output window.

• If there is an error it will appear here.

Then try the program on the HMI screen.
