Chapter 7 Example Explanation|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

7-5

• Select the Edit On Macro

• In the Macro section type in (2@INVERTER-2000) = 2

• This will cause the Drive to turn on when the button is selected.

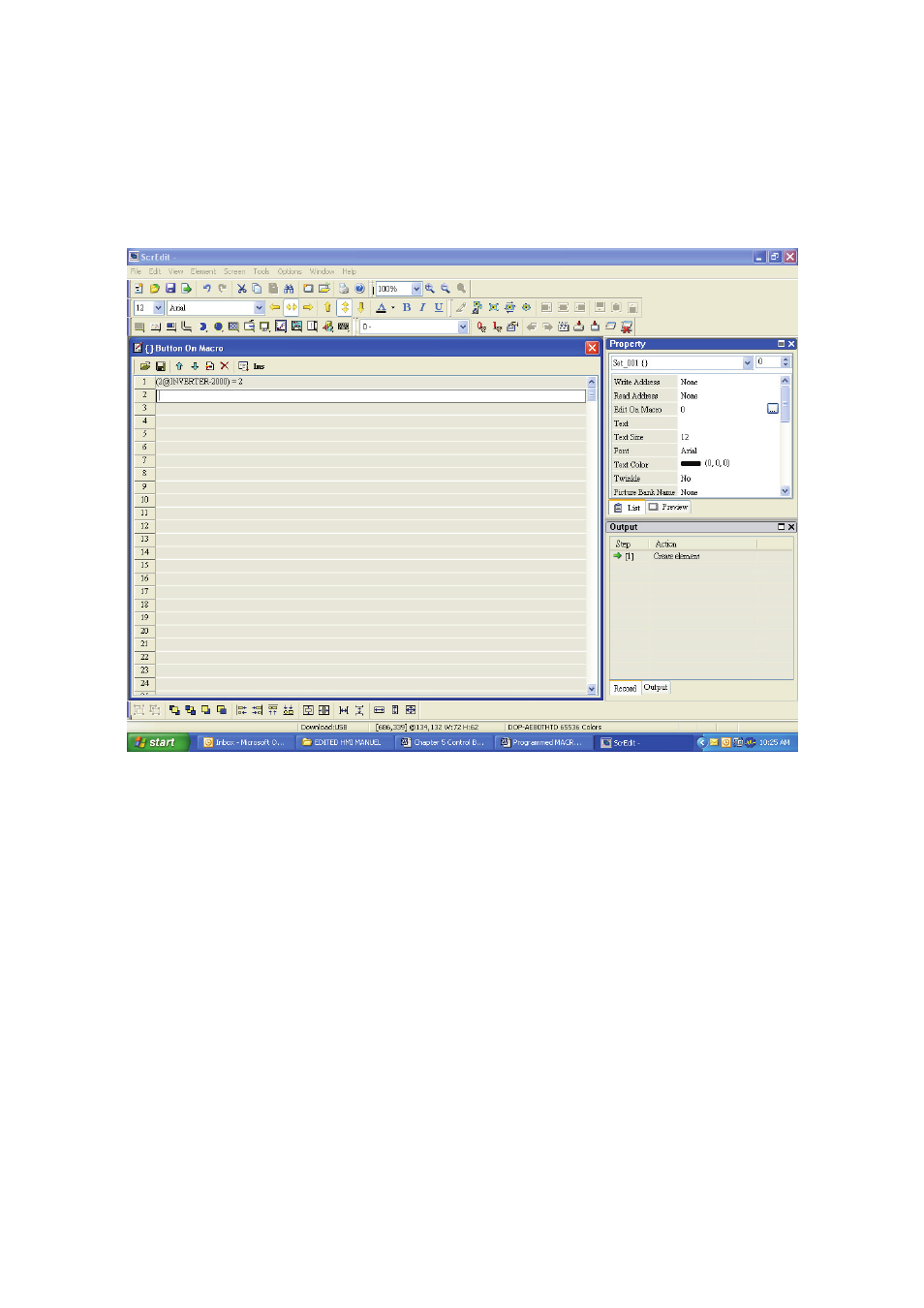

The screen will look like Fig. 7.6.

Fig. 7.6

• Go to the Screen drop down and at the bottom select Screen Cycle Macro

• Type in (2@INVERTER-0200) = 3

• Type in (2@INVERTER-0201) = 4

• This set’s up the drive to accept control from the HMI via RS485 communication.

In the Screen Cycle Macro the user must set-up the Drive to accept the commands coming from the

HMI.

The screen will look like Fig. 7.7.
