Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-79

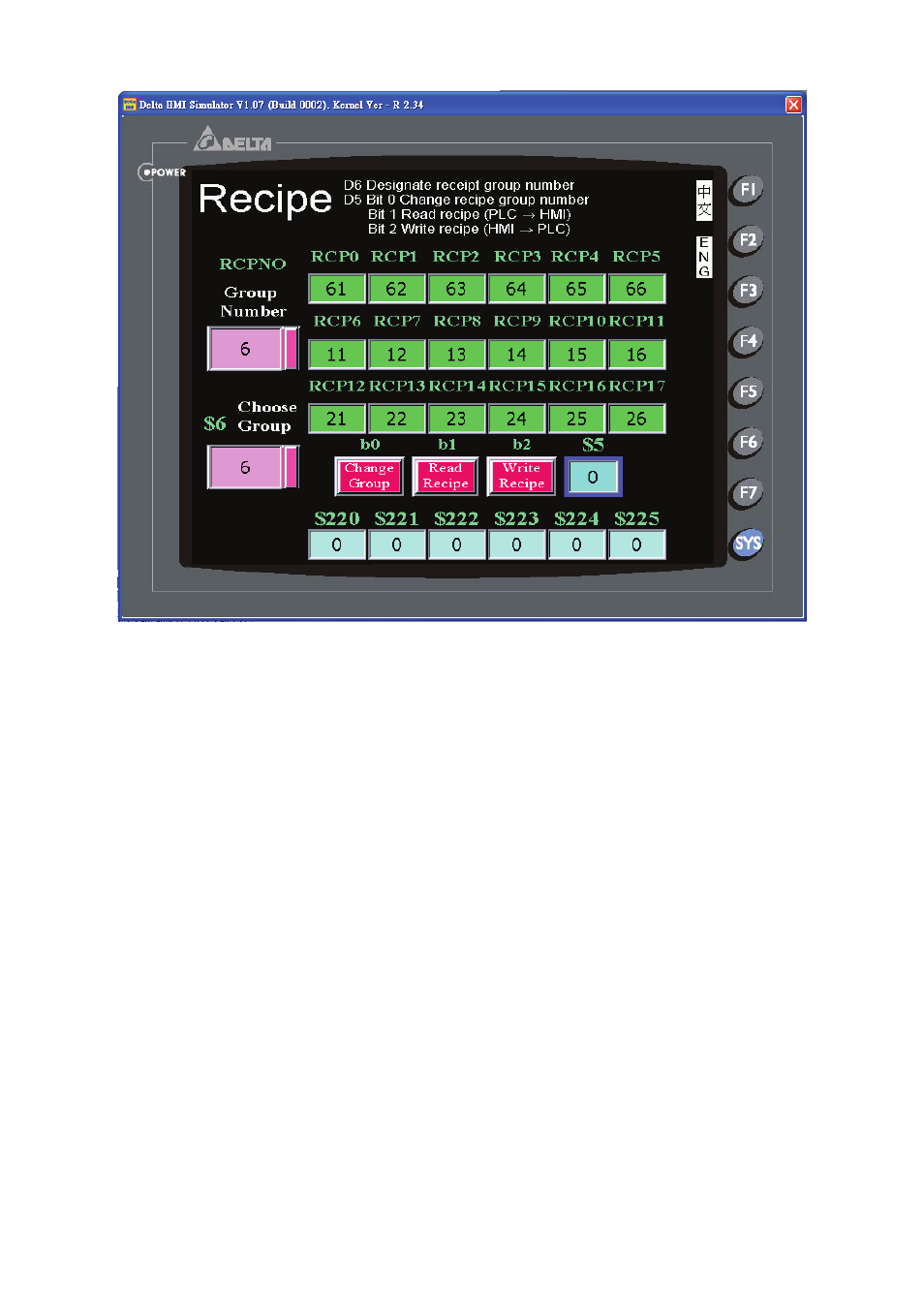

Fig. 2.8.28 Recipe Example

When the user select “Enable Recipe” option in Recipe Setup dialog box, there are RCP and RCPNO

two kinds of device types available for the user to select in Input dialog box (See the following Fig.

2.8.29). RCPNO is used to change the recipe group and RCP is used to store the recipe data. The

content of recipe register depends on the recipe data set by the user. The recipe changes, the recipe

register also changes. In this example, RCP0 ~ RCP17 are recipe registers and HMI will store the

recipe data set by the user in these recipe registers. If these registers have the corresponding recipe

set by the user, HMI will create recipe data into the internal recipe register automatically and select the

value in Input dialog box (See the following Fig. 2.8.29). $220 ~ $225 are the destination addresses

that are used to store the recipe data (Generally, the recipe data are set to be stored in the addresses

of external controller registers, but for the convenience of simulation operation, we set the recipe

storage address in the internal memory). $5 is used to display the status of Recipe Control Register

(RECR). Write Recipe ($5.2) button is used to execute write recipe operation. When this button is

pressed, HMI will write the recipe data from HMI recipe register RCP into the designated recipe storage

address ($220 ~ $225). Read Recipe ($5.1) button is used to execute read recipe operation. When this

button is pressed, HMI will read recipe data of recipe storage address ($220 ~ $225) back to HMI

recipe register RCP. $6 is RBIR, i.e. Designated Recipe Group Number Register and its function is the

same as the function of RCPNO. The difference between these two registers is that RCPNO is a fixed

address of HMI internal memory, but the address of RBIR can be changed according to the setting of

control block (See 2.8.27 on previous page).
