Altera Video and Image Processing Suite User Manual
Page 244

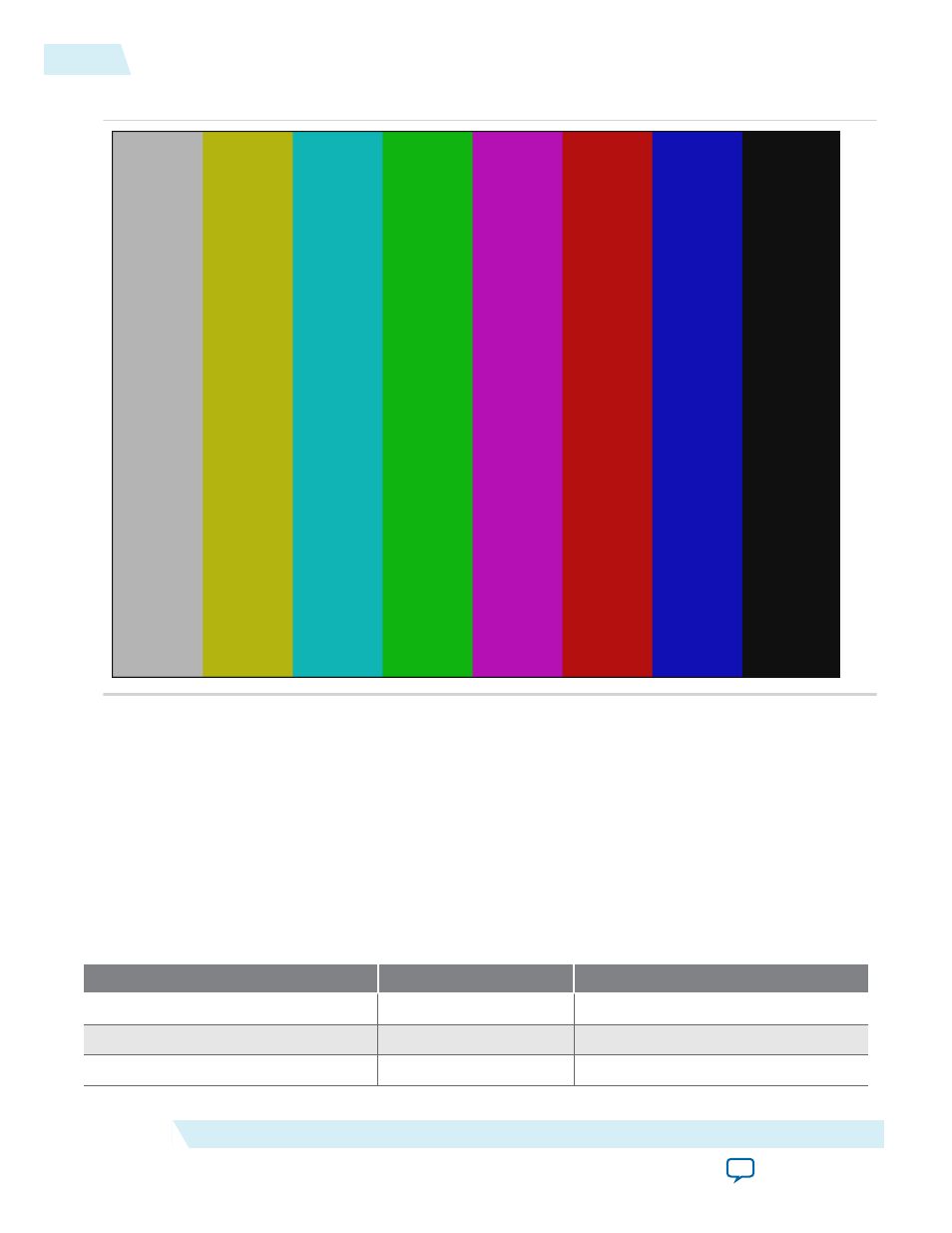

Figure 19-1: Color Bar Pattern
The sequence to produce a static image runs through the eight possible on or off combinations of the
three color components of the RGB color space starting with a 75% amplitude white.
• Green: on for the first four bars and off for the last four bars
• Red: cycles on and off every two bars
• Blue: cycles on and off every bar
Table 19-1: Test Pattern Color Values
The table below lists the actual numerical values—assuming 8 bits per color samples.
Note: If the output is requested in a different number of bits per color sample, these values are converted by
truncation or promotion.
Color
R'G'B'
Y'CbCr
White/Grey
(180,180,180)
(180,128,128)
Yellow
(180,180,16)
(162,44,142)
Cyan
(16,180,180)
(131,156,44)
19-2
Test Pattern
UG-VIPSUITE
2015.05.04
Altera Corporation
Test Pattern Generator IP Cores
