Creating and Starting a Test Case
SONET/SDH Application 75
Typical Test Cases
Creating an Electrical DS1 Test Case in NI/CSU
Emulation Mode (IQS-8105/15/20/30)
The following procedures describe the creation of an electrical DS1 test
case in NI/CSU Emulation mode.
To create an Electrical DS1 Test in NI/CSU Emulation mode:

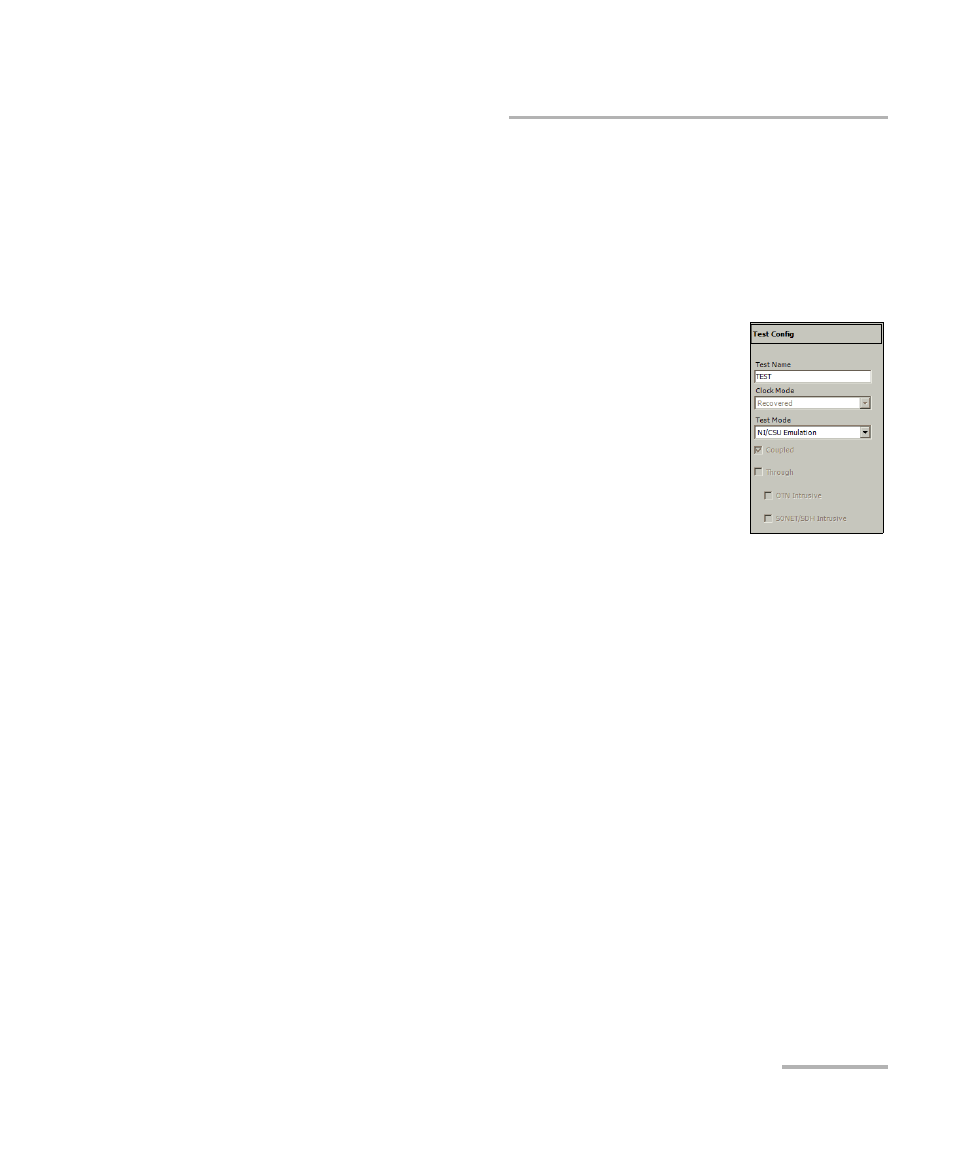

1. Test configuration:
1a. Select NI/CSU Emulation as the Test Mode:
Normal. Refer to Test Configuration on page 126
for more information. The Coupled check box
must be selected to allow NI/CSU Emulation
mode selection.
The Clock Mode is automatically set to
Recovered. Refer to Clock Configuration on
page 129 for more information.
1b. Press Next.
2. Interface connector selection:
2a. From the data path selector, press the desired electrical interface
connector: Bantam or RJ-48c.
2b. Press Next.
