Preface
Advanced Programming Software User Manual
16–6
3. The status line identifies the current mode; REM Run, REM Test (SSN, CSN, or
SRG), or REM Program. If you are in the REM Run or any of the REM Test
modes, when you enter the type of program you want to edit, the message:
WARNING: PROCESSOR NOT IN PROGRAM MODE, DATA TABLE
VALUES MAY BE CHANGING
is displayed.
You are asked whether you want to proceed with the upload or not.
Note If you proceed with the upload, the processor remains in the REM Run state after
the upload.
Press
CONFIG OFFLINE
CONFIG
PROCEED
F8
to proceed, or
CONFIG OFFLINE
CONFIG
NO
F10
to cancel the edit.
4. The message: READING PROCESSOR PROGRAM; ...Working... is

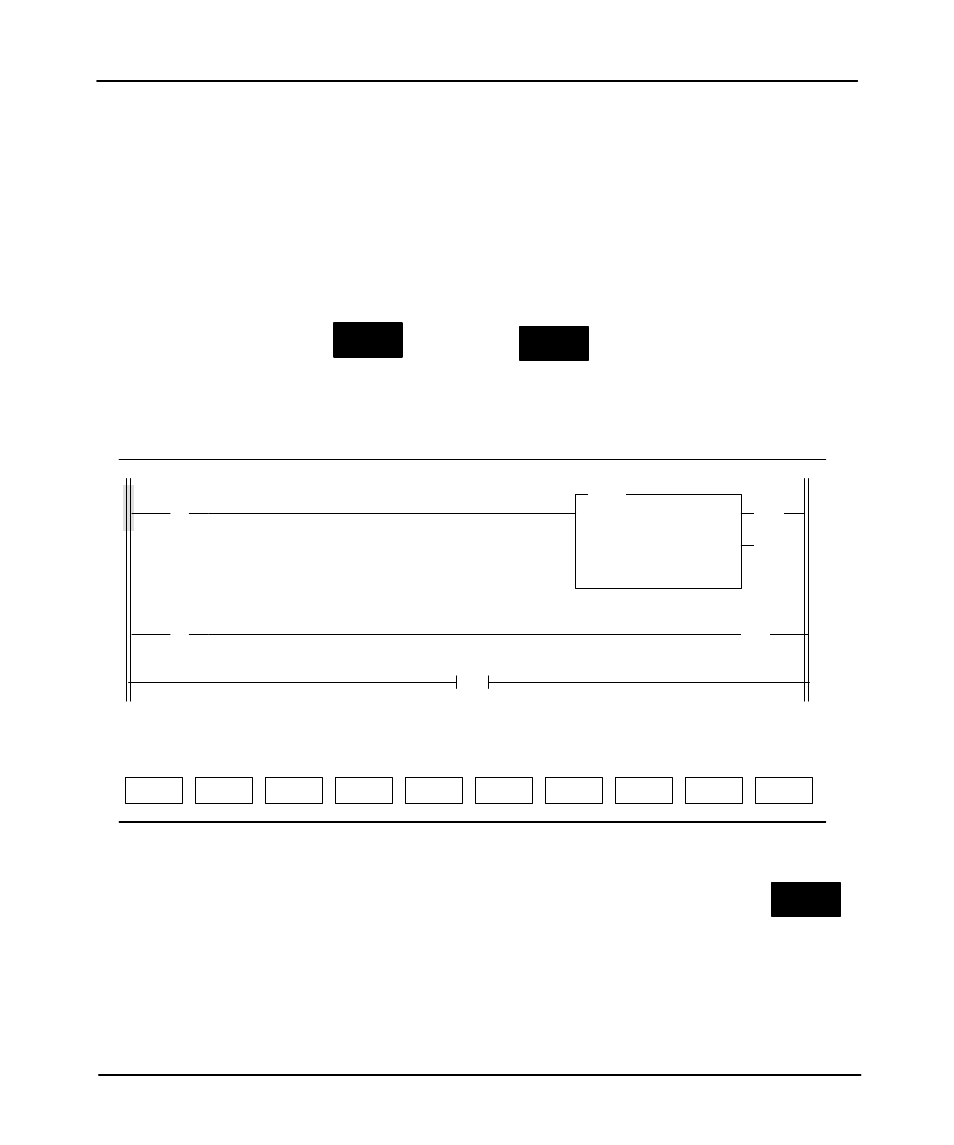

displayed. After the program has been read, the edit display appears:
Press a key for desired editing function
(file 2, rung 0)
offline
no forces EDITS: NONE File 200
F3
APPEND
RUNG
F6 F7
DELETE
RUNG
UNDEL
RUNG
F8
ADVANCD
EDITING
F9
TEST
EDITS
F1
SAVE/GO
ONLINE
F4
INSERT
RUNG
F5
MODIFY
RUNG
] [
I:0.0
0
(EN)
(DN)
TON
TIMER ON DELAY
Timer
EIGHT_SEC
Time Base 0.01
Preset 800
Accum 0
] [
T4:0
DN
( )
O:0.0
IN
OUT EIGHT
0
END
F2
ONLINE
CONFIG
F10
CANCEL
EDITS
5. Edit the ladder program. When done, accept the changes and press
CONFIG OFFLINE
CONFIG
SAVE/GO
ONLINE
F1
.
SLC 5/03 and SLC 5/04 Processors — If edits are not assembled or canceled
and the ladder program is saved, rungs marked with edit zones have the edit
zones saved into the ladder program.
