Fourth byte (Proactive SIM):

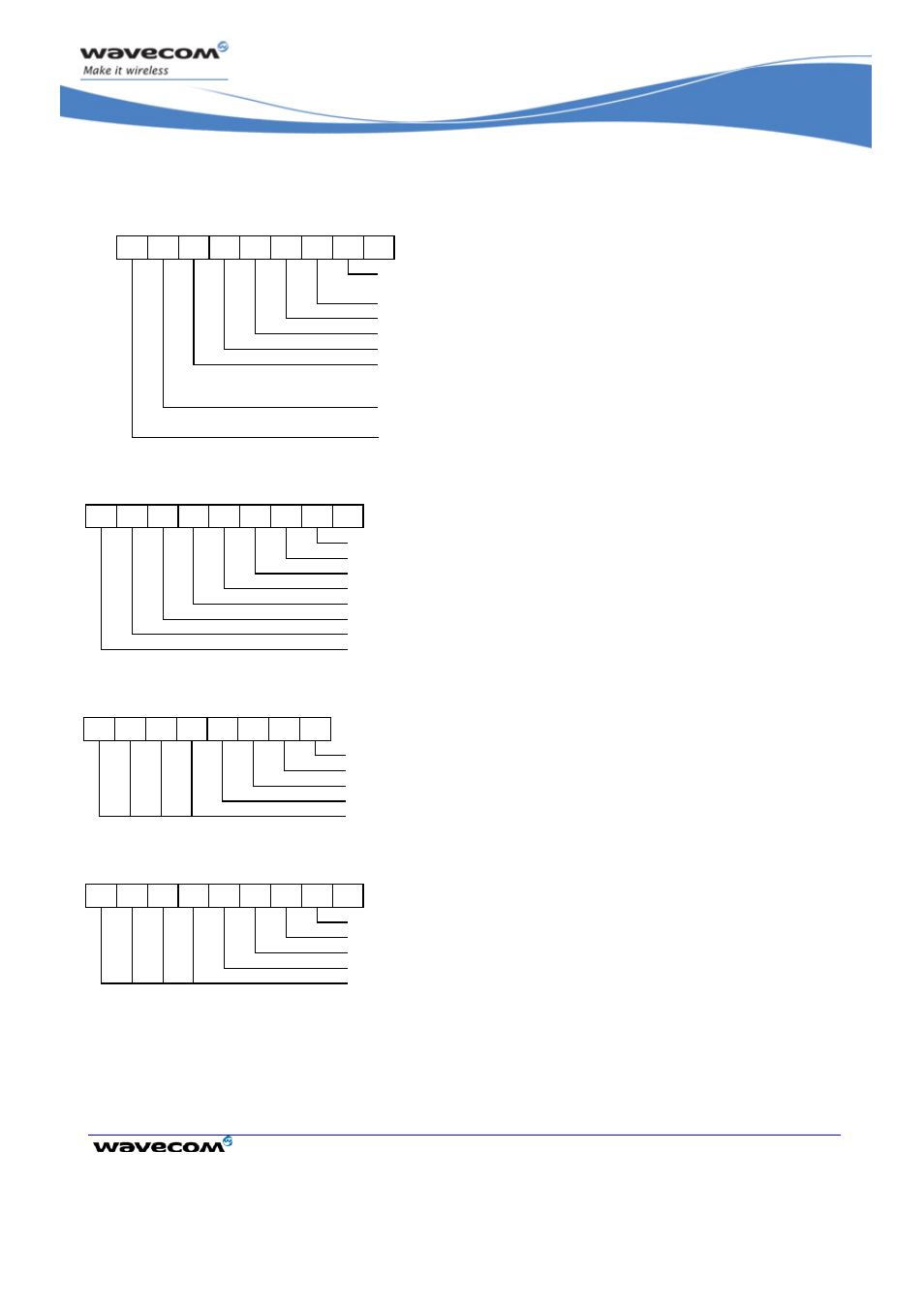

b8 b7 b6 b5 b4 b3 b2 b1
Proactive SIM: SELECT ITEM User choice
Proactive SIM: SEND SHORT
MESSAGE
User choice
Proactive SIM: SEND SS User choice
Proactive SIM: SEND USSD User choice
Proactive SIM: SET UP CALL User choice
Proactive SIM: SET UP MENU User choice
Proactive SIM: PROVIDE LOCAL
INFORMATION (MCC, MNC, LAC,
Cell ID & IMEI)
Set by product to 1
Proactive SIM: PROVIDE LOCAL
INFORMATION (NMR)
Set by product to 1
Fifth byte (Event driven information):
b8 b7 b6 b5 b4 b3 b2 b1
Proactive SIM: SET UP EVENT LIST Set by product to 1
Event: MT call Set by product to 1
Event: Call connected Set by product to 1
Event: Call disconnected Set by product to 1
Event: Location status Set by product to 1
Event: User activity User choice
Event: Idle screen available User choice
Event: Card reader status Set by product to 0
Sixth byte: (reserved for Event driven information extensions)
b8 b7 b6 b5 b4 b3 b2 b1
Event: Language selection Set by product to 1
Event: Browser Termination Set by product to 0
Event: Data available Set by product to 0
Event: Channel status Set by product to 0
RFU, bit = 0
Seventh byte (Multiple card proactive commands) for class "a"
b8 b7 b6 b5 b4 b3 b2 b1
Proactive SIM: POWER ON CARD Set by product to 0
Proactive SIM: POWER OFF CARD Set by product to 0
Proactive SIM: PERFORM CARD APDU Set by product to 0
Proactive SIM: GET READER STATUS Set by product to 0
RFU, bit = 0
