Modular Block System: Hydraulic Presses 6-11
Input coding of selector switch (mode 2 from 6):
• RSet: Reset input for error acknowledgement
RSet = 0/1 signal edge: Reset occurs
• LOCK: Lock switch position
LOCK = 0: Switch position unlocked
LOCK = 1: Switch position locked
If the switch position changes, an error will be
triggered immediately. The parameter
LOCK can
be allocated the flag “Machine running” or “Press
safety valve: on” (input parameter
EIN from
SB 080), for example.
• TIME: Maximum permitted contact switchover time between two
correct switch settings.
Permitted time range: 1 ... 1023 ms
INFORMATION
If possible you should use the PSS(1) DI2 as input module.
If this is not possible, the inputs must use test pulses.

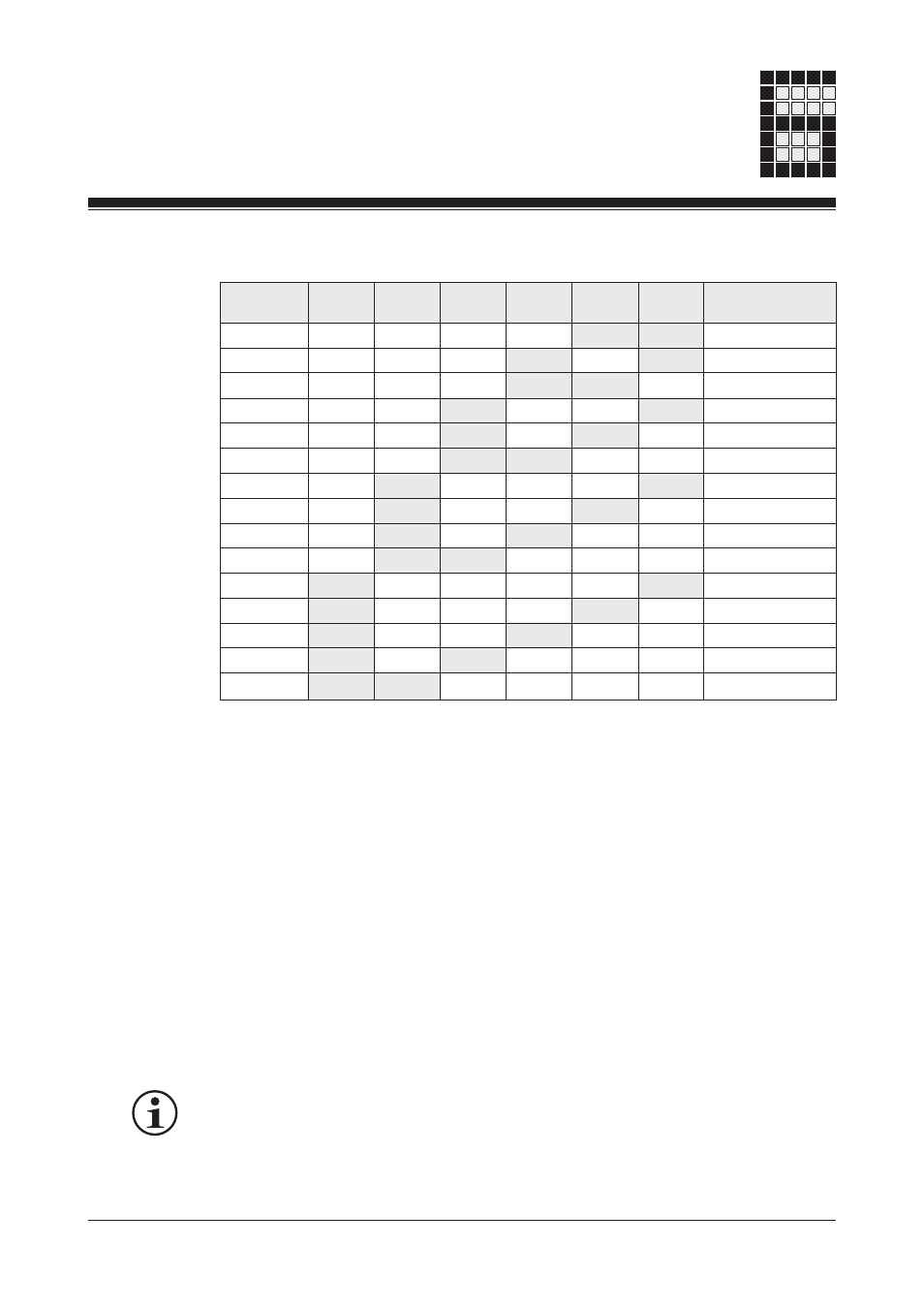

Position S6 S5 S4 S3 S2 S1 Dec. Value
1 0 0 0 0 1 1 3
2 0 0 0 1 0 1 5
3 0 0 0 1 1 0 6
4 0 0 1 0 0 1 9
5 0 0 1 0 1 0 10
6 0 0 1 1 0 0 12
7 0 1 0 0 0 1 17
8 0 1 0 0 1 0 18
9 0 1 0 1 0 0 20
10 0 1 1 0 0 0 24
11 1 0 0 0 0 1 33
12 1 0 0 0 1 0 34
13 1 0 0 1 0 0 36
14 1 0 1 0 0 0 40
15 1 1 0 0 0 0 48
