Chapter 2: Front panel programming
E-FSA64 and E-FSA250 Technical Reference Manual 53
By default, the buttons are not programmed. The buttons can be labeled to
indicate their function with a slip-in label. To operate the buttons, you must be
logged on with a level one password or greater.

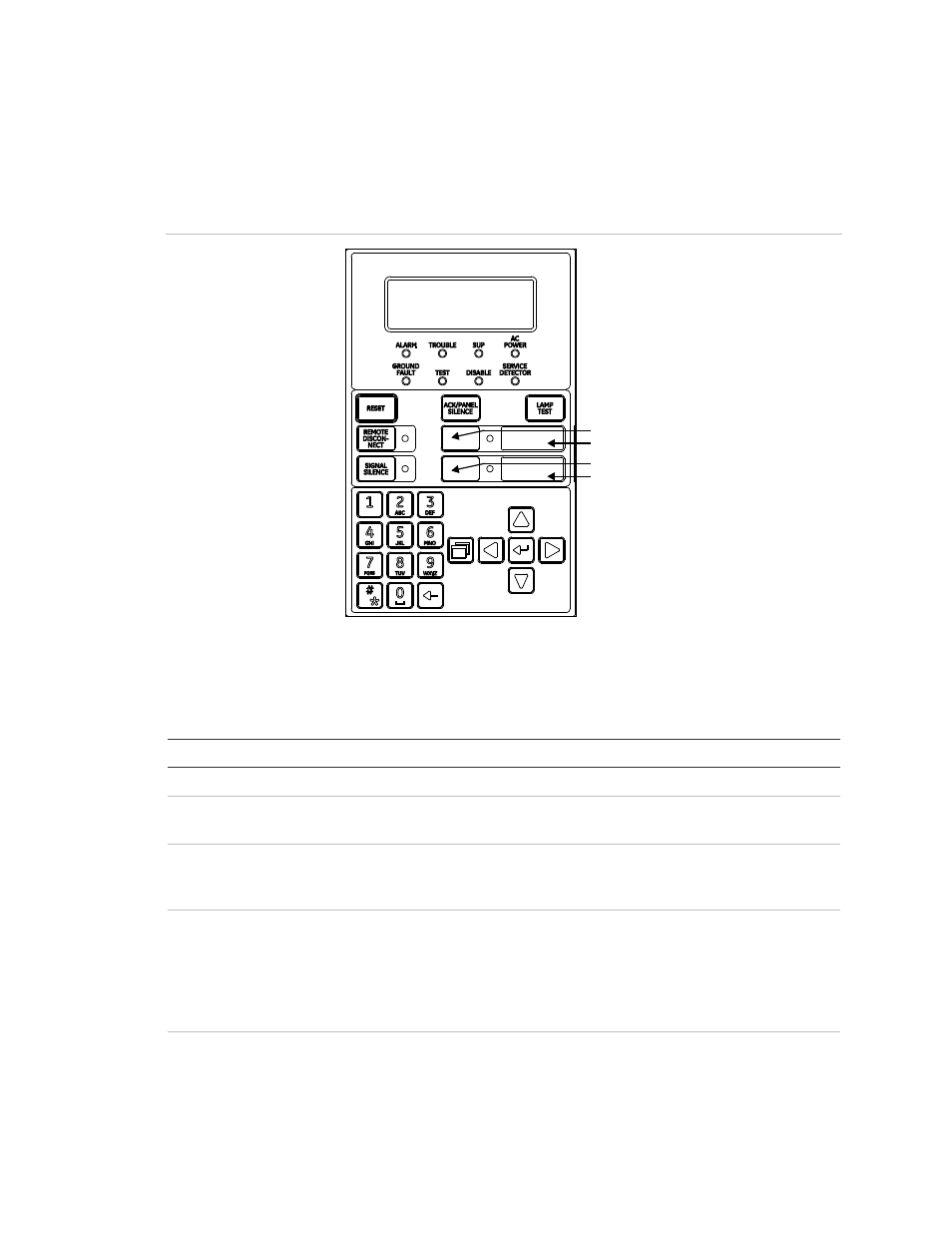

Figure 45: Programmable keys
Key 1
Key 1 label
Key 2
Key 2 label
00:00:00 01/01/07
,
Note: You cannot program a key while it is active. When the “Key is active”
message is displayed, wait until the key deactivates before continuing.
Table 19: Programmable key functions
Function
Option Behavior when user key is pressed
None User key does not respond.
Activate Activates the outputs that belong to the correlation groups
associated with the user key.
Disable Members Disables all of the devices, NACs, and zones that belong to
the correlation groups associated with the user key with an
option of “Members.”
Disable Group Disables the correlation groups associated with the user
key with an option of “Group.” The devices, NACs, and
zones that belong to the correlation group remain enabled.
Disabled correlation groups do not activate even if the
required number of inputs activate. This is typically used to
prevent relay and sounder bases from sounding.
Disable Members + Group Disables all of the devices, NACs, and zones that belong to
the correlation groups associated with the user key with an
option of “Members + Group.” It also disables the
correlation group.
