Chapter 3: System operation
E-FSA64 and E-FSA250 Technical Reference Manual
139
Operation overview
Front panel display
The front panel display is the user interface for the control panel. The display is
comprised of the LCD, LED indicators, and control buttons that are used to
operate and program the panel.

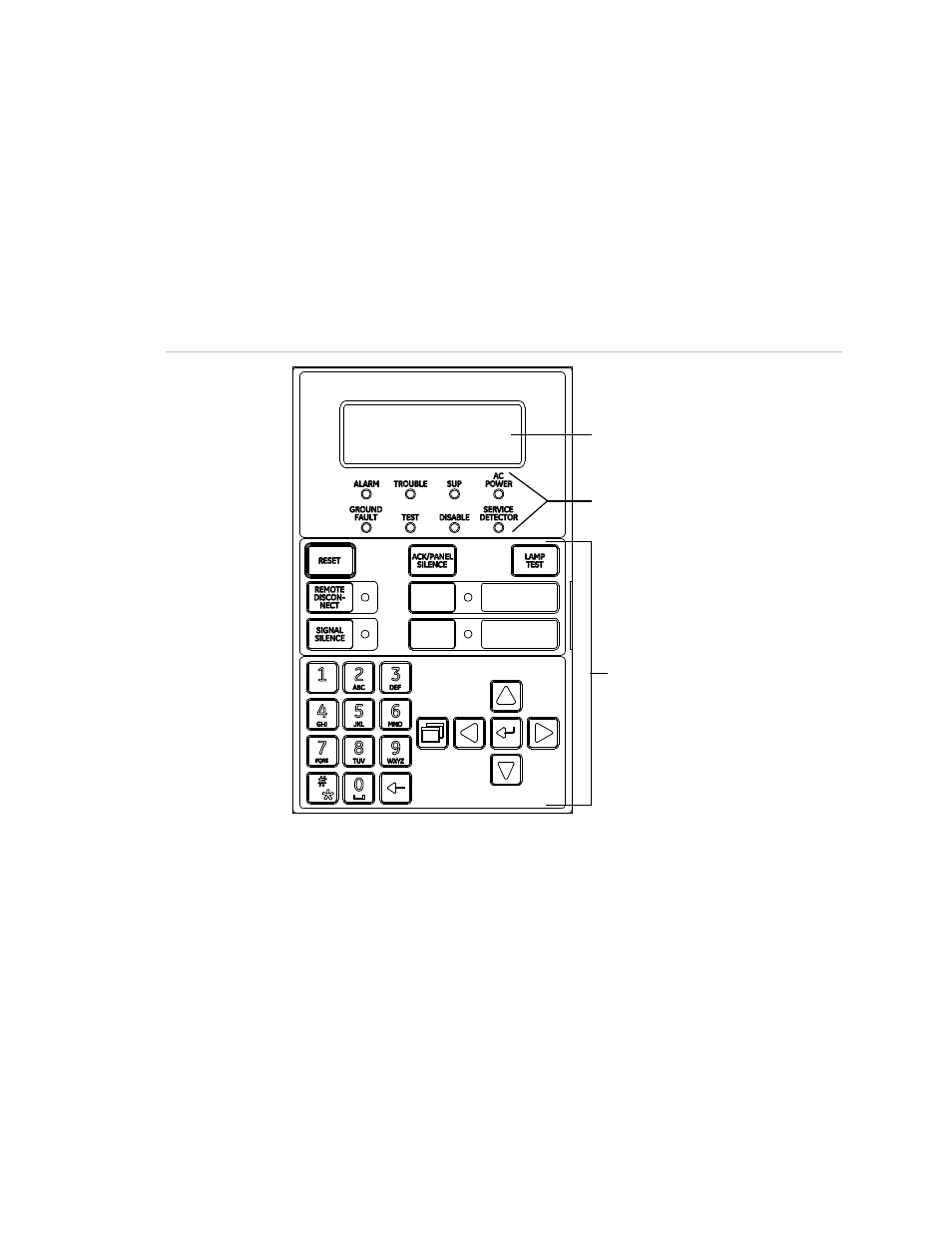

Figure 46: Front panel display layout
00:00:00 01/01/07
LCD display
System LEDs
Control buttons
,
Control panel operations
The control panel operates in either normal mode or off-normal mode.
Normal mode
The panel operates in normal mode in the absence of any alarm, supervisory,
trouble, or monitor events. In normal mode, the control panel monitors the
system. The panel and LCD remote annunciators display the time, date, and
banner text, if programmed.
