Chapter 1: Installation and wiring
8 E-FSA64 and E-FSA250 Technical Reference Manual

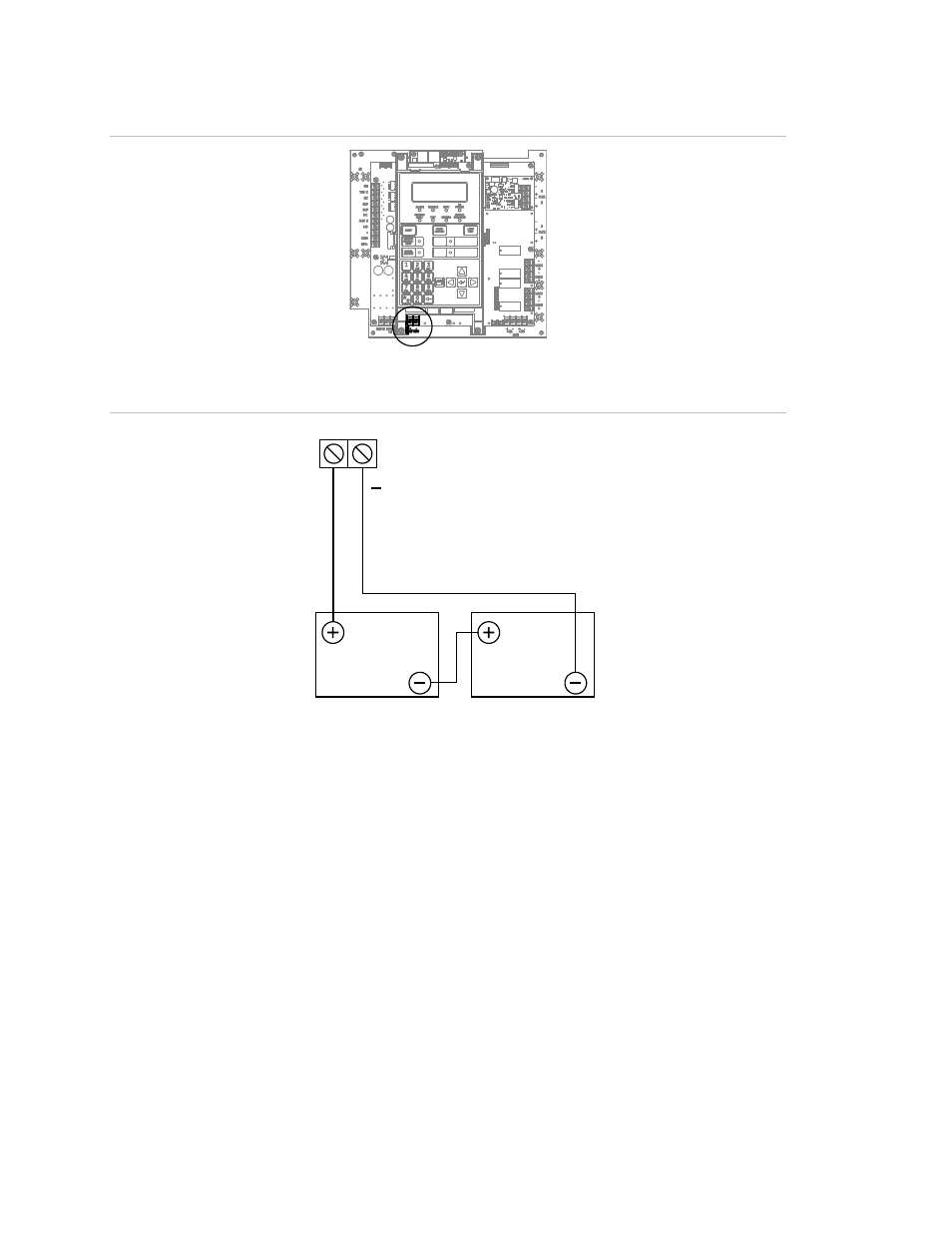

Figure 8: Battery wiring location
Figure 9: Battery wiring
TB8
Red Black
12 VDC
Battery
12 VDC
Battery
+
Notification appliance circuit wiring (TB2)
The control panel provides either two or four notification appliance circuits
depending on which model you have. Each circuit can be individually configured
for continuous, temporal, synchronized, coded, or city tie output.
Circuit specifications
• Class B or Class A.
• Circuit voltage: 24 VFWR, regulated
• Circuit current
Edwards Signaling eFSA64 panel:
3.75 A total, 2.5 A max. per circuit at 120/230 VAC 60 Hz input voltage
3.0 A total, 2.5 A max. per circuit at 230 VAC 50 Hz input voltage
