Extended setpoint channel
2.8 Suppression bandwidths and setpoint limits
Drive Functions
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
59
6XSSUHVVLRQ
EDQGZLGWKV
6SHHGOLPLWLQJPD[ 6SHHGOLPLWLQJPLQ
5DPSIXQFWLRQJHQHUDWRU
0RWRUFRQWURO
0LQ
0D[
U
S>'@
S>'@ S>'@
S'@
S>'@
U
\
[
S
S>&@
S>'@
\ \
U
U
S
S>&@
[ [
\
[
S>'@

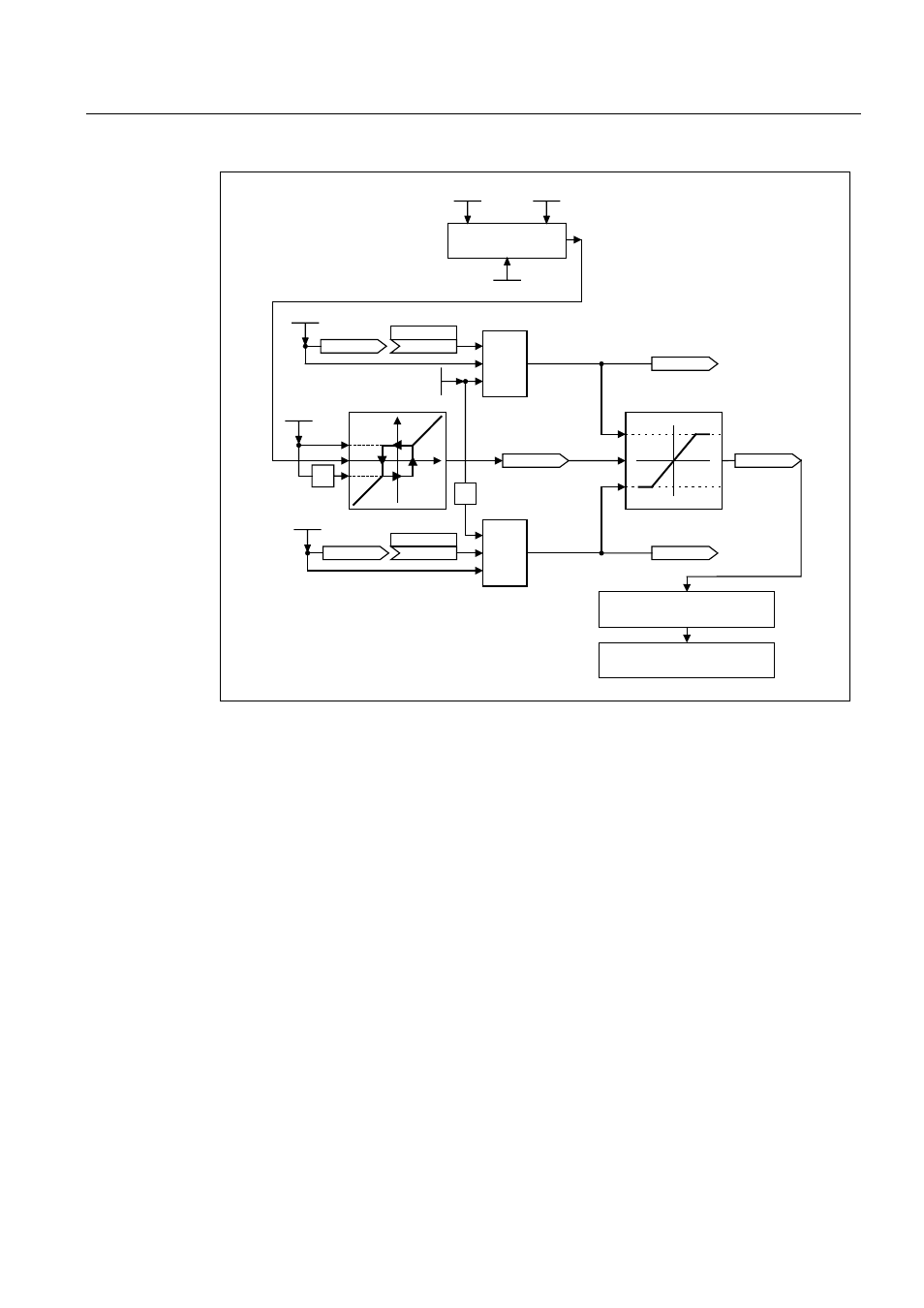

Figure 2-7 Suppression bandwidths, setpoint limitation
Function diagrams (see SINAMICS S List Manual)
● 1550 Setpoint channel
● 3050 Suppression bandwidth and speed limiting
Overview of key parameters (see SINAMICS S List Manual)
Setpoint limitation
● p1080[D] Minimum speed
● p1082[D] Maximum speed
● p1083[D] CO: Speed limit in positive direction of rotation
● r1084 Speed limit positive effective
● p1085[C] CI: Speed limit in positive direction of rotation
● p1086[D] CO: Speed limit negative direction of rotation
● r1087 Speed limit negative effective
