Extended setpoint channel
2.2 Description
Drive Functions
48
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
2.2 Description
In the extended setpoint channel, setpoints from the setpoint source are conditioned for
motor control.
The setpoint for motor control can also originate from the technology controller (see
"Technology controller").
5DPSIXQFWLRQJHQHUDWRU
0RWRUFRQWURO
6HWSRLQWFKDQQHO
6HWSRLQWVRXUFHV
6XSSUHVVLRQEDQGZLGWKV
VHWSRLQWOLPLWDWLRQ
0RWRUFRQWURO
6HUYRYHFWRU
'LUHFWLRQRIURWDWLRQOLPLWLQJ
GLUHFWLRQRIURWDWLRQFKDQJHRYHU
0DLQVXSSOHPHQWDU\VHWSRLQW
VHWSRLQWVFDOLQJ
0DLQVHWSRLQW
6XSSOHPHQWDU\
VHWSRLQW
-RJ )LHOGEXV 6SHHG
IL[HGVHWSRLQWV
$QDORJ
LQSXWV
0RWRUL]HG
SRWHQWLRPHWHU

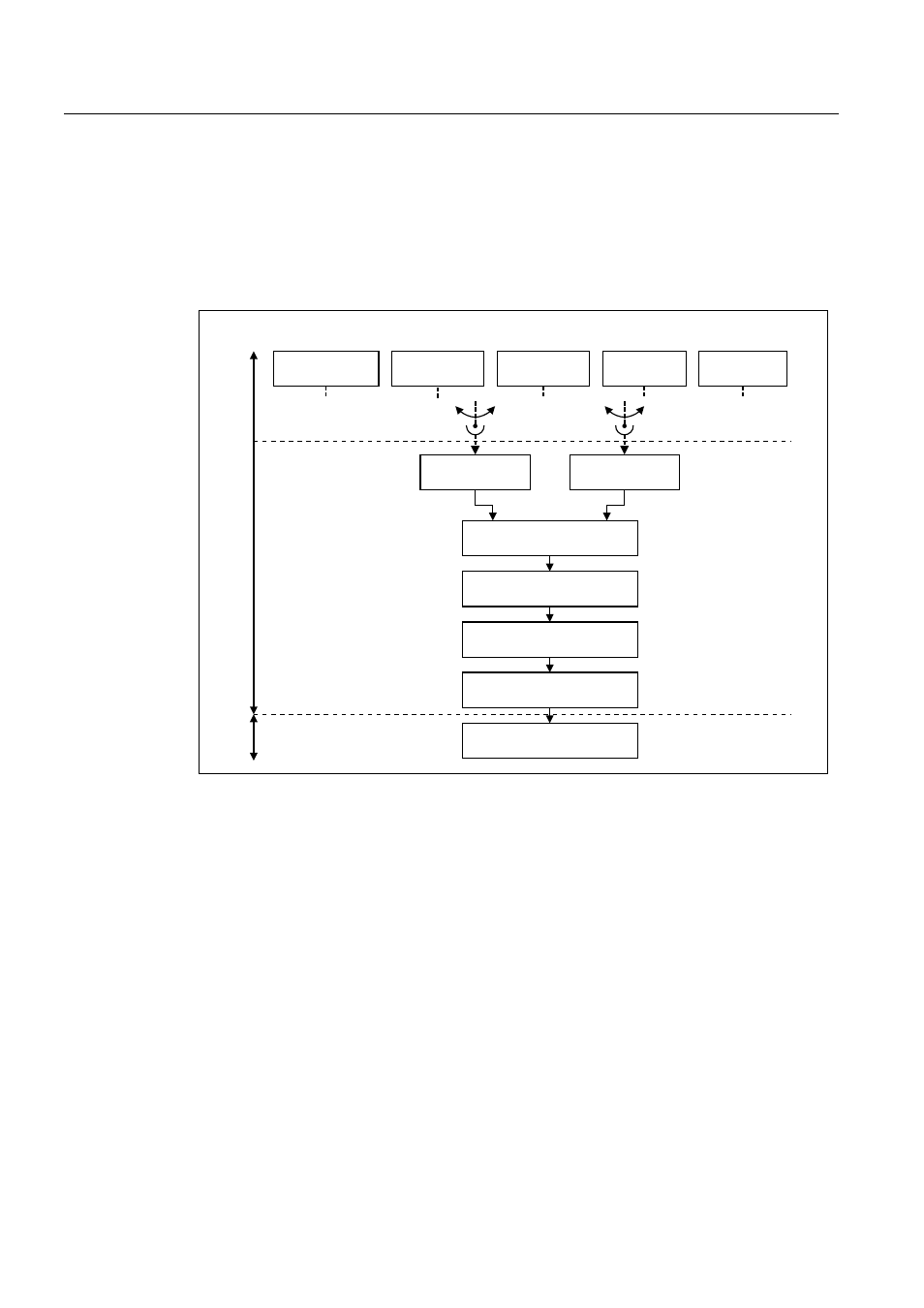

Figure 2-1 Extended setpoint channel
Properties of the extended setpoint channel
● Main/supplementary setpoint, setpoint scaling
● Direction of rotation limiting and direction of rotation changeover
● Suppression bandwidths and setpoint limitation
● Ramp function generator
Setpoint sources
The closed-loop control setpoint can be interconnected from various sources using BICO
technology (e.g. to p1070 CI: main setpoint (see function diagram 3030)).
There are various options for setpoint input:
● Fixed speed setpoints
● Motorized potentiometer
