Vector V/f control (r0108.2 = 0)
5.2 Voltage boost
Drive Functions
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
173
9
DFFHOHUDWLRQ
S9ROWDJHDWDFFHOHUDWLRQ
U&XUUHQWVWDWRUUHVLVWDQFH[
S5DWHGPRWRUFXUUHQW[
9IOLQHDU
2XWSXWYROWDJH
9IQRUPDO
S
QXPEHURISROHSDLUV
9
DFFHOHUDWLRQ
IVHW
5)*
DFWLYH
IPD[
IQ
9PD[
9Q
S
S
9
I

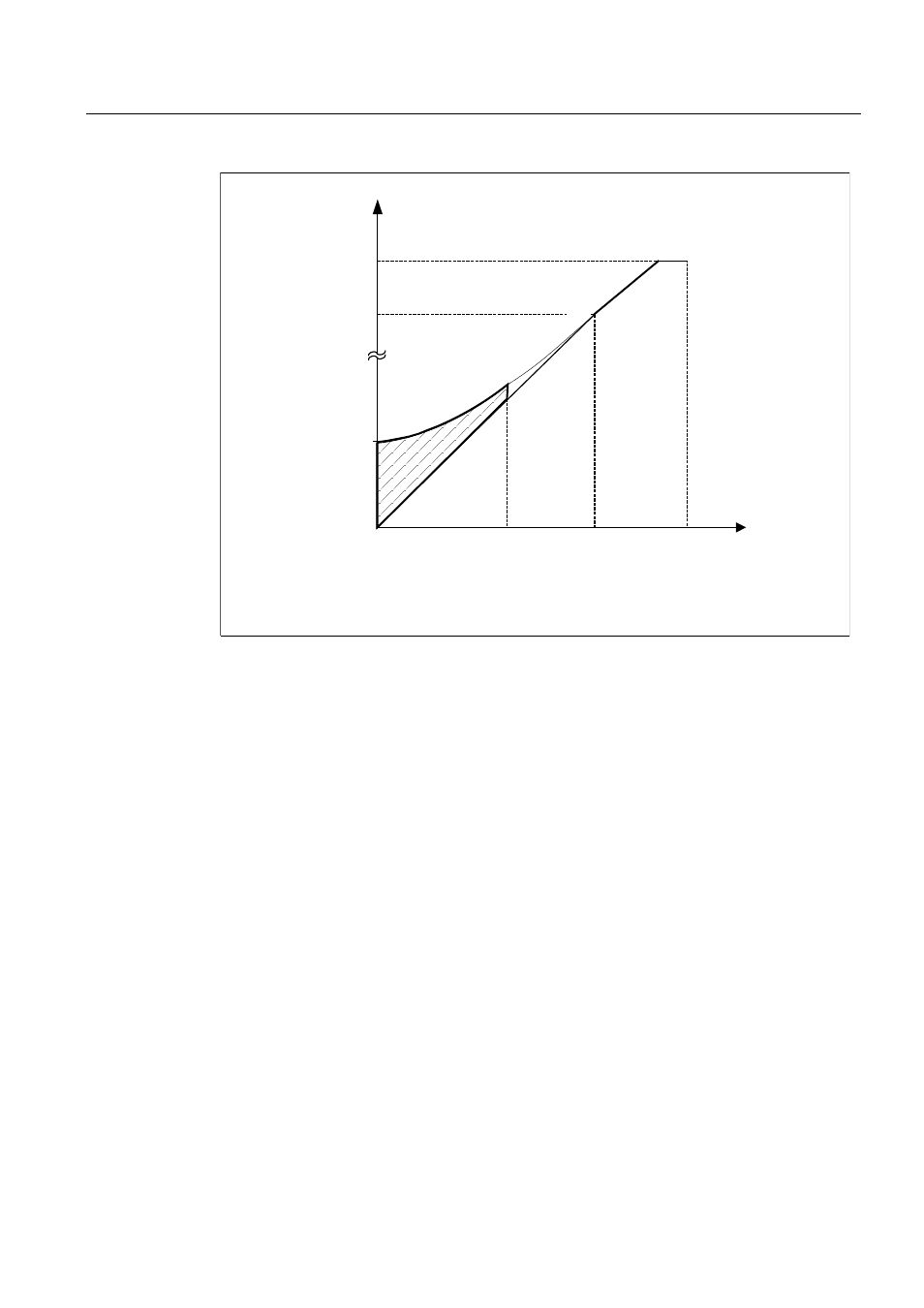

Figure 5-4
Voltage boost at acceleration (example: p1300 = 0 and p1311 > 0)
Function diagrams (see SINAMICS S List Manual)
● 6300 V/f characteristic and voltage boost
Overview of key parameters (see SINAMICS S List Manual)
● p0304[0...n] Rated motor voltage
● p0305[0...n] Rated motor current
● r0395[0...n] Stator resistance current
● p1310[0...n] Voltage boost permanent
● p1311[0...n] Voltage boost at acceleration
● r1315 Voltage boost total
