Function modules
7.9 Basic positioner
Drive Functions
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
277
Note
Continuous acceptance p2649 = 1 can only be set with free telegram configuration
p0922 = 999. No relative positioning is allowed with continuous acceptance.
The direction of positioning can be specified using p2651 (positive direction specification)
and p2652 (negative direction specification). If both inputs have the same status, the
shortest distance is traveled during absolute positioning (p2648 = "1") of modulo axes
(p2577 = "1").
To use the positioning function, the drive must be in operating mode (r0002 = 0). The
following options are available for starting positioning:
● p2649 is "1" and positive edge on p2647
● p2649 is "0" and p2647 is "1"
– positive edge on p2650 or
– positive edge on p2649
9DOLGVHWWLQJYDOXHV
$YDLODEOHVHWWLQJYDOXHV
S0',YBVHW
5(6(7 6(7
[ \
6HWVHWSRLQWDFFHSW
SSRVLWLRQLQJW\SH
S 'LUHFWLRQVHOHFWLRQSRVLWLYH
&RQWLQXRXVWUDQVIHU
12UHODWLYHSRV
32:(521
S 'LUHFWLRQVHOHFWLRQQHJDWLYH
S0',VBVHW
SWUDQVIHUW\SH
SVHWSRLQWWUDQVIHUHGJH
S0',VHOHFWLRQ
S
S
S0',DBVHW
S
S0',DBVHW
S
)L[HGSRVLWLRQVHWSRLQW
)L[HGYHORFLW\VHWSRLQW
$FFHOHUDWLRQRYHUULGH)L[HGVHWSRLQW
'HOD\RYHUULGH)L[HGVHWSRLQW
S'RQRWUHMHFWWUDYHUVLQJWDVN

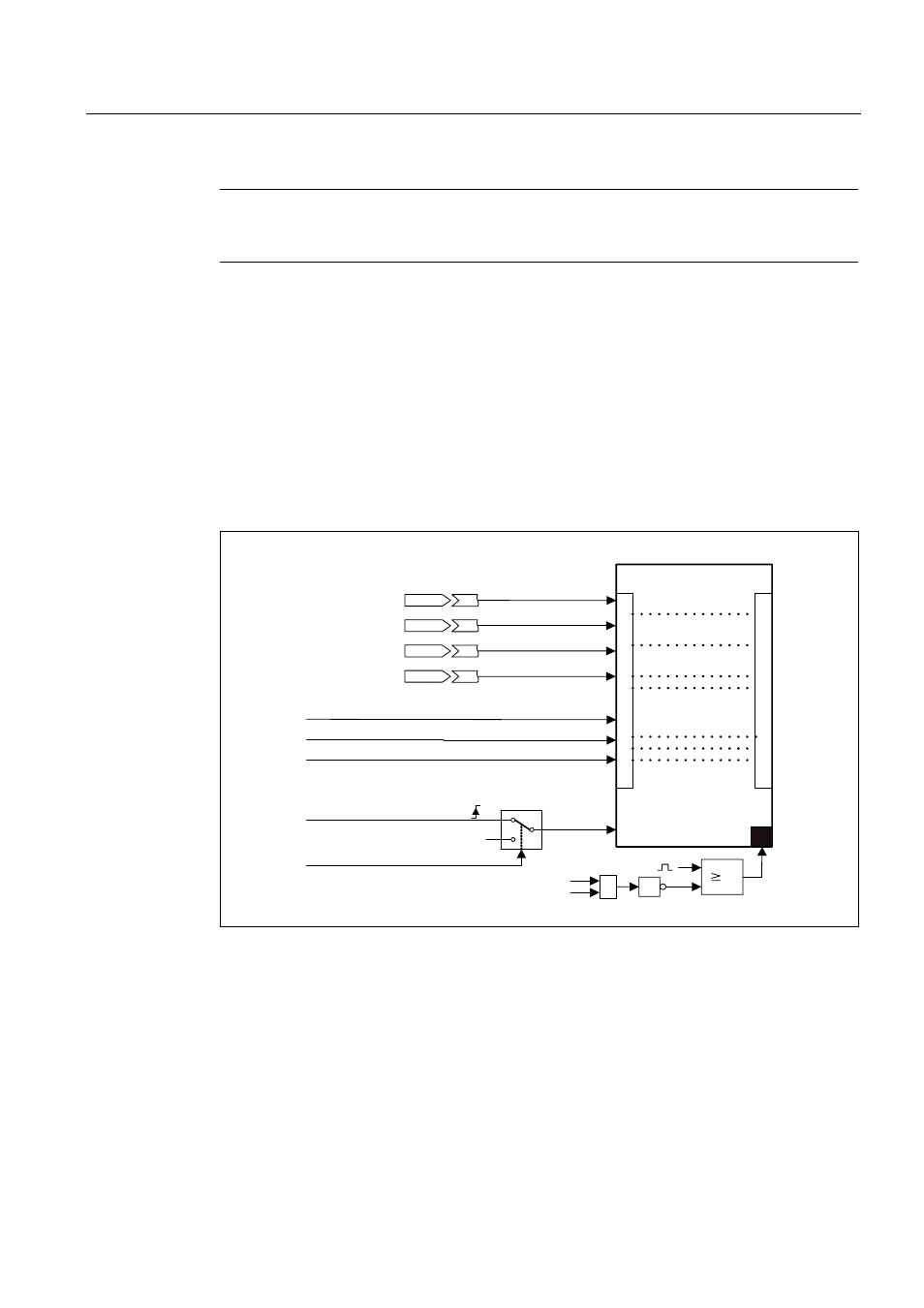

Figure 7-19 Setpoint transfer
MDI mode with the use of PROFIdrive telegram 110.
If the connector input p2654 is preset with a connector input <> 0 (e.g. with PROFIdrive
telegram 110 with r2059[11]), then it will internally manage the control signals "Select
positioning type", "Positive direction selection" and "Negative direction selection". The
following characteristics are evaluated from the value of the connector input:
● xx0x = absolute -> p2648
● xx1x = relative -> p2648
