Extended setpoint channel
2.3 Jog
Drive Functions
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
49
● Jog
● Field bus
– Setpoint via PROFIBUS, for example
● Via the analog inputs of the following exemplary components:
– e.g. Terminal Board 30 (TB30)
– e.g. Terminal Module 31 (TM31)
– e.g. Terminal Module 41 (TM41)
2.3 Jog
Description
This function can be selected via digital inputs or via a field bus (e.g. PROFIBUS). The
setpoint is, therefore, predefined via p1058[D] and p1059[D].
When a jog signal is present, the motor is accelerated to the jog setpoint with the
acceleration ramp of the ramp-function generator (referred to the maximum speed p1082;
see diagram "Function chart: jog 1 and jog 2"). After the jog signal has been deselected, the
motor is decelerated via the set ramp of the ramp-function generator.
CAUTION
The jog function is not PROFIdrive compatible!
6LJQDO
-RJ
6LJQDO
212))
7RWDOVHWSRLQW
HIIHFWLYHU
-RJVHWSRLQW
$FWLYH

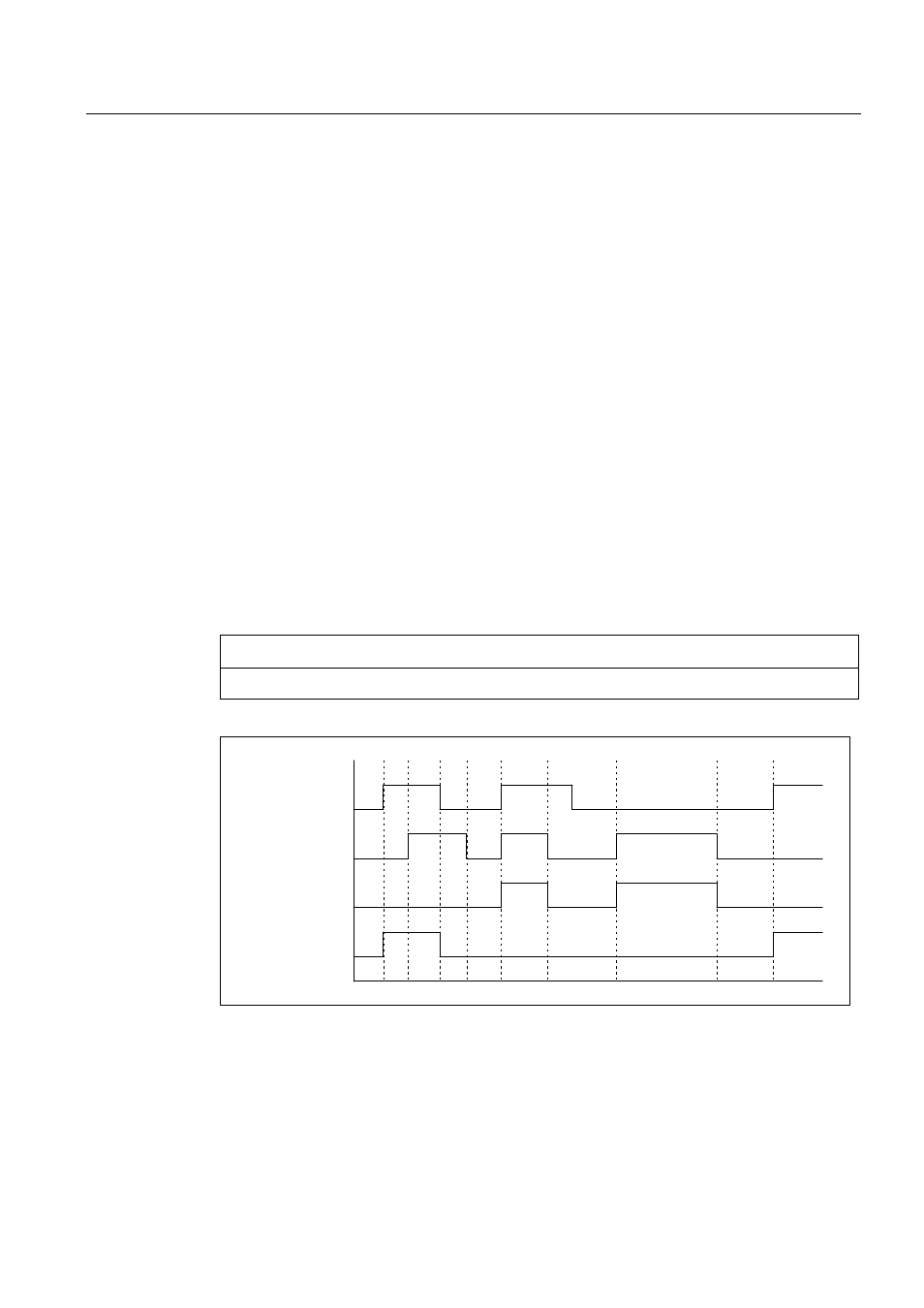

Figure 2-2 Function chart: jog and OFF1
