Communication PROFIBUS DP/PROFINET IO
10.2 Communication via PROFIBUS DP
Drive Functions
430
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4

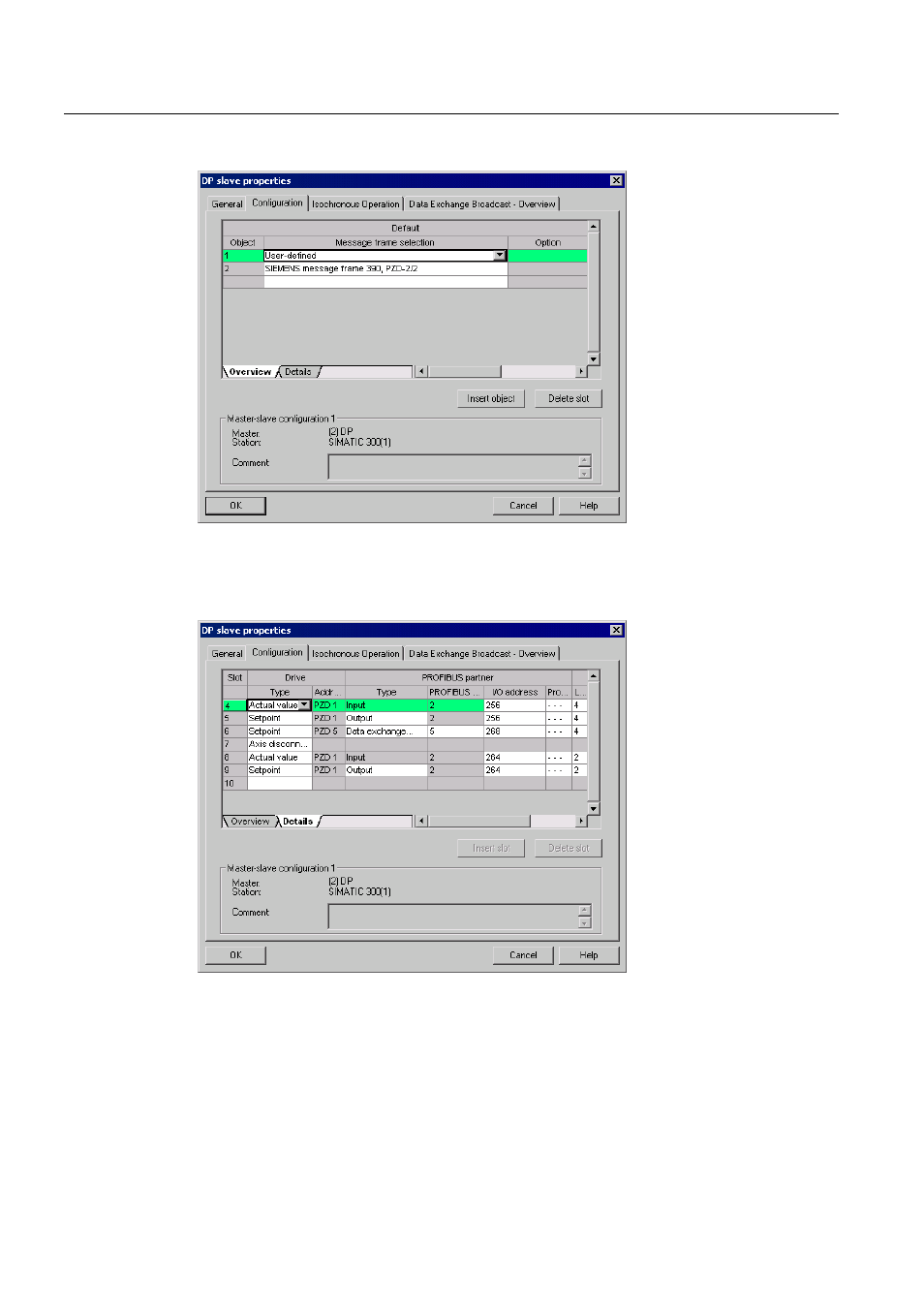

Figure 10-38 Telegram assignment for slave-to-slave communication
10. The details after the creation of the slave-to-slave communication link for the drive object
of the CU320 are as follows:
Figure 10-39 Details after the creation of the slave-to-slave communication link
11. You are required to adjust the standard telegrams accordingly for every DO (e.g. drive
object) of the selected CU that shall actively participate in slave-to-slave communication.
