Basic information about the drive system
12.1 Parameter
Drive Functions
468
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
– DDS: Drive Data Set
The drive data set contains the parameters for switching between different drive
control configurations.
The CDS and DDS can be switched over during normal operation. Further types of data set
also exist, however these can only be activated indirectly by means of a DDS switchover.
● EDS Encoder Data Set
● MDS Motor Data Set
''6'ULYH'DWD6HW
&'6&RPPDQG'DWD6HW
7HUPLQDO0RGXOH
2SWLRQ%RDUG
,QIHHG
'ULYHQ
'ULYH
'ULYH
'DWDVHWLQGHSHQGHQW
GULYHSDUDPHWHUV
0RWRUVHOHFWLRQ
(QFRGHUVHOHFWLRQ
(QFRGHUVHOHFWLRQ
(QFRGHUVHOHFWLRQ
('6(QFRGHU'DWD6HW
0'60RWRU'DWD6HW

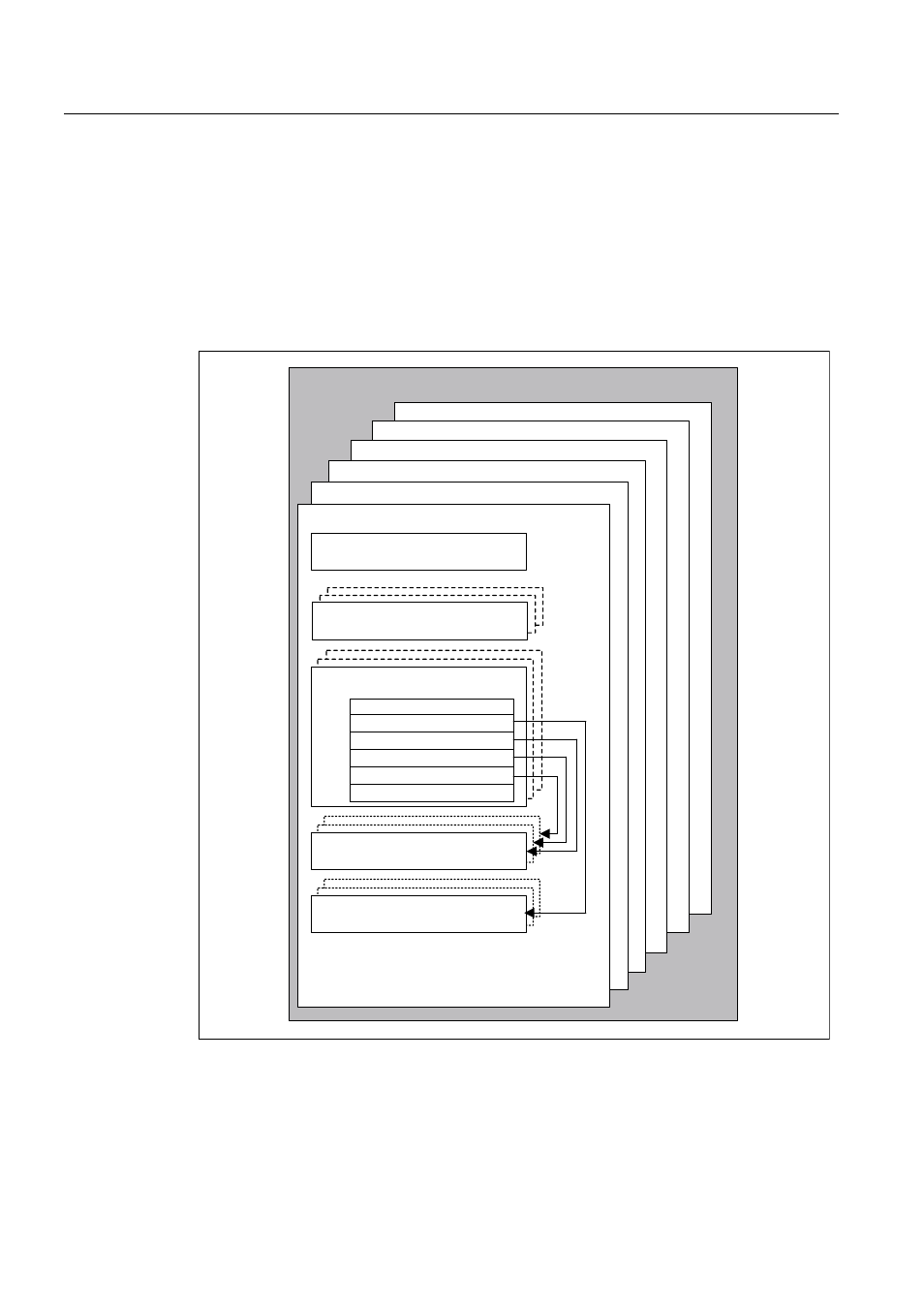

Figure 12-2 Parameter categories
