Communication PROFIBUS DP/PROFINET IO
10.1 Communications according to PROFIdrive
Drive Functions
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
391
,QGLUHFWPHDVXULQJ
V\VWHPPRWRUHQFRGHU
&ORFN
F\FOH
$GGLWLRQDO
PHDVXULQJV\VWHP
&ORVHG
ORRSFXU
UHQWFRQWU
6SHHG
FRQWURO 0DVWHUZLWKWKH
IXQFWLRQ0RWLRQ
&RQWUROZLWK
352),%86
3RVLWLRQFRQWUROORRS
*B;,67
162//B%
*
* 0 a

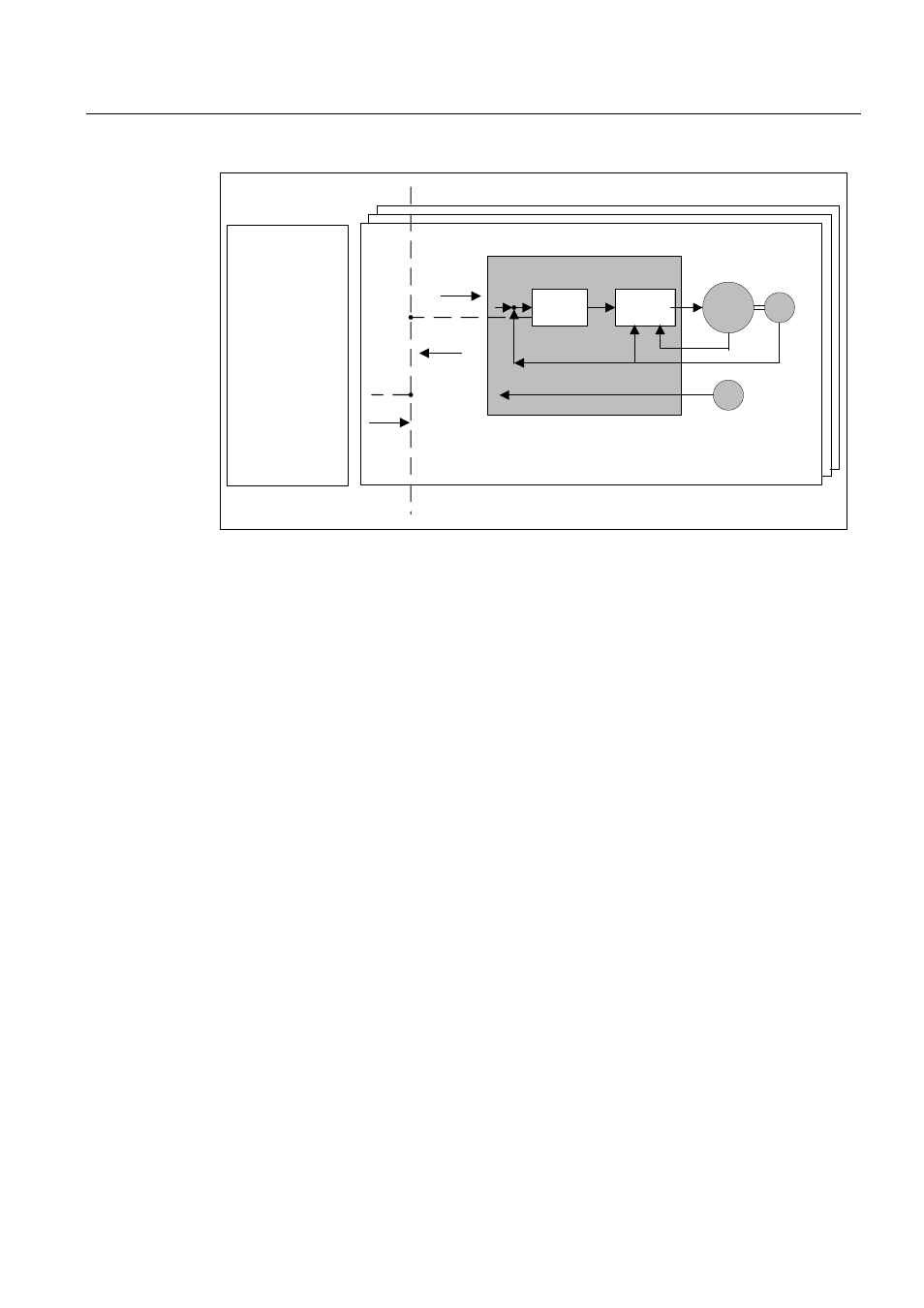

Figure 10-18 Overview of "Motion control with PROFIBUS" (example: master and 3 slaves)
Structure of the data cycle
The data cycle comprises the following elements:
1. Global Control telegram (PROFIBUS only)
2. Cyclic part
– Setpoints and actual values
3. Acyclic part
– Parameters and diagnostic data
4. Reserve (PROFIBUS only)
– Transmission of token (TTH).
– For searching for a new node in the drive line-up (GAP)
– Waiting time until next cycle
