Basic information about the drive system
12.5 Inputs/outputs
Drive Functions
488
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
● 9562 Bidirectional digital inputs/outputs (DI/DO 10 and DI/DO 1)
● 9661 Bidirectional digital inputs/outputs (DI/DO 0 and DI/DO 1)
● 662 Bidirectional digital inputs/outputs (DI/DO 2 and DI/DO 3)
12.5.3 Analog inputs
+DUGZDUHVPRRWKLQJ
˩V
6FDOLQJ
S>@
6FDOLQJ
6PRRWKLQJ
S>@
:LQGRZ
S>@
(QDEOHG
2IIVHW
S>@
\ [LI
_\[_!S
HOVH\ \ROG
;
$,
;
$
'
[ [ [
\
\
\
>@
U>@
S>@
S>@
S>@ S>@
S
S>@
S>@
>9@
U>@
S>@
\ [

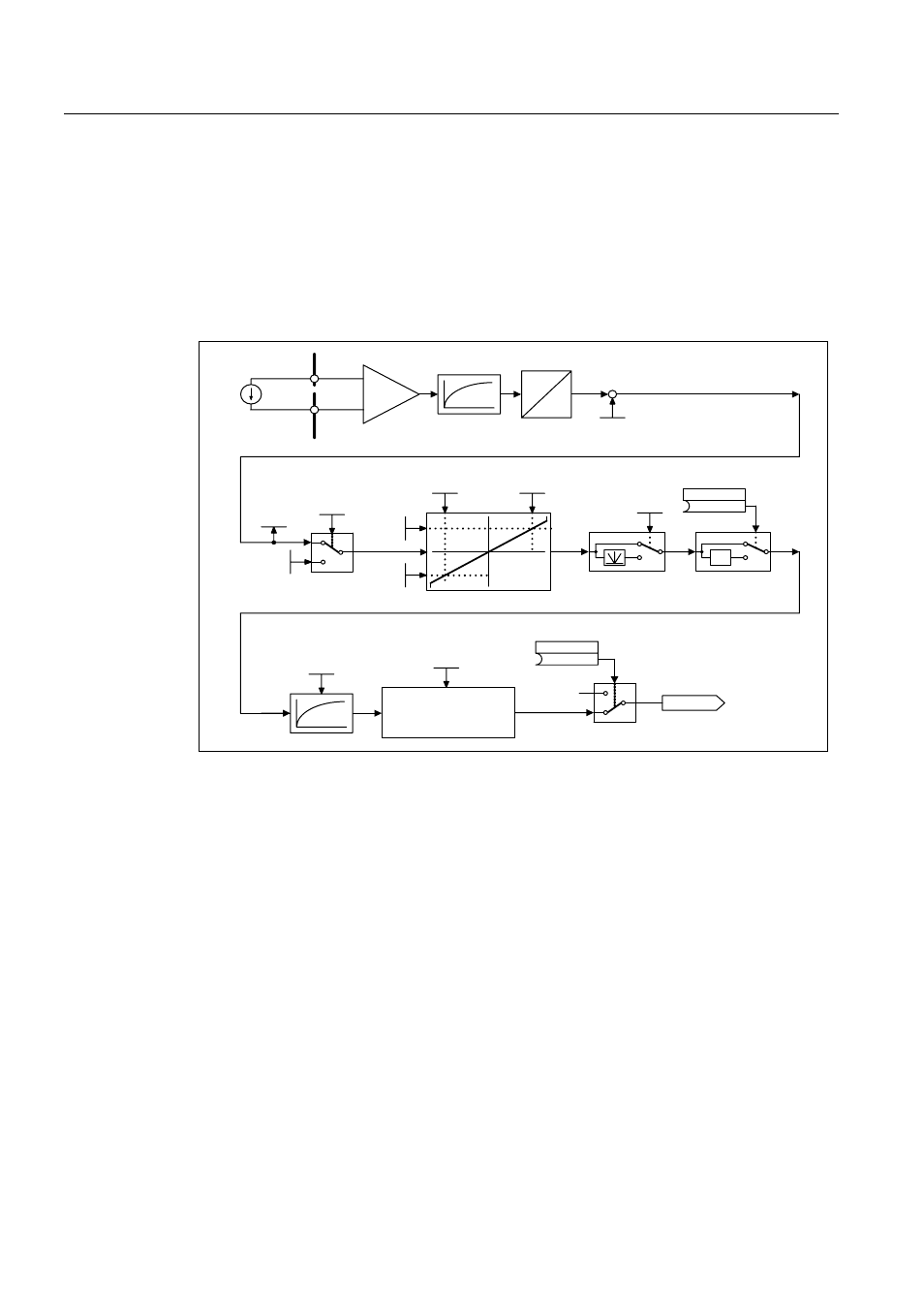

Figure 12-12 Analog inputs: Signal processing using AI0 of the TB30
Properties
● Hardware input filter set permanently
● Simulation mode parameterizable
● Adjustable offset
● Signal can be inverted via binector input
● Adjustable absolute-value generation
● Noise suppression (p4068)
● Enabling of inputs via binector input
● Output signal available via connector output
● Scaling
● Smoothing
