Basic information about the drive system
12.10 Rules for wiring with DRIVE-CLiQ
Drive Functions
518
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
Chassis
0RWRUFDEOH (QFRGHUFDEOH
;
;
&RQWURO
8QLW
3RZHU0RGXOH&KDVVLV
; ;
60& 70
;
'5,9(&/L4

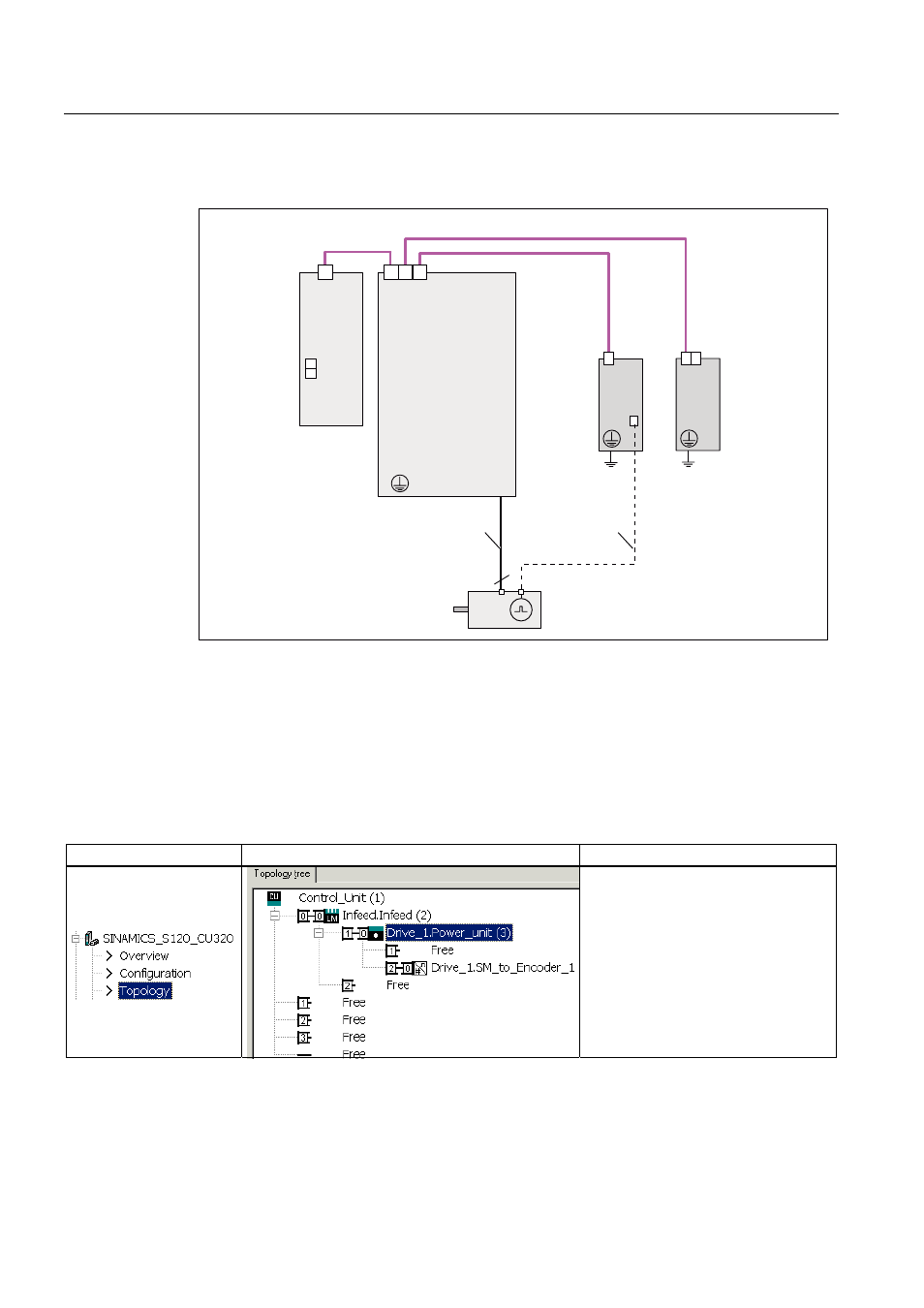

Figure 12-29 Wiring example for Power Modules Chassis
12.10.6 Changing the offline topology in STARTER
The device topology can be changed in STARTER by moving the components in the
topology tree.
Table 12-21 Example: changing the DRIVE-CLiQ topology
Topology tree view Comment
Select the DRIVE-CLiQ component.
