Communication PROFIBUS DP/PROFINET IO
10.1 Communications according to PROFIdrive
Drive Functions
344
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
Application class 2 (Standard drive with technology function)
The total process is subdivided into a number of small subprocesses and distributed among
the drives. This means that the automation functions no longer reside exclusively in the
central automation device but are also distributed in the drive controllers.
Of course, this distribution assumes that communication is possible in every direction, i.e.
also cross-communication between the technology functions of the individual drive
controllers. Specific applications include e.g. setpoint cascades, winders and speed
synchronization applications for continuous processes with a continuous web.
7HFKQRORJ\
$XWRPDWLRQ
&ORVHG/RRS6SHHG&RQWURO
7HFKQRORJ\
'ULYH
&ORVHG/RRS6SHHG&RQWURO
7HFKQRORJ\
'ULYH
&ORVHG/RRS6SHHG&RQWURO
7HFKQRORJ\
'ULYH
7HFKQRORJLFDO5HTXHVWV6HWSRLQWV 7HFKQRORJLFDO$FWXDO9DOXHV3URFHVV6WDWHV
3HULSKHUDOV,2 3HULSKHUDOV,2 3HULSKHUDOV,2
(QFRGHU (QFRGHU (QFRGHU
352),%86352),1(7
M M M

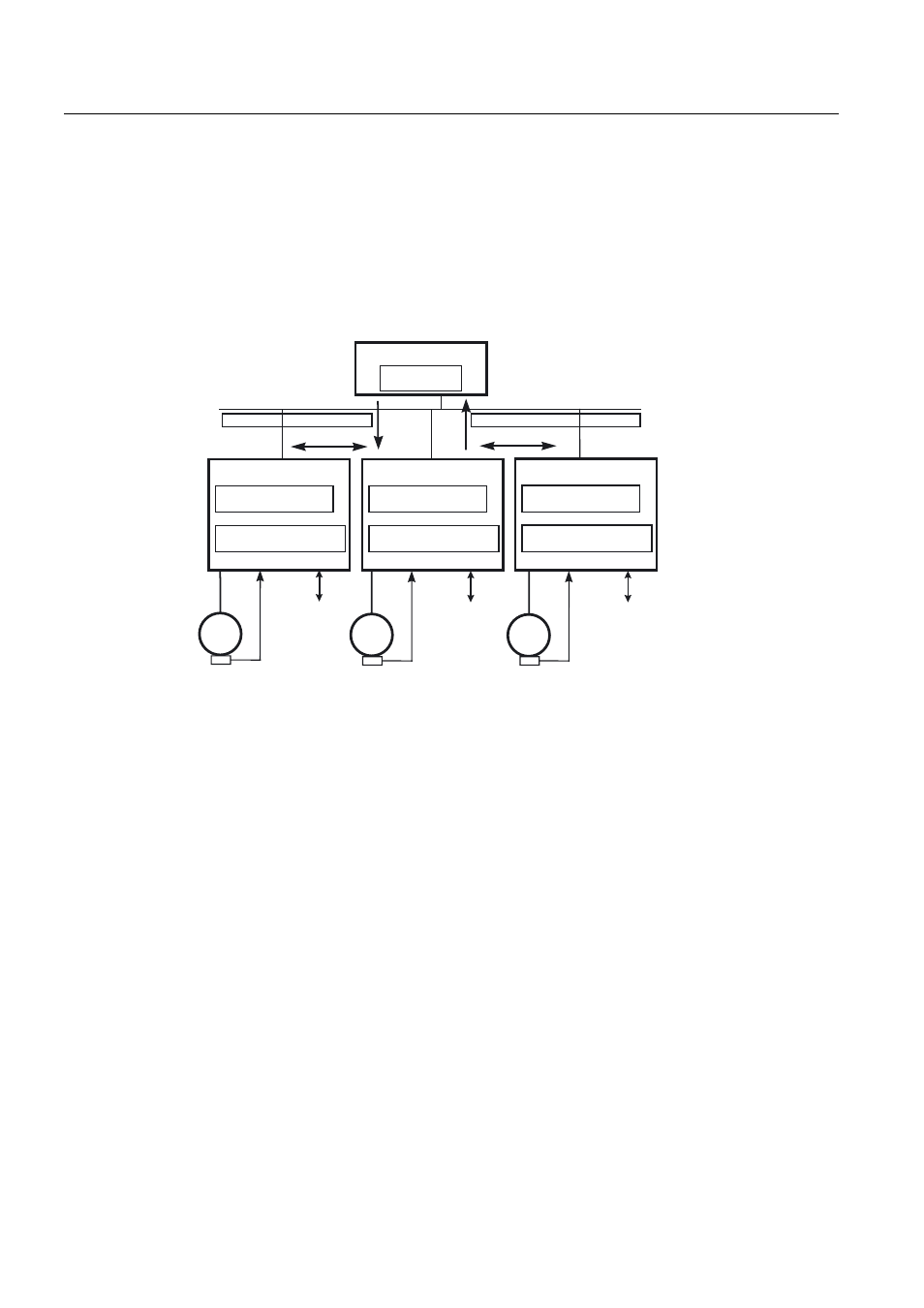

Figure 10-2 Application class 2
